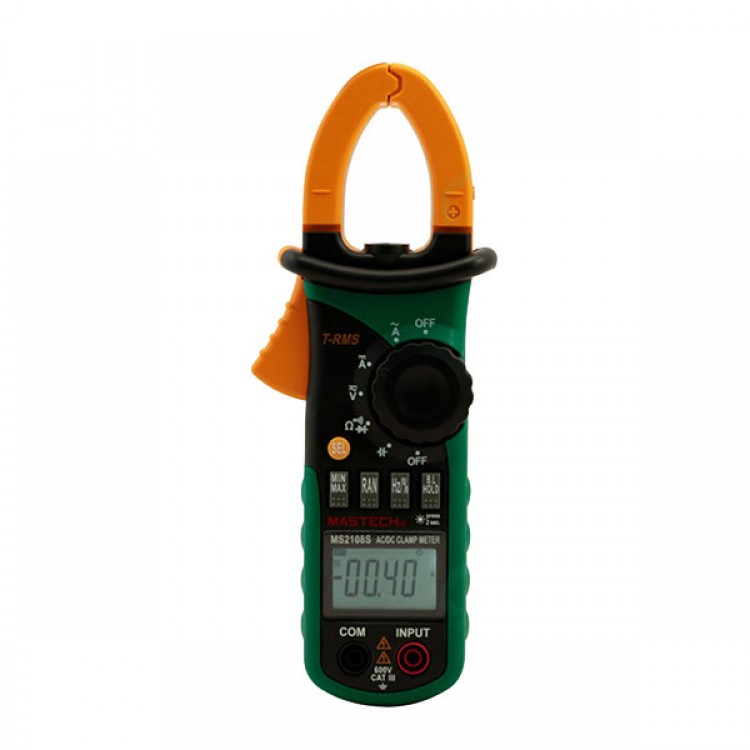

MASTECH MS2108S True RMS Digital AC DC Current Clamp Meter Multimeter

MASTECH MS2108S True RMS Digital AC DC Current Clamp Meter Multimeter

Features:
- Conform to the IEC61010-1 & IEC61010-032 standard
- Double insulation (protection class 600V CAT III and pollution degree 2)
- Inrush function
- The over-molding rubber case protects the meter to be stronger
- Clamp on frequency function
- Auto range/manual range
- Data hold
- Maximum/minimum value measurement
- Auto power off
- Back light
- Jaw lighting

Specifications:
- Display: 6600 counts
- DC current: 66A/600A ±3.0%
- AC current: 66A/600A ±3.0%
- DC voltage: 660m/6.6/66/600V ±0.8%
- AC voltage: 660m/6.6/66/600V ±1.0%
- Resistance: 660/6.6k/66k/660k/6.6MΩ±1.0%, 66MΩ ±2.0%
- Capacitance: 6.6µ/66µ/660µ/6.6m/66mF±4.0%
- Frequency: 10 to 10kHz±2.0% (from test terminal)
- Frequency: 10 to 1kHz±2.0% (from current clamp)
- Duty cycle: 10% ~ 95%±3.0%
- Continuity checking with buzzer
- Diode test
- MAX. Diameter for conductor: 26mm
- Power: 1.5V (AAA) x 3 (not included)
- Size: 208mm x 78mm x 35 mm

Package Includes:
- 1 * Digital Clamp Meter
- 1 *Carrying Case
- 1 * Test Leads
