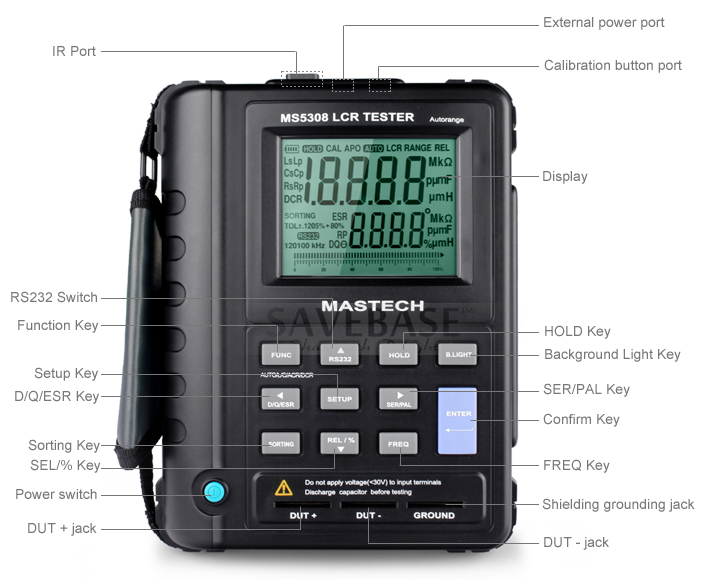

Mastech MS5308 LCR Meter Portable Handheld Auto Range LCR Meter High-Performance 100Khz
Description:
- This MS5308 LCR digital bridge meter is a professional instrument for measuring inductance, capacitance and resistance. It has many features, such as automatic identification, automatic measurement range, high measurement accuracy and speed, wide measuring range and so on.
- An ordinary multimeter only provides DC mode for resistance measurement, while this MS5308 provides both AC and DC measurement modes. A variety of test frequencies up to 100Khz can be provided for inductance, capacitance and resistance in AC mode to meet the actual needs better.
Key Features:
- Auto LCR smart check and measurement
- 19,999/1,999 dual LCD display
- Series/Parallel modes are selectable
- LsLp/Cs/Cp with D/Q/θ/ESR parameters
- Support DCR mode
- Five different test frequency are available 100/120/1k/10k/100k Hz
Test rang (ex.F=1K Hz)
L: 200uH~~2000H
C:2000pF~~2.0mF
R:20.000Ω~~200.0MΩ
- PowerSupply:1.5×8 AA battery and 1×1604A6LR6(9V)
- Dimension: 224mm×172mm×59mm
Freq./Z |
0.1-1Ω |
1-10Ω |
10-100kΩ |
100k-1MΩ |
1M-20MΩ |
20M-200MΩ |
DCR |
1.0%+5d |
0.5%+5d |
0.3%+5d |
0.5%+5d |
1.0%+5d |
2.0%+5d |
100/120Hz |
1.0%+5d |
0.5%+5d |
0.3%+5d |
0.5%+5d |
1.0%+5d |
2.0%+5d |
1kHz |
1.0%+5d |
0.5%+5d |
0.3%+5d |
0.5%+5d |
1.0%+5d |
5.0%+5d |
10kHz |
1.0%+5d |
0.5%+5d |
0.3%+5d |
0.5%+5d |
1.0%+5d |
|
100kHz |
2.0%+5d |
1.0%+5d |
1.0%+5d |
|
