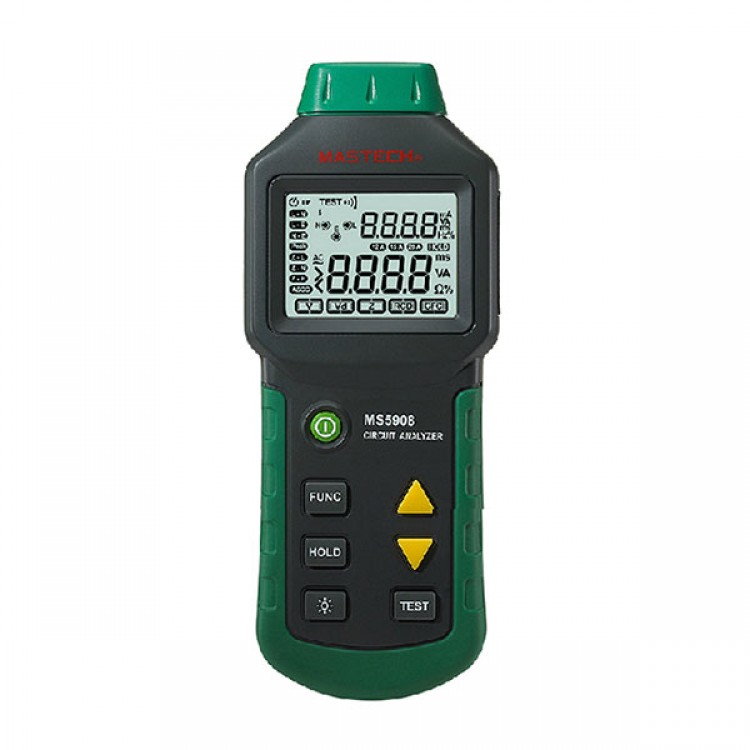

Mastech MS5908 Circuit Analyzer TRMS AC Low Voltage Distribution Line Fault Tester RCD GFCI Sockets Testing
Instructions
This circuit analyzer is a special test device designed for AC low-voltage distribution line quick fault location. With simple operation, accurate measurement and other features, it can detect multiple problems on a line, such as causing to electric shock, electrical fire, abnormal operation of equipment, etc.
Specifications:
TRMS measuring AC voltage
Artificial load 12A, 15A, 20A measuring line drop
Measuring phase voltage, neutral line (zero line) voltage to earth, peak voltage, frequency
Measuring phase (live line), neutral line (zero line), earth line conductor impedance
Identifying 3-wire socket connection mode (zero for left and live for right, having earth line or not)
Test the reliability of residual current device (RCD) and response action time
Test the reliability of GFCI action and response action time
Backlight function and data hold function
Package Include:
1 X MS5908 Circuit Analyzer
1 X power plug (Optional)
1 X black bag
Power plug: US plug/AU Plug/EU Plug/UK Plug
