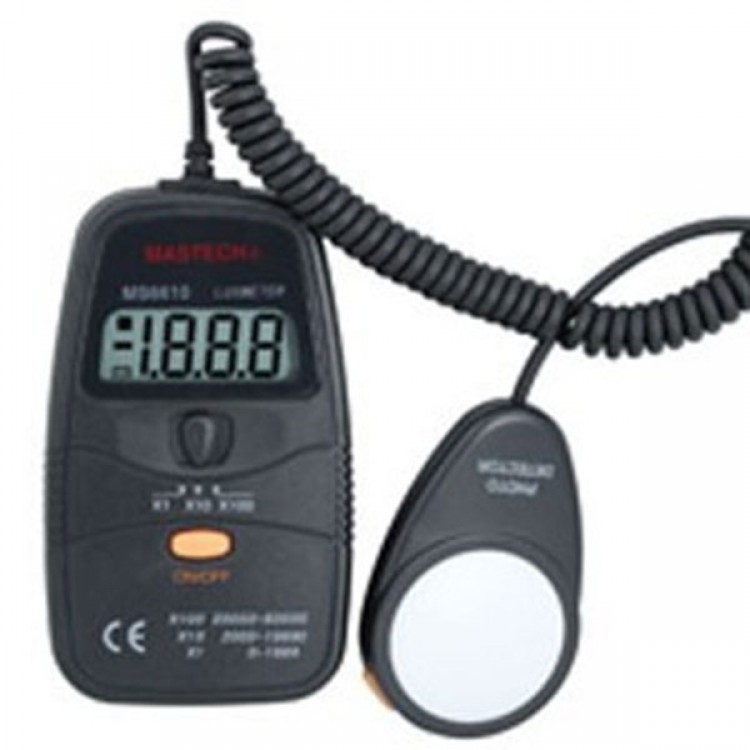

MASTECH MS6610 Digital Lux Meter Light Meter Luxmeter 0~50000LUX Illuminometer
Features:
* Precise and easy readout.
* High accuracy and wide measurement range.
* LSI-circuit use provides high reliability and durability.
* In build LOW BATTERY indicator.
* LCD display allows clear read out even at bright places.
* LCD display provides low power consumption.
* Compact, lightweight, and excellent operation.
* Separate PHOTO DETECTOR allows user take measurements at an optimum position.
* Data Hold function for holding measuring values.
|
Range |
Resolution |
accuracy |
|
0-1,999 Lux |
1 Lux |
±(5%+2d) |
|
2,000-19,990 Lux |
10 Lux |
±(5%+2d) |
|
20,000-50,000 Lux |
100 Lux |
±(5%+2d) |
Specifications:
Operating Temperature:0° C to 40° C≤80% RH, non-condensing
Storage Temperature:-10° C to 60° C ≤70% RH, battery removed
Operating principle: dual slop integration
Sample Rate: 2 times/sec for digital data
Display: 3 1/2 digits LCD Display with max. reading 1999
Over-range Display: "1" is displayed.
Power Supply: DC 9V battery (NEDA 1604 6F22 006P).
Low Battery Indicator
Photo Detector Lead Length: 150cm(approx.)
Photo Detector Size: 83x52x20.5mm
Dimension: 125.5(L)x72(W)x27(H)mm
Weight: 140g approx.
Accuracy:
±(% of reading + number of digits) at 18° C to 28° C (64° F to 82° F) with relative humidity to 80%.
Package includes:
1 * MS6610 Digital Luxmeter
1 * User manual
