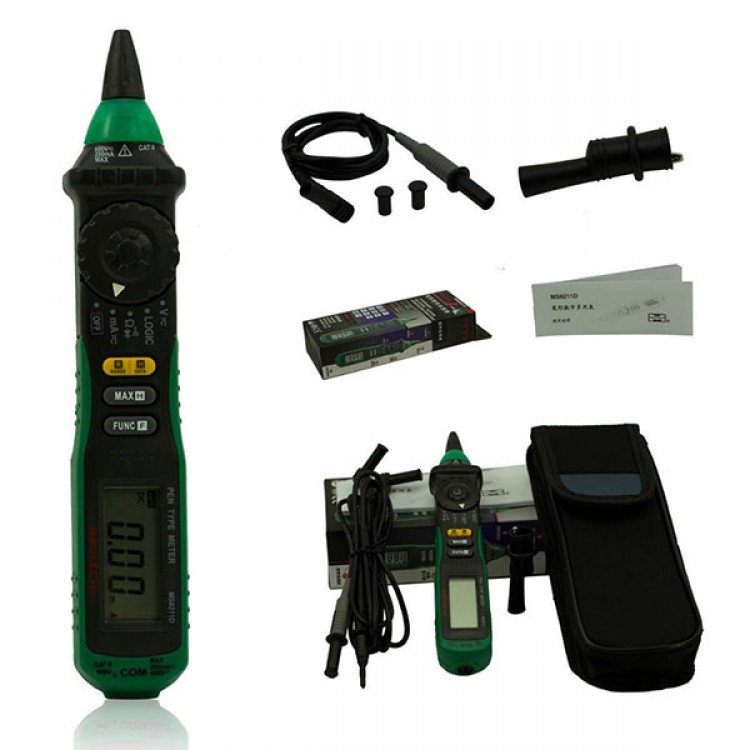

MASTECH MS8211 Pen Shape Multimeter Non Contact Voltage Detector Alarm

MASTECH MS8211 Pen Shape Multimeter Non Contact Voltage Detector Alarm

Description
- This meter is a portable professional measuring instrument with beautiful LCD digital display, the user easy reading.
- Switch for easy one-hand operation measurement, with overload protection and low battery indication, suitable for factories, schools, fans and families.
- Non-contact detection of AC voltage detection function to facilitate detection sockets, wires, etc. are charged.
- This instrument has autoranging and manual ranging.
- This instrument has an automatic shutdown feature.
- This meter has kept hold function and maximum measurements.
- When in use, the display shows the measured value of the instrument and the unit symbol.
- DATA-H button: for switching the reading hold function.
- MAX.H button: for switching the maximum measuring and hold function.
- Switch: used to select the function and range.
- Probe: V / Ω / / file input and AC voltage detector.
- COM jack: common terminal jacks.
- LCD Display: In the V / Ω / / file used to display the measurement results.
- LED indicator: In TEST file, used to indicate the status and results of the AC voltage detection probe.
- Rotating probe holder: used to select the instrument or probe precession.
- Protection ring: to ensure the ring after this hand from the probe.
- Sensitivity adjustment knob: for AC voltage detection sensitivity adjustment.

Features:
Maximum Display: 1999
Outsourcing overmolding rubber sleeve make the instrument more durable shell
Automatic and manual range options
Maximum hold function * Data hold function
Auto power off function
Continuity test
Diode test
Non-contact voltage detection
Can detect a specific frequency alternating voltage
Voltage detection sensitivity adjustable
Non-contact voltage detection alarm sound and light

Technical parameters:
DC voltage measurement: 200m/2/20/200/600V ± 0.7%
AC voltage measurement: 200m/2/20/200/600V ± 0.8%
Resistance measurement: 200/2k/20k/200k/2MΩ/20MΩ ± 1.2%
Power: 1.5V (AAA) × 2
Specification
Instrument should be a year for the period, at 18Celsius ~ 28Celsius, relative humidity less than 75% under the conditions of re-calibrated.

Summary
Auto range and manual range.
Measuring between the earth and the end of the maximum allowed voltage: 600V DC or AC
Working height: max 2000m
Display: LCD display, character height 20mm.
Maximum display: 1999 (ie, three and a half).

Attachment
Table pen rating: 600V 10A a
Test folder level: 600V 10A a
Battery 1.5V, AAA two
Instructions a
