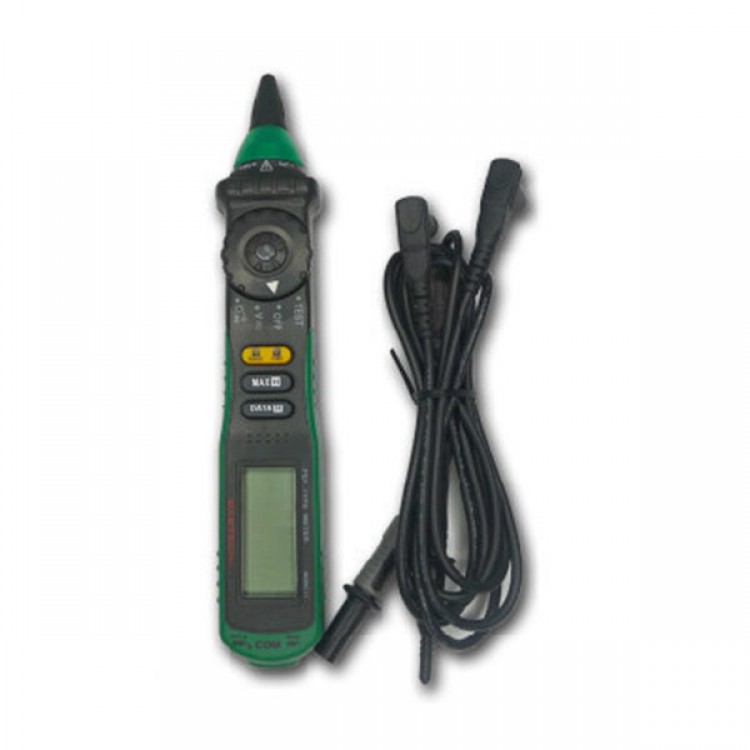

Mastech MS8211D Pen-type Digital Multimeter Logic Level Test Auto-ranging Current Measurement
Description:
- The Mastech MS8211D is a pen-type digital multimeter with many functions including measurement of AC/DC voltage and current, resistance, diode,
- continuity and logic test. It is equipped with one excellent cloth bag for conveniently-carrying.
- With maximum value measuring and holding, auto range switching, retractable tip and built-in resettable fuse, this portable professional measuring instrument is ideal for use in the fields, workshop, school and home applications.
Features:
- Perform measurements of AC/DC voltage and current, resistance, diode, continuity and logic test.
- LED indicator at logic test range.
- Provided with one excellent cloth bag for conveniently-carrying.
- The meter has both manual range and auto range switching.
- Various accessories and pen-type for one-hand operation.
- Retractable tip for safe storage.
- Data holding and maximum value measuring and holding.
- With handsome LCD and automatic indication of functions and unit symbols.
- Auto power off and low battery indication.
- Built-in resettable fuse.
- Full overload protection and dual insulation protection.
- Over-molding rubber case, shake-proof, skid-proof and good touch-feeling.
Specifications:
- General specifications:
- Operating temperature: 0~40 Celsius Degree, 32~122 Fahrenheit (<80% RH, <10 Celsius Degree - non-condensing)
- Storage temperature: -10~50 Celsius Degree, 14~122 Fahrenheit (<70% RH, battery removed)
- Max. voltage between terminals & earth: 600V DC or AC
- Display: 20mm LCD
- Max. displayed value 1999
- Polarity indication: "-" indicates negative polarity.
- Over-range indication Display "OL"
- Sampling time: Approx. 0.4 second
- Auto power off time: 15 min.
- Power supply: 2 * 1.5V AAA battery (not included)
- Multimeter size: 20.8 * 3.8 * 2.9 cm / 8.2 * 1.5 * 1.14in
- Multimeter weight: 100g / 3.54oz
- Package size: 21 * 8 * 4cm / 8.27 * 3.15 * 1.57in
- Package weight: 276g / 9.75oz
- Measurement specifications (accuracy):
- DC Voltage 200mV/2V/20V/200V/600V ±0.7%
- AC Voltage 200mV/2V/20V/200V ±0.8%
- 600V ±1.0%
- Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±1.0%
- DC Current 20mA/200mA ±1.5%
- AC Current 20mA/200mA ±2.0%
Package including:
- 1 * Digital Multimeter
- 1 * Test Lead
- 1 * Test Wire
- 1 * Test Clip
- 1 * Instruction Manual
