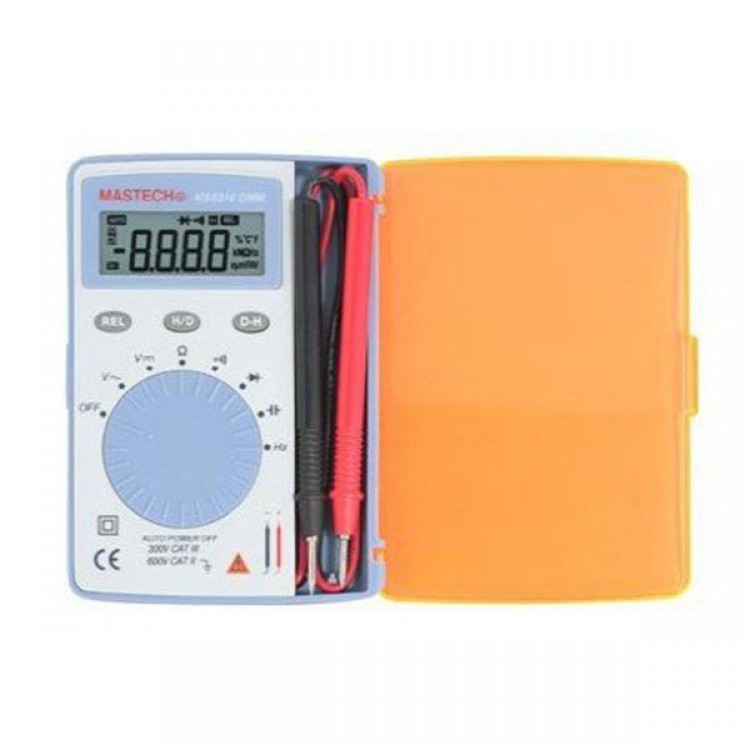

MASTECH MS8216 Mini Extra Thin Auto Range Digital Multimeter With Resistance Capacitance Frequency Tester 4000 Counts
Description
MS8216 notebook type automatic range small, portable multimeter
Decorate a process: installation project
Work style: digital display
Accuracy: three and a half
Brand: shenzhen huayi
Product description:
Ultra thin gauges
Automatic range
Keeping data
Relative measurement
Automatic shutdown
Display: display number 3999, biggest word 10 mm high
Dc voltage: 0.4/4/40/400/600 v + / - 0.7%
Ac voltage: 4/40/400/600 v + / - 0.8%
Resistance: 400/4 400 k / 4 k / 40 k/m Ω + / - 1.2%; 40 m Ω plus or minus 2.0%
Capacitance: 4 n / 400 n/n / 4 u / 40 mu / 200 u F + / - 3.0%
Frequency: 10/100/1 k / 10 k / 100 KHZ plus or minus 2.0%
Duty ratio: 0.1% ~ 99.9% plus or minus 3.0%
On and off the test
Diode test
Power supply: 1.5 V (LR44) x 2
Dimension: 110 * 78 * 12 mm
Weight: 80 g
