Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $58.98 | $57.77 | $55.97 | $53.56 | Contact US |

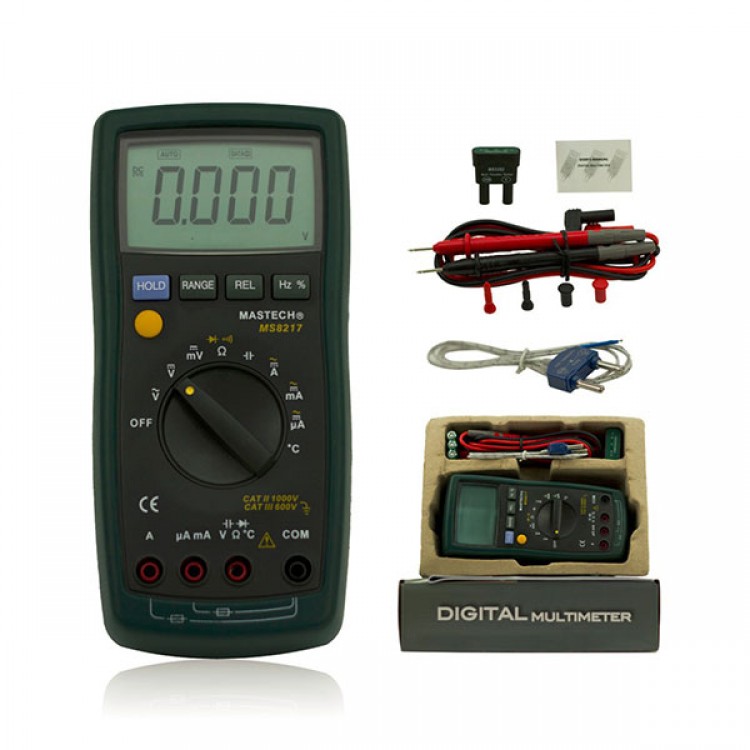

MASTECH MS8217 LCD Auto Range Digital Multimeter DMM Capacitance Temperature Frequency Tester Meter AC DC Voltage 1000V
Features:
Data hold function
Autorange and manual ranging mode
Relative measurement mode
Test AC/DC voltage, AC/DC current, resistance, capacitance, frequency and duty cycle
K-type thermocouple contact temperature measurement
Diode test and continuity check
Specifications:
Environment conditions: 1000V CAT. II and 600V CAT. III
Pollution degree: 2
Altitude: <2000m
Operating temperature: 0 to 40 Centigrade, 32 to 122 Fahrenheit(<80% RH, <10 Centigrade non-condensing)
Storage temperature: -10 to 60 Centigrade, 14 to 140 Fahrenheit(<70% RH, battery removed)
Temperature Coefficient: 0.1(specified accuracy)/Centigrade (<18 centigrade="" or="">28 Centigrade)
MAX. Voltage between terminals and earth ground: 1000V AC rms or 1000V DC
Sample Rate: 3 times/sec for digital data
Display: 3 3/4 digits LCD display
Power source: 3*1.5V AAA battery (not included as the shipment Security requirements)
Dimensions: 185*87*53mm
Package includes:
1 * MS8217 Multimeter
1 * Set test leads
1 * K-type bead thermocouple
1 * User manual
