| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $43.64 | $42.75 | $41.41 | $39.63 | Contact US |
0-3500V Multifunctional Transistor Withstand Voltage Tester (w/ Green Display) for MOSFET Triode LED
$17.73
0-3500V Multifunctional Transistor Withstand Voltage Tester (w/ Red Display) for MOSFET Triode LED
$17.73
0-3500V Multifunctional Transistor Withstand Voltage Tester (w/ Blue Display) for MOSFET Triode LED
$17.73

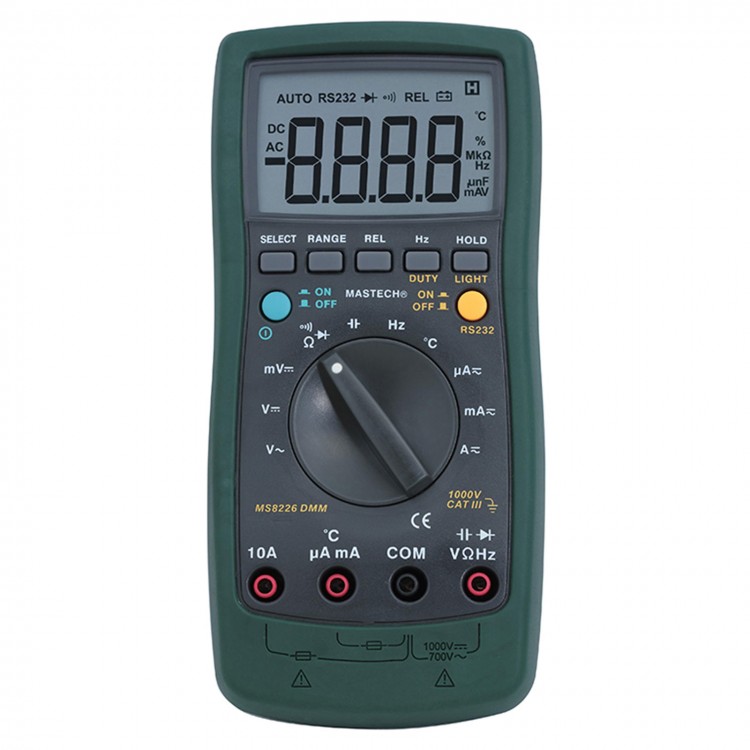

Mastech MS8226 DMM 3 3/4 Digital Multimeter Auto Range Temperature Multimeter Backlight
Description:
• Relative measurement
• Auto power off
• Data hold
• RS232C standard interface for data recording, analyzing, processing and printing the measuring results
• Autorange and manual range
• Back light
DC Voltage 400mV/4V/40V/400V ±0.5% 1000V ±0.8%
AC Voltage 4V/40V/400V ±0.8% 700V ±1.2%
DC Current 400uA/4000uA/40mA/400mA ±1.2% 10A ±2.0%
AC Current 400uA/4000uA/40mA/400mA ±1.5% 10A ±3.0%
Resistance 400ohm/4kohm/40kohm/400kohm/4Mohm ±1.0% 40Mohm ±2.0%
Capacitance 50nF ±5.0% 500nF/5uF/50uF/100uF ±3.0%
Frequency 5Hz~50kHz 50kHz~5MHz ±2.0%
duty cycle 0.1~ 99.9%
Temperature: -20C ~ 1000C ( with suitable probe)
Continuity test
Diode test
Package includes:
1 * Digital multimeter
1 * User Manual
1 * Meter pen
1 * Temperature probe
1 * PC interface cable
1 * Software CD
