Specifications:
- DCV: 0 - 400mV - 4V - 40V - 400V -1000V +/- 0.5%
- ACV: 0 - 400mV - 4V - 40V +/- 0.8%, 400V - 700V +/- 1.0% True RMS
- DCA: 0 - 400uA - 4,000uA +/-1.2%, - 40mA - 400mA -10A +/- 2.0%
- ACA: 0 - 400uA - 4,000uA +/- 1.5%, -10A +/- 3.0%
- Frequency: 5Hz - 50 KHz - 5MHz
- Resistance : 0 ?400 - 4k - 40k - 400k - 4M +/- 1.2%, - 40M ohm +/- 2.0%
- Duty: 0.1 - 99.9%
- CAP: 0 - 5nF - 50nF - 500nF - 5uF - 50uF - 100uF +/- 2.0%
- Temp: Shows in Celsius .-20C to 1,000C +/- 3.0%; -4F to 1832F
- Relative value measurement
- Manual/Auto range select
- RS232 series port
- Over load indication.
- Software included.
- Software sampling time: 3 times per second
- Audible continuity: < 30 ohm
- Diode test: 10mA, 6.0V
- Display: 3 3 / 4 digits with max of 3999
- Back Light for reading in dark
- Battery: 9V x 1,NEDA 1604 / 6F22
- Size: (mm) 195 X 92 X 43
- Weight:> (Lbs) 1.98
Advantage:
- True RMS 3 3/4 digits of auto ranging multimeter is a full features meter for all purposes.
- IT meets IEC-1010-1 ,1000V CAT III standards. Pollution degree is 2.
- It comes in a nice ABS plastic case with windows software for RS232 data download
- Creative design of elegance
- RS-232C interface to computer
- Auto/Manual ranging
- Full protection on all ranges
Package list:

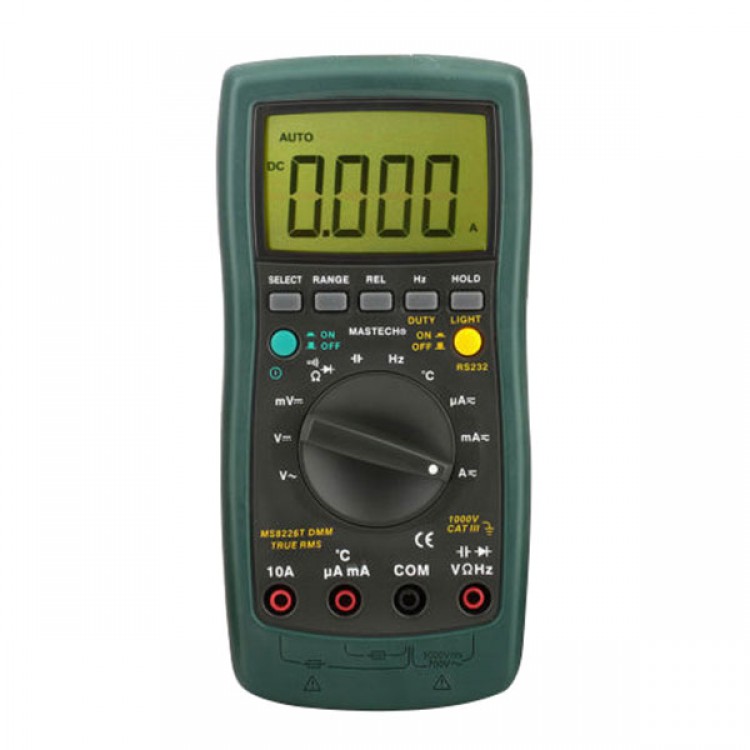

- MASTECH MS8226T
- CD software
- RS232 cable
- Test leads
- Temperature probe
- Manual book
