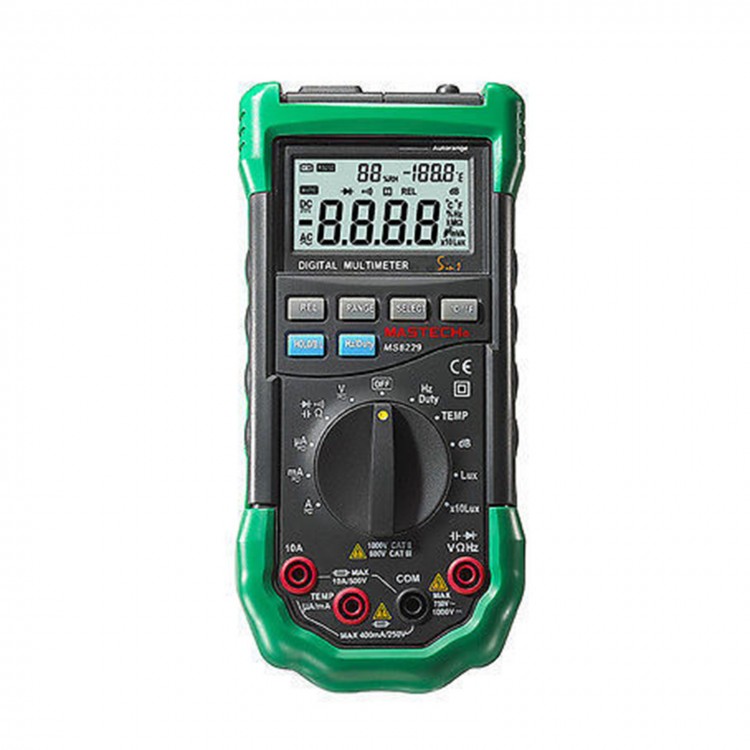

MASTECH MS8229 Environmental Monitoring Instrument Multimeter to Measure the Temperature and Humidity Illumination Noise

MASTECH MS8229 Environmental Monitoring Instrument Multimeter to Measure the Temperature and Humidity Illumination Noise

Description
The instrument is portable, professional measuring instrument, with a large screen LCD digital display (three sets of data display), and back light source, the user easy to read. Single hand operation to facilitate the measurement range switch, with overload protection and low battery indicator. Whether professional, factory, school, lovers or family use, is an ideal multifunctional instrument.
The instrument has the anti table pen plug acousto-optic warning device. This provides more protection for the instrument, so as to avoid misoperation damages instrument.
The 5 1 digital multi tester combined with sound level meter, light intensity meter, thermometer and hygrometer, digital multimeter functions.
Sound level measurement function can be used for noise measurement factory, school, office, airport, family, sound design studio, auditorium, high fidelity checking device.
Optical measurement function is used to measure the site illumination, it is affected by angle of incidence light effect.
Humidity, temperature measurement function is used to measure the humidity, temperature and the temperature of the object.
Digital multimeter for DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, duty ratio measurement and the on-off circuit, diode test.
When in use, the instrument display value and unit symbols of measured.
The instrument has the automatic measurement and manual measurement function.
The instrument has the function of automatic shutdown.
The instrument has the reading to maintain function.
The instrument has the relative measurement function.

Features
Two plastic shell
Automatic range
Data retention
Relative value measurement
HFE testing triode: 0 ~ 1000
Switching test
Diode test
Background light
Automatic shutdown
Display: displays the maximum number of 3999, the words high 14mm

Technical parameters
DC voltage: 0.4/4/40/400/1000V ± 0.7%
AC voltage: 0.4/4/40/400V 750V ± 1.0% ± 0.8%
DC: 400 μ /4000 μ /40m/400mA + 1.2%, 4A/10A + 2.0%
Alternating current: 400 μ /4000 μ /40m/400mA + 1.5%, 4A/10A + 3.0%
Resistance: 400/4k/40k/400k/4M + 1%, 40M + 2.0%
Capacitance: 40n/400n/4 μ /40 μ /100 μ F ± 3.0%
Frequency: 10/100/1k/10k/100kHz ± 2.0%
Duty: 0.1% ~ 99.9% ± 3.0%
Temperature: -20 degrees Celsius 0 degrees ~0 ± 5% ~400 degrees Celsius ~1000 degrees Celsius 400 ± 1% ± 2.0%
Humidity: 20% ~ 95%RH ± 5.0%RH
Illumination: 4000Lux/40000Lux ± 5.0%
Noise: 40 ~ 100dB + 3.5%dB (94dB 1KHz
Sine wave) power: 1.5V (AAA) × 3
Dimensions: 195 x 92 x 55mm
Weight: About 400g (including battery)
Annex
pen grade: 1000V 10A a
thermocouple type K TP01 Fu
manual a
