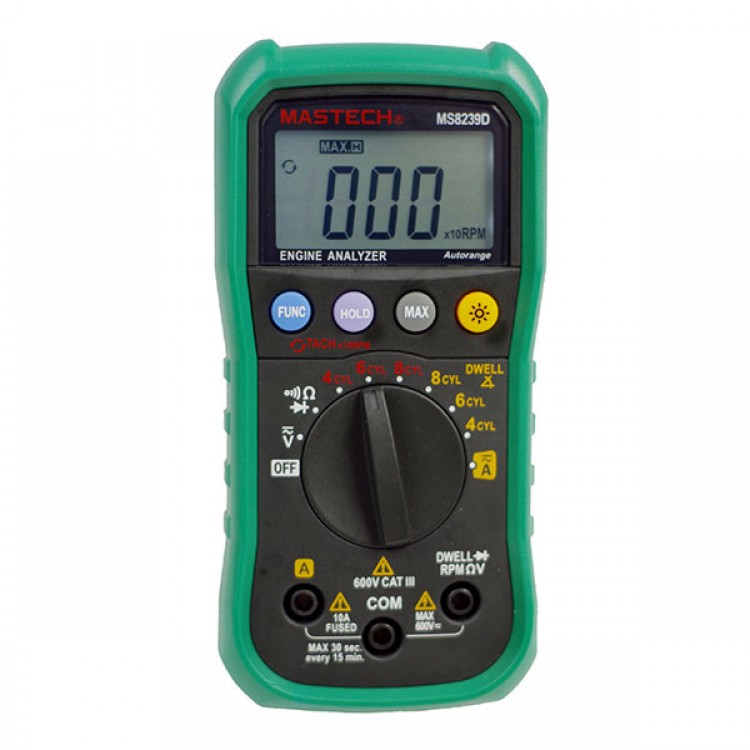

MASTECH MS8239D Digital Automotive Multimeter And Engine Analyzer Dwell Angle/ Speed 4CYL~8CYL Continuity Test
Features:
Pocket Size
Large 2000 Counts LCD Display and backlight display
Auto range and Manual range
Automatic alarm
Reading hold and Max value hold
Built-in Engine Analyzer
Buiti-in on coninuity test buzzer for warning
Built-in double replaceable high-power fuses to ensure meter protection
Convenient "FUNC" key to switch functions easily
Auto power off function
CE, RoHS, IEC1010-1 CAT.III 600V certified.
Applications:
Electrical repair
Appliance repair
Home wiring projects
Testing electrical systems on cars and boats
Hobby projects
Specification:
|
Specifications |
Range |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/600V |
+-(0.7%+2) |
|
AC Voltage |
200mV/2V/20V/200V |
+-(0.8%+3) |
|
600V |
+-(1.0%+3) |
|
|
DC Current |
10A |
+-(2.0%+10) |
|
AC Current |
10A |
+-(3.0%+10) |
|
Resistance |
200ohm/2Kohm/20Kohm/200Kohm/2Mohm/20Mohm |
+-(1.0%+3) |
|
DWELL Angle Test |
4CYL/6CYL/8CYL |
±(3o) |
|
Engine speed Test
|
4CYL/6CYL/8CYL |
±(3.0%+ 3 ) |
