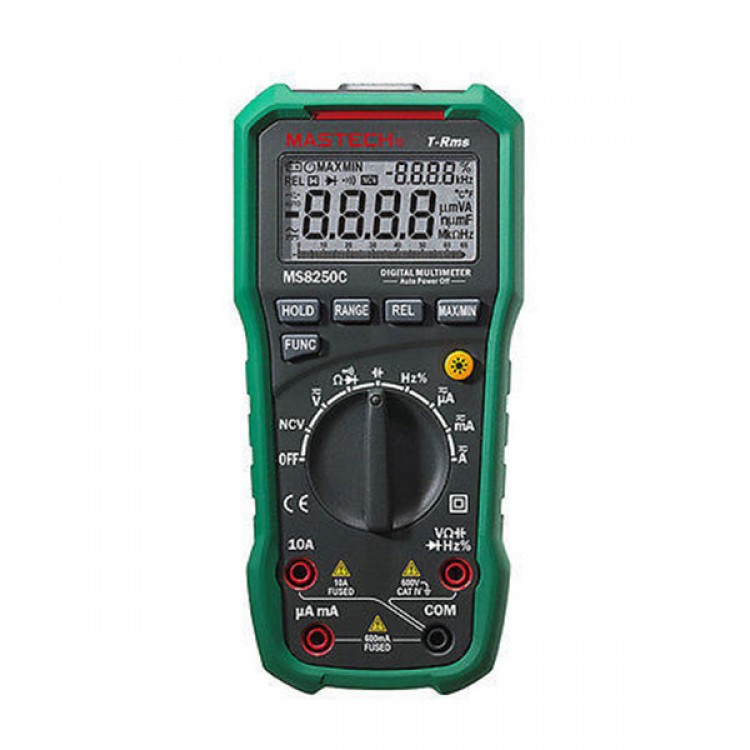

Mastech MS8250C Autoranging Digital Multimeter True RMS Low-pass Filtering 6600 D/A Display NCV USB Data Transmission

Mastech MS8250C Autoranging Digital Multimeter True RMS Low-pass Filtering 6600 D/A Display NCV USB Data Transmission

 Description:
- Meter is a portable professional measuring instrument with LCD digital display, and a backlight, user easy reading. Range switch for easy one-hand operation measurement, with overload protection and low battery indication. Whether professional, factories, schools, lovers or family use, are an ideal multi-function instrument.
- Instrument for AC current, DC current, AC voltage, DC voltage, frequency, duty cycle, resistance, capacitance measurements and line off, diode test.
- Meter range with automatic and manual range function.
- Meter has hold function.
- Instrument AC current, AC voltage True RMS measurements.
- Has a relative measurement instrument.
- Instrument has a maximum measurement functions.
- Instrument with minimum measurements.
- Meter when measuring AC voltage and AC current measurements can be synchronized AC voltage and AC current frequency of
- Meter with automatic shutdown feature.

Features:
Compliance with IEC61010-1 600V4 standard
6600 count
Digital and analog bar display:
Dual display (AC voltage and AC current measurement, frequency measurement displayed simultaneously)
ACA / ACV TRMS Sampling rate:
Digital display: 3 times / sec, analog display 30 times / sec.
Low-pass filter function
Automatic shutdown
Data Retention
USB data transfer non-contact voltage detection function
Range Accuracy
DC voltage: 660mV/6.6V/66V/660V / (0.5% rdg +2 dgt)
AC voltage: 660mV/6.6V/66V/660V / (1% rdg +2 dgt)
Resistance: 660/6.6k/66 k/660 k/6.6M/66M / (0.8% rdg +2 dgt)
Capacitance: 6.6nF/66nF/660nF/6.6uF/66uF/660uF/6.6mF/66mF / (3% rdg +2 dgt)
Frequency: 66Hz/660Hz/6.6kHz/66kHz/660kHz/6.6MHz/66MHz / (0.3% rdg +2 dgt)
Duty Cycle: 5% ~ 95% / (2.0% rdg +2 dgt)
DC Current: 660A/6600A/66mA/660mA / (0.8% rdg +2 dgt) / 10A / (2% rdg +2 dgt)
AC current: 660A/6600A/66mA/660mA / (1.2% rdg +2 dgt) / 10A / (3% rdg +2 dgt)
Specification
Instrument should specify the annual cycle, at 18 Centigrade ~ 28 Centigrade, relative humidity less than 75% under the conditions of re-calibrated.
Summary
Auto range and manual range.
Full range overload protection.
Measuring between the earth terminal and allows maximum voltage: 600V DC or AC (rms)
Working height: max 2000m
Display: LCD
Maximum display: 6599 figures.
Polarity Indication: \'-\' indicates negative.
Over-range display: \'0 L \'or\'-0L \'.
Sampling time: digital display approximately 0.4 seconds / / analog display 0.04 seconds / time (except for current measurement); When the current measurement, digital display for about 1 second / time / analog display 0.1 seconds / second.
Unit display: a function, power units.
Automatic shutdown time: 30 minutes
Power supply: 9V 6F22 battery.
Battery voltage indication: LCD display symbols.
Temperature coefficient: less than 0.1 × Accuracy / Centigrade
Operating temperature: 0 Centigrade~ 40 Centigrade
Storage temperature: -10 Centigrade ~ 50 Centigrade
Attachment
A pair of leads
Instructions a
A battery 9V 6F22
An interface cable USB interface cable
Communications software CD-ROM disc
