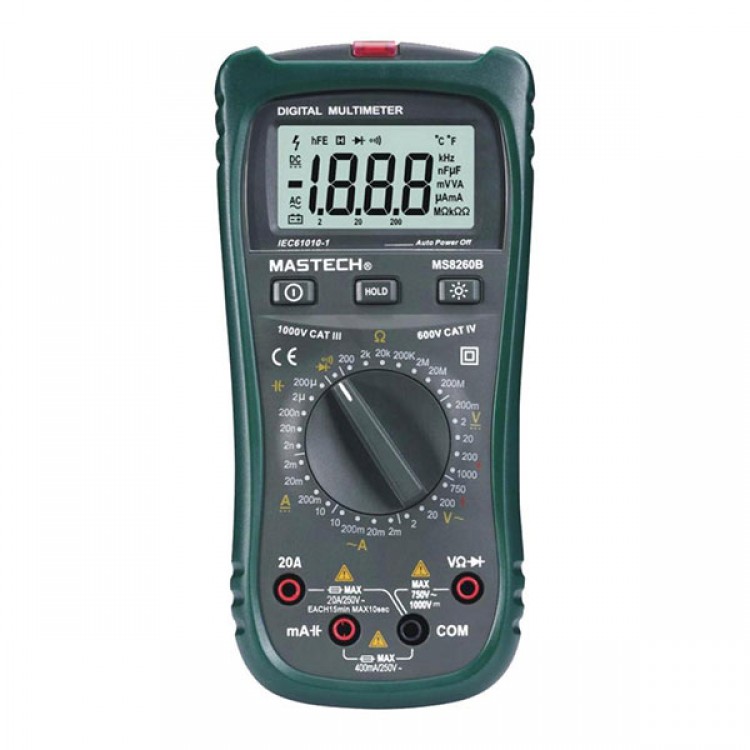

MASTECH MS8260B Digital Multimeter AC DC Voltage Current Resistance Capacitance Diode Continuity Non Contact AC Voltage Detect
Features:
Large 2000 counts LCD display
Built in non-contact voltage detector
Test AC/DC voltage and current, resistance, capacitance
Diode and continuity test
Data hold and display back light
Safety rating up to CAT.IV 600V
Specification:
Environment conditions:1000V CAT. III and 600V CAT.IV
Pollution degree: 2
Altitude < 2000m
Operating temperature: 0~40° C, 32° F~122° F(<80% RH, <10° C noncondensing)
Storage temperature: -10~60 ° C, 14° F~140° F(<70% RH, battery removed)
Temperature Coefficient: 0.1x(specified accuracy) / ° C (<18° C or >28° C)
MAX. Voltage between terminals and earth ground: 750V AC rms or 1000V DC.
Fuse Protection: mA: fuse (FF400mA/1000V) ; A: fuse(FF10A/1000V)
Sample Rate: 3 times/sec for digital data.
Display: 3 1/2 digits LCD display. Automatic indication of functions and symbols.
Over Range indication: LCD will display "1".
Low battery indication
Polarity indication: "-" displayed automatically.
Power source: 9V
Battery type: NEDA 1604, 6F22, or 006P.
Dimensions: 188(L)x92(W)x50(H) mm.
Weight: 380g. Approx.
DC Voltage: 200mV/2V/20V/200V±(0.5% +1 ), 1000V±(0.8% +2 )
AC Voltage: 2V/20V/200V±(0.8%+3 ), 750V±(1.2% +3 )
Resistance: 200ohm±(0.8%+3 ), 2Kohm/20Kohm/200Kohm/2Mohm±(0.8% +1), 20Mohm±(1.0%+2 ), 200Mohm±(5.0% +10)
Capacitance:2nF/20nF/200nF/2uF±(4.0% +3 ), 200uF±(5.0% +10)
DC Current: 2mA/20mA±(0.8%+1), 200mA±(1.5% +1 ), 10A±(2.0%+5 )
AC Current: 2mA/20mA±(1.0%+3) , 200mA±(1.8%+3 ), 10A±(3.0%+7 )
Pls note that battery is not included in the package
Package includes:
1 * MS8260B Digital multimeter
1 * Test Leads
1 * User manual
