| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $33.62 | $32.94 | $31.91 | $30.54 | Contact US |
0-3500V Multifunctional Transistor Withstand Voltage Tester (w/ Green Display) for MOSFET Triode LED
$17.73
0-3500V Multifunctional Transistor Withstand Voltage Tester (w/ Red Display) for MOSFET Triode LED
$17.73
0-3500V Multifunctional Transistor Withstand Voltage Tester (w/ Blue Display) for MOSFET Triode LED
$17.73

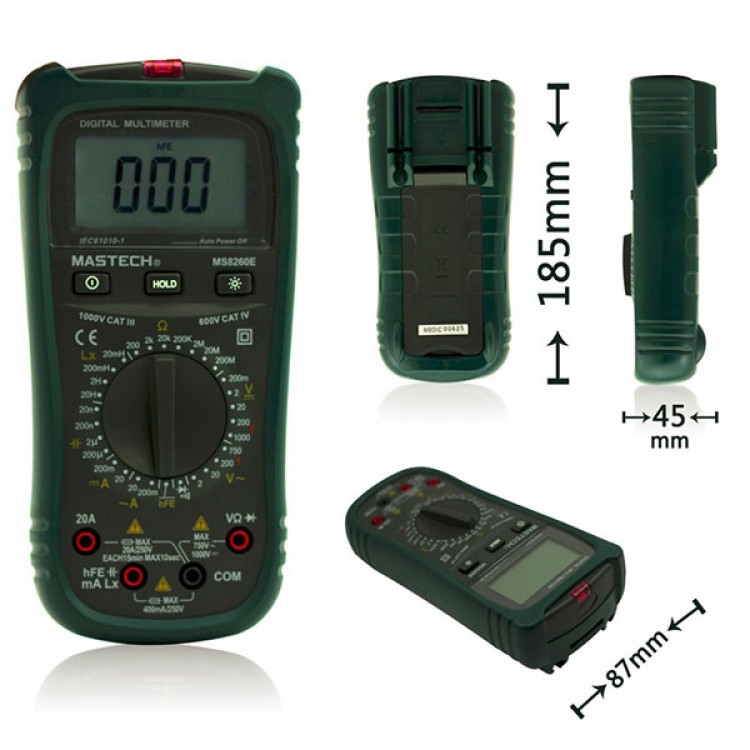

MASTECH MS8260E Digital Multimeter LCR Meter AC DC Voltage Current Capacitance Inductance Tester with Non-contact Voltage Test
Features:
Large 2000 counts LCD display
Built-in non-contact voltage detector
Tests AC/DC voltage and current, resistance, capacitance
Inductance measurement up to 20H
Transistor (hFE) check, diode and continuity test
Data hold and display back light
Safety rating up to CAT.IV 600V
Pls note that battery is not included in the package
Specification:
DC Voltage: 200mV/2V/20V/200V±(0.5%+1) 1000V±(0.8%+2)
AC Voltage: 2V/20V/200V±(0.8%+3) 750V±(1.2%+3)
DC Current: 200mA±(1.5%+1) 20A±(2.0%+5)
AC Current: 200mA±(1.8%+3) 20A±(3.0%+7)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ±0.8% 20MΩ±(1.0%+2) 200MΩ±(5.0%+10)
Capacitance: 20nF/200nF/2uF±(4.0%+3) 200uF±(5.0%+10)
Inductance: 20mH/200mH/2H/20H±(3.0%+5)
Audible continuity: < 30 ohm
hFE: 0 - 1,000
Diode test: 1 mA , 2.8V
Battery: 9Vx1, NEDA 1604/6F22 (NOT INCLUDE)
Size: 188 mm(L)x 92 mm(W)x 50mm(H)
Weight: 13 Oz
Package includes:
1 * MS8260E Digital multimeter (with test leads)
1 * MS3206 multi-functional socket
1 * User manual
