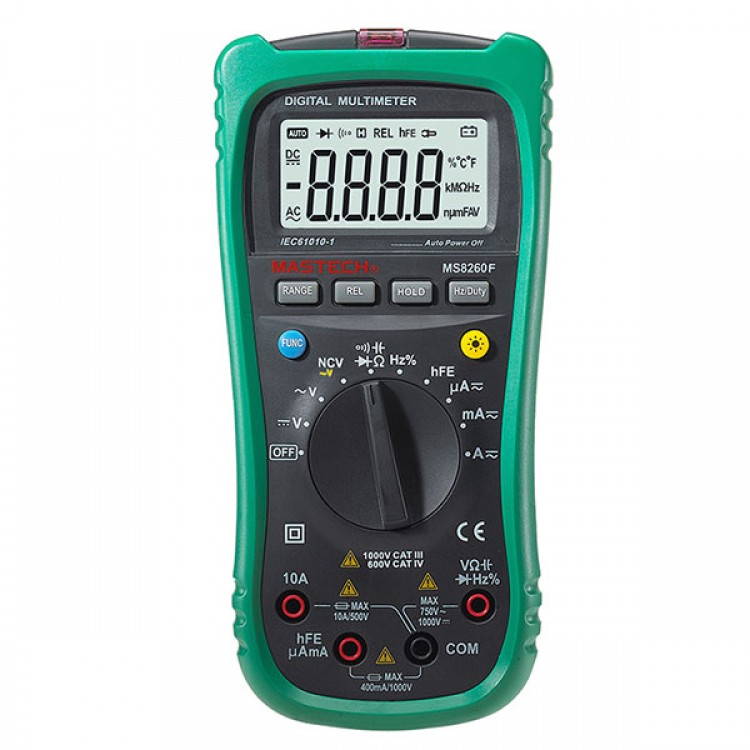

• Mastech MS8260F Auto Range Digital Multimeter DMM AC/DC 20A

Mastech MS8260F Auto Range Digital Multimeter DMM AC/DC 20A

Availability: In stock, usually dispatched in 1 business day

  • Price:$38.82
  • Price in reward points: 388 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.04 $37.27 $36.10 $34.55 Contact US
Quantity:

Mastech MS8260F Auto Range Digital Multimeter DMM AC/DC 20A

Specification:

 Non-contact voltage detection.
 - All stalls overload protection.
 - Low battery indication.
 - Auto range and manual range.
 - Relative measurements.
 - Automatic shutdown.
 - Data retention.
 - Backlight.
 - . Product Specifications:.
 - DC 400mV/4V/40V400V/1000V ± 0.5%.
 - AC voltage 400mV/4V/40V400V/750V ± 0.8%.
 - DC current 400μA/4mA/40mA/400mA ± 0.8%.
 - 20A ± 1.2%.
 - AC current 400μA/4mA/40mA/400mA ± 1.5%.
 - 20A ± 3%.
 - Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ± 1.2%.
 - Capacitance 4nF/40nF/400nF/4μF/40μF/200μF ± 3%.
 - Frequency of 0.1Hz ~ 100KHz ± 0.5%.
 - Duty Cycle 0.1% ~ 99.9% ± 2%.
 - Three tube test from 0 to 1000.
 - Diode test.
 - Off test.
 - Count 4000.
 - Display LCD digital display.
 - Power 9V 6F22.
 - Weight 350g>
 - Size 92 mm × 188 mm × 50mm.
