Master-DMX Lighting Console Supports Touch Control + 3rd Generation 3-Pin WIFI-DMX Controller (Long)

Master-DMX Lighting Console Supports Touch Control + 3rd Generation 3-Pin WIFI-DMX Controller (Long)

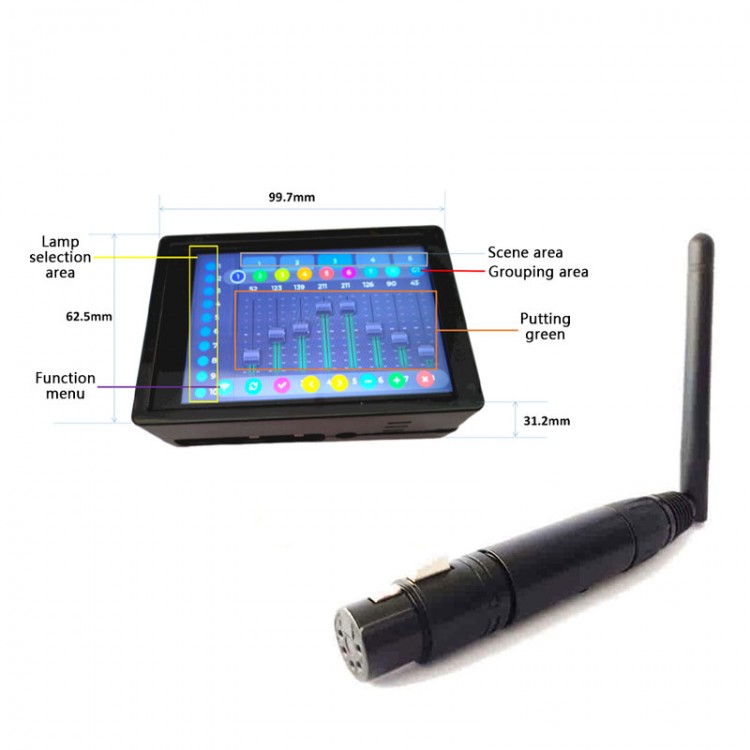

Master-DMX Console:
Description:
Master-DMX 512CH console independently sends DMX signals to the Wifi-DMX controller by working with the Wifi-DMX controller to realize wireless control of DMX lights.

Master-DMX lighting console can save the ARTNET protocol software scene, as long as your mobile phone/tablet/computer terminal is connected to the WIFI of the Master-DMX console.

It outputs 512 channels. And you can modify the number of channels and the number of light fixtures.

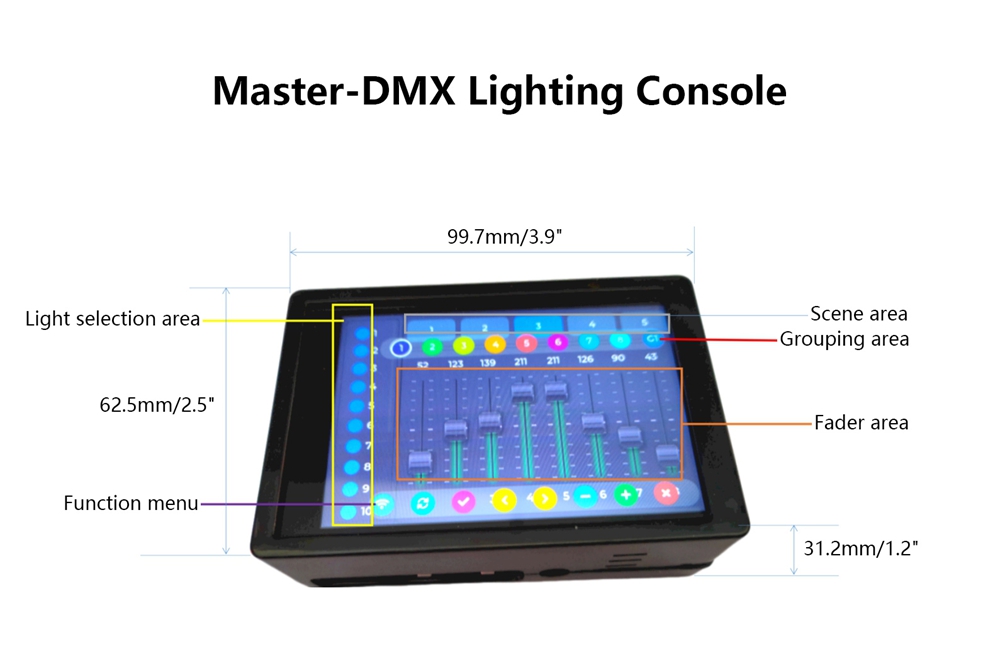

Its battery life is more than 8 hours. With a 3.5" IPS capacitive touch screen, Master-DMX console is delicate and compact, making it easy to carry. Compared with the mobile APP, there is no need to connect to WIFI and it will keep being connected.

Features:
- The output is 512 channels to realize wireless light control
- No need to connect to WIFI and it will keep being connected. Stable and efficient to use
- You can save the edited scenes of the mobile APP
- No other accessories are required for joint control
- It can support up to 16 channels, 16 faders, 8 groups, 16 scenes, 8 sequences, and 170 lights
- You can choose lights and group the lights
- Edit scenes and sequences independently
- 13 channels to choose from
- Ready to use thanks to its battery
- Can be used as a power bank

WIFI-DMX Controller:
Advantages:
- The classic WIFI-DMX controller receives the signal from a mobile phone through WIFI. It can control all products with DMX signals.
- Unlimited networking function: Thanks to WIFI hotspot, it can be connected to the WIFI of any controller to achieve joint control.

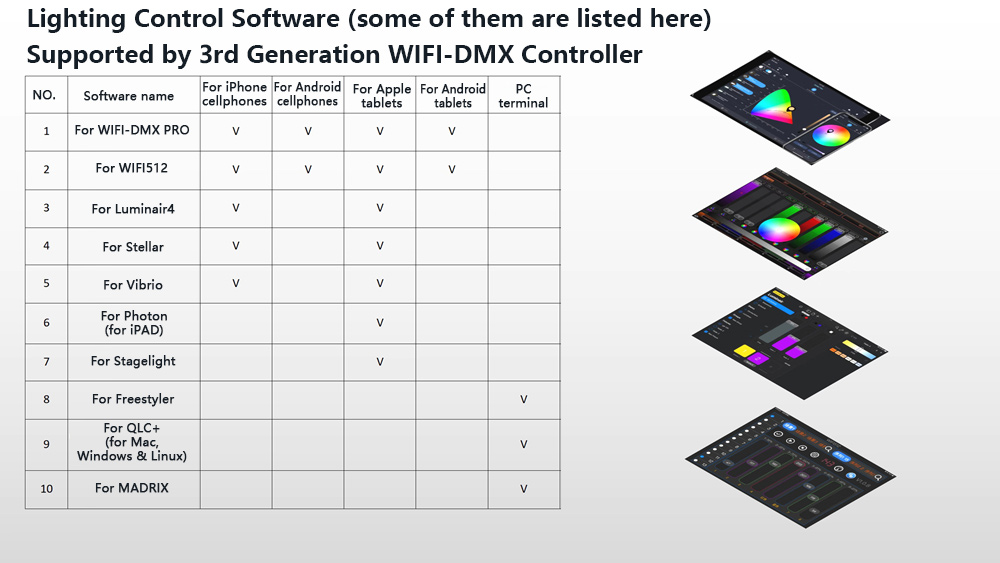

- It can control 512 DMX channels and is compatible with third-party software. It supports for DMXControl/ FreeStyler/Tiger Touch consoles/MagicQ/MA2/Madrix/QLC.
- It can be used with WIFI-DMX super version to switch between the physical console and the mobile phone console at any time.
- It can be used with a console host to switch among the physical console, a mobile phone console and a computer console at any time.
- It can be used with a signal amplifier to support light control distance up to 200m/656.2ft via a cellphone.
- Long and short versions are optional. The long version has a stronger signal, and the short one is small and convenient.
- Users can change the WIFI name and password.

Features:
- Outputs 512 channels. It supports physical console/mobile phone console/computer terminal console to control lights
- With built-in WIFI, it supports unlimited networking. Plug and play
- Can be used with other devices to meet the needs of different scenarios
- It supports a cellphone to control lights at a distance of 200m/656.2ft
- Suitable for DMX light fixtures, including stage lights, film and television lighting and beam lights
- Mobile APP supports independent switching between Chinese and English
- The mobile software supports automatic programming
- The mobile APP comes with a light library for ARRI and other manufacturers
- The mobile APP can quickly generate effects such as running horse and running water

Specifications:
- Connection: 1* WIFI connection
- Degree of protection: IP20
- LED indicator light: With
- Supported protocols: Art-Net, DMX and WIFIDMX
- Maximum output channels: 512
- Output interface: 3-pin XLR
- Output refresh rate: 33FPS
- Input voltage: 5V DC
- Configuration software: For WIFI-DMX PRO and WIFI512
- Input current: 500mA
- Power: 2.5W
- Ambient operating temperature: 0°-50°C; 32°-122°F
- Ambient operating humidity: 5-95% (non-condensing)
- Body material: Aluminum alloy

Package Included:
- 1 x Set of Master-DMX Console + WIFI-DMX Controller

Packaging Details:
- Weight: 0.5kg
