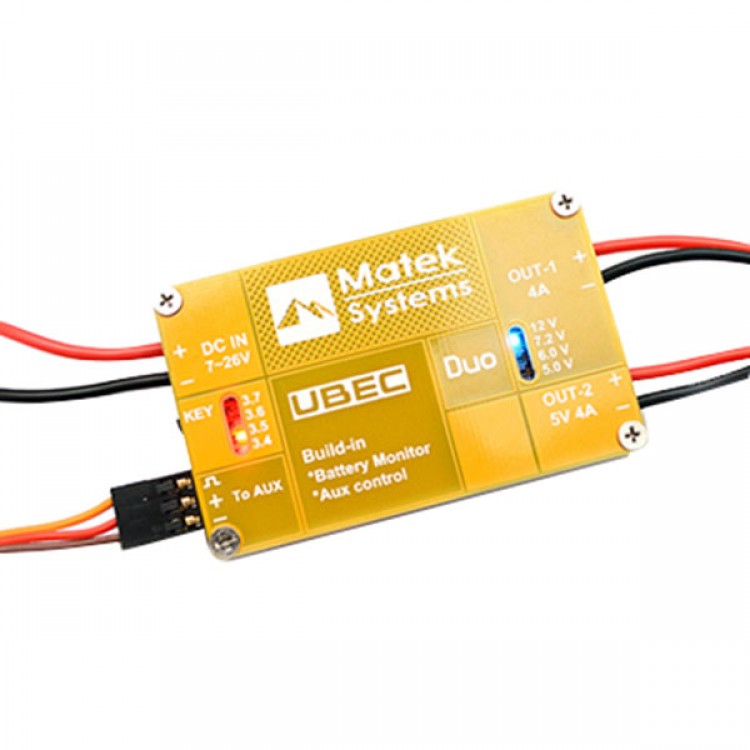

Matek U4A2P 8A UBEC 5V 12V Power Supply with Switch for Multicopter FPV Telemetry Flight Control
Description:
- Matek U4A2P is an external stabilization device, adopting step down DC-DC chip, suitable for 7-26V input, convert to high efficiency 95%, low heat radiation
- Super low magnetic inteference, pure output
- Independent dual channel 4A ouput, one channel can output 5V voltage, suitable for supply power for receiver. Another output voltage is 5-12V adjustable, and can be controlled by remote controller Aux, and supply power for multi axis gimbal, telemetry, high voltage servo, FPV lights and so on
- Built in input low voltage alarm function
Parameters:
- Step down swtich BEC
- With dual channel 4A output, output voltage is adjustable
- Built in remote controller Aux channel control function
- Built in input low voltage alarm, can set alarming value
- Output short circuit protection, main chip overcurrent and overheat protection
Specs:
- Input votlage range: 7~26V（2~6S LiPo）
- Output channel 1: 5V, 6V, 7.2V, 12V
- Output channel 2: 5V, 0-4A(Max 6A)
- Convert efficiency: <95%
- Input low voltage alarm setting range: only for LIPO battery, 3.4V, 3.5V, 3.6V, 3.7V & OFF
- Input cable: 20cm, output cable: 30cm
- Size and weight: 58x36x8mm, 32g
