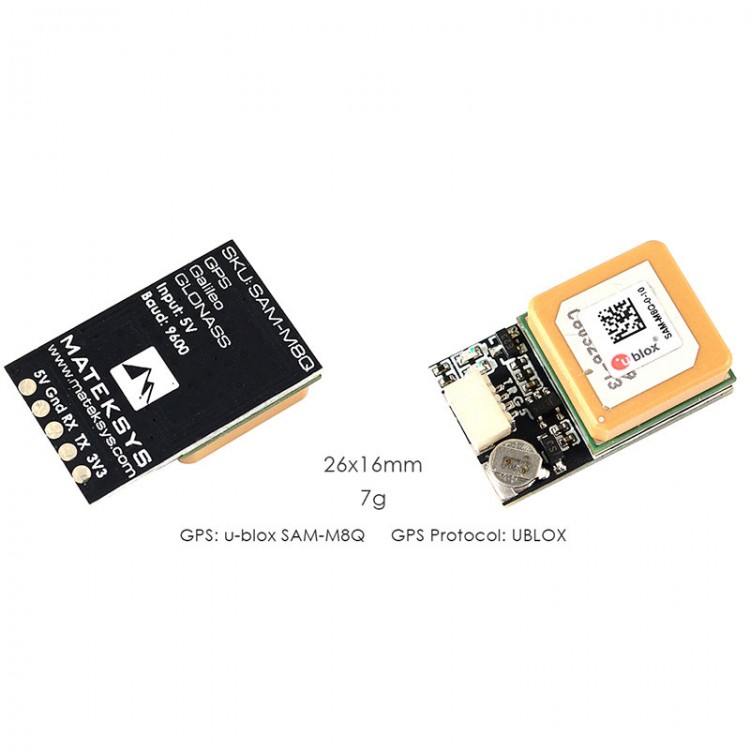

MATEKSYS SAM-M8Q GPS Module Kit 72-Channel For RC FPV Racing Drone Fixed Wing Drone DIY Uses
Features:
- 72-channel for u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
- On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
- Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
- Build-in embedded GNSS patch antenna, low power consumption
- The 15 x 15mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated in any design
Specifications:
- Max. navigation update rate: Single GNSS up to 18 Hz; 2 Concurrent GNSS (GPS & GLONASS) up to 10 Hz
- Horizontal position accuracy (GPS & GLONASS) 2.5 m CEP
- Velocity accuracy 0.05m/s
- Cold start 26s; Aided cold starts: 2s; Hot start 1s
- Sensitivity: Tracking & Navigation: -165dBm; Reacquisition: -158dBm; Cold start: -146dBm; Hot start: -155dBm
- Input voltage range: 4~6V
- Uart (Tx, Rx) interface
- Power LED (Red) & Time pulse LED (Blue)
- Baudrate 9600 default
- Dimensions: L26mm x W16mm x H7.5mm
- Weight: 7 gram
- Can be easy mounted in your case by double sided tape
- For INAV/Betaflight/Ardupilot, etc.
Package Included:
- 1 x SAM-M8Q Module
- 1 x SH1.0-4P 15cm Silicon Wire
- 1 x Transparent PVC Heat-Shrink Tube
Note:
- Battery is not included in the package.
Tips:
- GPS, GLONASS, SBAS, QZSS are enabled by default
- Blue PPS LED blinking (1Hz) means 3D fixed
- Update rate 1Hz & baudrate 9600 default
- Baud 9600~115200 supported by INAV
- Update rate 5Hz with Protocol for INAV UBLOX
- Update rate 10Hz with INAV UBLOX7 Protocol
- BF doesn't support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last
- The scratches on ceramic antenna are the result of tuning the antenna by that for ublox. Placing small nicks in the centre of the long edges, or corners, brings them into spec
