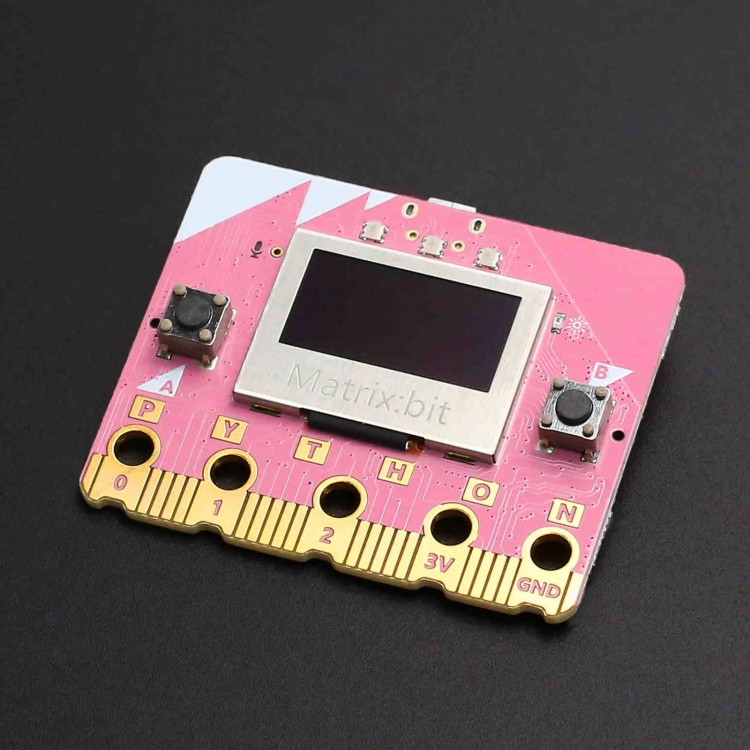

Matrix:bit V2.0 Development Board Programming Control Board (Pink with Micro USB Port) + Data Cable
Description:
Matrix:bit V2.0 is a versatile development board specifically designed for programming purposes. To facilitate seamless usage, a data cable is thoughtfully included in the package, ensuring users can quickly connect and start their programming projects.
Specifications:
- Product Name: Matrix:bit V2.0
- Dimensions: 52mm x 42mm
- Main Frequency: 240MHz
- Processor: Original LX6 dual-core processor ESP32 for Tensilica
- Memory: SRAM: 520KB; Flash: 8MB
- Expansion Interfaces: 26-channel I/O pins. The interfaces are fully compatible with Micro:bit's gold fingers (no need to reverse the direction).
- Communication Methods: USB, WIFI, BLE and 2.4G wireless broadcast
- Programming Languages: C++, Python, and Mind+ (graphical programming)
- Touch Logo: 8-channel touch logo
- Onboard Components: Accelerometer, gyroscope, electronic compass, light sensor, 2 programming buttons, 0.96" OLED display, buzzer, analog microphone, RGB LEDs x 3, temperature sensor and Hall sensor
Package Included:
- 1 x Development Board
- 1 x Data Cable
Packaging Details:
- Weight: 0.22kg
Note:
- The product comes with either a Micro USB or Type-C interface. The specific details depend on the version you select. The images below are for illustrative purposes only. Thank you for your understanding!
