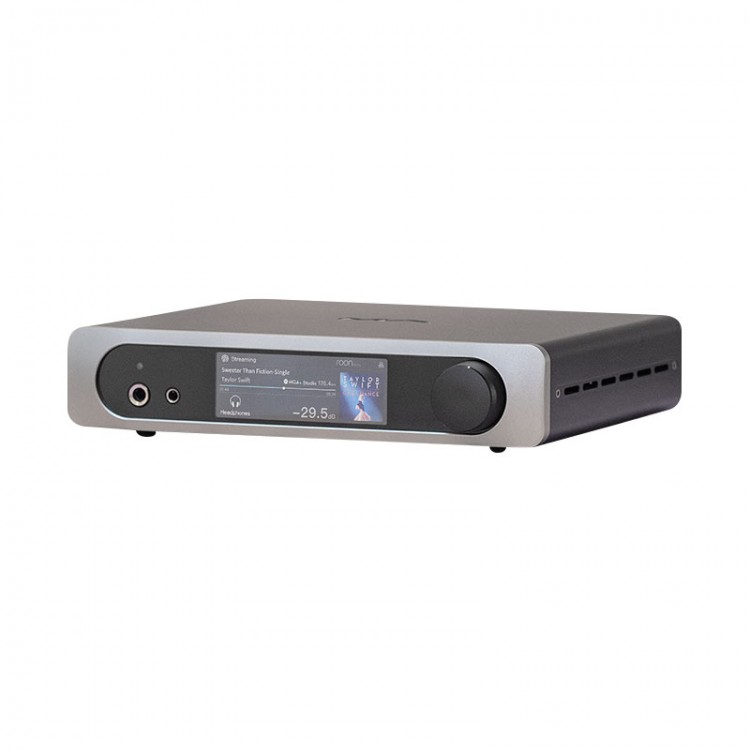

Matrix mini-i3 MQA Full Decoder Wireless Bluetooth Earphone Desktop Hifi Digital Audio Decoding all-in-one Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$889.00
  • Price in reward points: 8890 Reward Points: 89
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $871.22 $853.44 $826.77 $791.21 Contact US
Quantity:

Matrix mini-i3 MQA Full Decoder Wireless Bluetooth Earphone Desktop Hifi Digital Audio Decoding all-in-one Machine


Description:

- This is the 4th generation product under the mini-i series name from Matrix Audio continuing the classic design and superb build quality. The new Mini-i 3 and Mini-i Pro 3 use a two-color aluminum shell in silent black and space gray with a 3.3-inch LCD screen and a brand new user interface. The Mini-i 3 and Mini-i Pro 3 provide an improved user experience and stunning good looks.
- Matrix introduces streaming functionality into the Mini-i series audio DACs, so you can easily enjoy a huge selection of music sources. With Roon Ready, you can playback bit-perfect music streams through the Mini-i 3 and Mini-i Pro 3 over a LAN, or push music to Mini-i 3 and Mini-i Pro 3 from an iPhone, iPad, or any MAC computer on the network using AirPlay.
- Roon finds the links between your music collection and the millions of tracks available on Internet, so you can start with the music you know, then explore and discover new music. The Mini-i Pro 3/Mini-i 3 act as an endpoint in Roon streaming media system, they transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to Mini-i Pro 3/Mini-i 3.
- The Mini-i 3 and Mini-i Pro 3 feature a fully balanced headphone amplifier. This allows the left and right channel signals to pass through a nearly perfect symmetrical amplifier circuit, providing ample headphone output power with low distortion and low noise. The output power of single-ended headphone connection is increased by 50%, and the balanced headphone output is increased by 3 times compared to the previous generation. The addition of a 4.4mm balanced headphone jack makes it easier to connect various popular balanced headphones.
- MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to easily be streamed. The Mini-i Pro 3 is a MQA full decoder, which enables you to play back MQA audio files and streams without any software decoding, delivering the sound of the original master recording. Visit How MQA Works for more information.
- Mini-i 3 does not support MQA decoding and rendering
- Like the previous generation, Mini-i 3/Mini-i Pro 3 also have various digital audio input ports. They are first models with IIS LVDS input port in entry product line, it means Mini-i 3/Mini-i Pro 3 can get a performance improvement through external audio interface. The USB Type-C connector improves the connection reliability and transmission efficiency of digital audio signal.
- We have created an elegant UI for the Mini-i 3 and Mini-i 3 Pro, which are the first models to include a 24-bit color LCD display from Matrix Audio. You can view the input channels, streaming methods, device configurations, and additional information on the display clearly and intuitively. Even filter curves and the IIS interface definitions are displayed graphically.
- We re-designed every details of mini-i Pro 3 and mini-i 3, the exterior and the internal structure have been adjusted and verified repeatedly, even a small part on the PCB has been carefully considered. The power supply of mini-i Pro 3/mini-i 3 has been greatly improved, both the maxmium power and the noise level are totally beyond its previous generation. The mini-i Pro 3 has added the Crystek CCHD-950 femtosecond clock*, which was only available in higher level products in the past.
- Mini-i 3 uses high precision active oscillators
- To improve the functionality and performance of the Mini-i 3 and Mini-i Pro 3, we will continue to release new firmware updates adding exciting new features and further refinements to the user experience. Only a few simple steps are needed to keep your product up to date.

Mini-i Pro 3
DAC:
ES9038Q2M

USB chip
XMOS XU216
PCM 16-24Bit 768kHz
MQA max 24bit/384kHz
DSD 11.2MHz (DoP)
DSD 22.4MHz (Native)
Clock
Crystek CCHD-950
Ultra Low Phase Noise
Femtosecond Clock
Digital Input:
Optical (x1)
Coaxial (x1)
IIS LVDS (x1)
USB-C (x1)
Line Out:
RCA (x1)
XLR (x1)
Headphone Out:
1/4" TRS (6.35mm)
4.4mm TRS

Output Level:
1/4-in: 1270mW @33ohm / --- @ 120ohm
257mW @ 300ohm / 133mW @ 600ohm
4.4mm: 1900mW @33ohm
950mW @ 300ohm / 510mW @ 600ohm
Network
LAN: 10BASE-T/100BASE-TX
WLAN: 2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac standard
Sampling Rate Support:
PCM up to 768kHz
DSD up to 11.2MHz
MA Player: ---
---
DLNA: ---
Volume Control Mode
Digital Volume


USB Storage
---

Supported Formats
---

MA Player
AirPlay
Roon Ready
Full MQA Support
IR Remote
Power Supply
Linear 20W
8.8" x 8.1" x 1.9" (223x205×48mm)
3.75 lb (1.7kg)
Mini-i 3
DAC:
ES9038Q2M

USB chip
XMOS XU216
PCM 16-24Bit 768kHz
DSD 11.2MHz (DoP)
DSD 22.4MHz (Native)

Clock
SiTime Low Phase Noise Clock


Digital Input:
Optical (x1)
Coaxial (x1)
IIS LVDS (x1)
USB-C (x1)
Line Out:
RCA (x1)
XLR (x1)
Headphone Out:
1/4" TRS (6.35mm)
4.4mm TRS

Output Level:
1/4-in: 1270mW @33ohm / --- @ 120ohm
257mW @ 300ohm / 133mW @ 600ohm
4.4mm: 1900mW @33ohm
950mW @ 300ohm / 510mW @ 600ohm
Network
LAN: 10BASE-T/100BASE-TX


Sampling Rate Support:
PCM up to 768kHz
DSD up to 11.2MHz
MA Player: ---
---
DLNA: ---
Volume Control Mode
Digital Volume


USB Storage
---

Supported Formats
---

MA Player
AirPlay
Roon Ready
---
IR Remote
Power Supply
Linear 20W
8.8" x 8.1" x 1.9" (223x205×48mm)
3.75 lb (1.7kg)
element M
Quad-core DAC:
ES9028 PRO

USB chip
XMOS XU216
PCM 16-24Bit 768kHz
DSD 11.2MHz (DoP)
DSD 22.4MHz (Native)

Clock
SiTime Low Phase Noise Clock


Digital Input:
Optical (x1)
Coaxial (x1)
IIS LVDS (x1)
USB (x1)
Line Out:
RCA (x1)
XLR (x1)
Headphone Out:
1/4" TRS (6.35mm)


Output Level:
1320mW @33ohm
--- @ 120ohm
248mW @ 300ohm
124mW @ 600ohm
Network
LAN: 10BASE-T/100BASE-TX
WLAN: 2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac standard
Sampling Rate Support:
PCM up to 768kHz
DSD up to 22.4MHz
MA Player: PCM 768kHz/ DSD 512
Roon: PCM 768kHz/ DSD 256 *
DLNA: PCM 768kHz/ DSD 512
Volume Control Mode
Digital Volume


USB Storage
TF Card Slot (x1)
USB Host (x2)
Supported Formats
MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF
MA Player
AirPlay/DLNA
Roon Ready
Full MQA Support
IR Remote
Power Supply
Linear 30W
10.9" x 11.1" x 2.4" (275x281×60mm)
8.1 lb (3.7kg)
element I
Dual-core DAC:
ES9028 PRO

USB chip
XMOS XU208
PCM 16-24Bit 384kHz
DSD 5.6MHz (DoP)
DSD 11.2MHz (Native)

Clock
SiTime Low Phase Noise Clock


Digital Input:
Optical (x1)
Coaxial (x1)
IIS LVDS (x1)
USB (x1)
Line Out:
RCA (x1)
XLR (x1)
Headphone Out:
1/4" TRS (6.35mm)


Output Level:
1320mW @33ohm
--- @ 120ohm
248mW @ 300ohm
124mW @ 600ohm
Network
LAN: 10BASE-T/100BASE-TX
WLAN: 2.4GHz, IEEE 802.11 a/b/g/n standard
Sampling Rate Support:
PCM up to 384kHz
DSD up to 11.2MHz
MA Player: PCM 384kHz/ DSD256
Roon: PCM 384kHz/ DSD128
DLNA: PCM 384kHz/ DSD256
Volume Control Mode
Digital Volume


USB Storage
USB Host (x2)

Supported Formats
MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF
MA Player
AirPlay/DLNA
Roon Ready
n/a
IR Remote
Power Supply
20W AC Adapter
9.5" x 8.7" x 2.2" (240x220×55mm)
3.3 lb (1.5kg)

*Sampling Rate of PCM 768kHz/ DSD 256 with Roon requires the latest A10301 firmware update. Earlier firmware versions support PCM 384kHz/ DSD 128.
