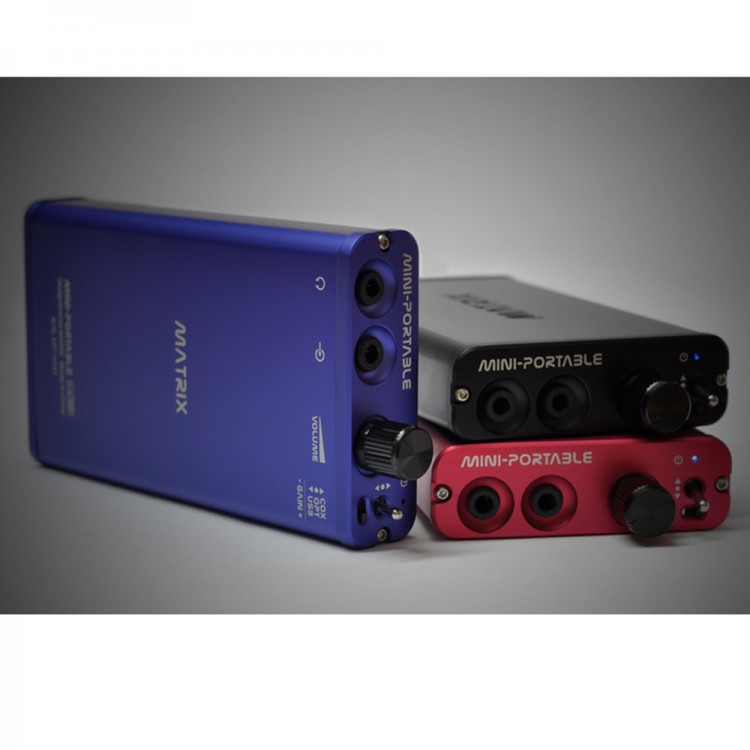

MATRIX Mini-Portable DAC 24bit 192KHz Portable Amplifier Headphone Decoder AMP DAC USB DAC
Description:
Matrix mini-portable is for the mobile needs of the earphone fancier design quality for portable devices. The company has ADI high current type D/A conversion unit AD1955, and with high quality operational amplifier AD8620, realizing the perfect reduction of audio signal.
Headphone amplifier Reissue with super low distortion current feedback amplifier, can drive a variety of large-scale moving coil earphone and earphone in-ear moving iron.
Through optical fiber and coaxial interface can playback up to24bit/192KHz digital audio signal, by means of computer USB interface can playback24bit/96KHz digital audio signal.
High capacity lithium battery can ensure high impedance earphone when driving over 8 hours of continuous playback time, automatic voltage control in the battery capacity of less than 10% and 5% alarm display, and when the battery is exhausted automatically stop playback, to prevent battery discharge.
Features:
- USB interface in Microsoft windows7, Vista, XP,2000 and Mac OS X system supporting the top24bit/96Khz digital audio signal playback.
- Optical and coaxial interface supports a maximum of 24bit/192KHz digital audio signal playback.
- Internal earphone amplifier unit can drive high impedance of 300ohm headphones.
- With3.5mm analog input port, a headphone amplifier.
- Automatic battery voltage detection, and special battery charging management chip.
- Multiple independent accurate stabilized voltage supply, the analog part of positive and negative power drive.
- Compact, easy to carry
- Cound performance and has the perfect natural texture, exquisite processing technology, whenever and wherever possible to let you enjoy high quality music playback.
Technical specifications:
- Optical fiber interface:standard square fiber, the sampling rate to support 16-24bit/44.1-192KHz
- Coaxial interface: 75European standard RCA coaxial, sampling rate to support 16-24bit/44.1-192KHz
- USB interface: USB-mini interface, support 16-24bit/44.1-96KHz sampling rate
- Analog input impedance: 47K ohms
- Headphone output distortion TND+N: 0.00029%
- Frequency response: 20-20KHz
- Signal to noise ratio: 112Db
- Dynamic range: 118Db
- Color: Blue/red/black (optional, or sent randomly)
Package included:
- 1 x MATRIX Mini-Portable Unit
- 1 x Charger
- 1 x USB line
