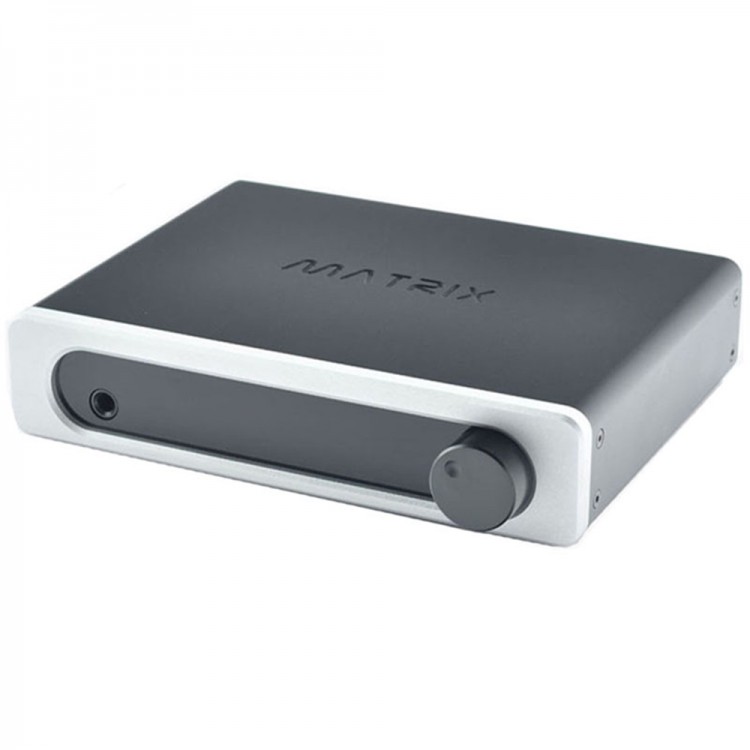

MATRIX New MINI-I Decoder Blance Output 32bit 384kHz DSD DXD DAC Headphone Amp-Black

MATRIX New MINI-I Decoder Blance Output 32bit 384kHz DSD DXD DAC Headphone Amp-Black

Description:
Mini-i Pro is upgrade edition of New Mini-i, support high quality DSD signal; further enhance playback quality, new design of the aluminum shell to make whole body more meticulous, all new OLED display and configuration menu make you easier to use it.

Focus & Professional
Precision digital volume control to ensure excellent channel balance, different gain interval with different volume adjustment steps to make volume control smoother, configurable filter brings you different timbre, added noise cancellation circuit effectively cancel the "pop" impact sound when power on or off, improved use experience.

Various Interface
The Optical, Coaxial, AES/EBU, USB digital input interface, and XLR, RCA line output interface, headphone output can easily to drive a variety of dynamic headphones.

Native Support DSD/ DXD
XMOS Asynchronous USB 2.0 interface support 1Bit/2.8224MHz and 5.6448MHz DSD signal, 24 Bit/352.8kHz DXD signal, 24bit/384kHz PCM signal playback, support ASIO.

ESS SABRE Ultra
ESS SABRE Ultra ES9016 is an 8-channel audio D/A converter, 4 D/A unit parallel output for each channel, the CPLD cooperate with double oscillator, effectively reduce the jitter to ensure the digital signal integrity.

Keep Improving
The new added EMI filter isolates EMI from AC input; improved high-quality shielded toroidal transformer with dual voltage input range; multi-stage filter and independent regulated power supply, using high precision and low temperature drift resistance and audio capacitance, comprehensive improved music details.

DAC Specification:
- ESS Technology ES9016 Sabre Ultra 32-bit DAC 9016
- 8 mono to 2 stereo configuration, four D/A converters per channel

Digital Input:
- Coaxial: 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Optical: 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- AES/EBU: 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- USB: 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz
- DoP Mode: DSD64/DSD128
- ASIO Native: DSD64/DSD128/DSD256
- System Support
  Windows XP/Vista/7/8/8.1Need to install the driver
  Mac OS X10.6.4 Native support Mac OS X10.6.4 and above

Analog Output:
- RCA Output Level: 2Vrms at 0dBFS
- XLR Output Level: 4Vrms at 0dBFS(XLR:1=GND,2=HOT,3=COLD)
- Frequency Response: 20Hz (+0.01dB) ~ 20KHz(-0.03dB)
- SNR: 115dB 0dBFS unweighted     117dB 0dBFS A-weighted
- THD+N: 0.0006% @ 1KHz 0dBFS
- Cross Talk: -125dB @ 1kHz
- Headphone Output Impedance: 12ohms
- Power Voltage:
  115V position is fit for AC 100V-120V 50/60Hz
  230V position is fit for AC 220V-240V 50/60Hz
- Power Consumption: <15W
- Fuse Specification: 5 x20mm AC250V/1A
- Dimension(L×W×H): 168mm×200mm×46mm     Including the protruding part
- Weight: 1.3kg

Package included:
- 1 x Driver
- 1 x Manual Disk
- 1 x Power Cable x 1
- 1 x USB Cable
- 1 x Decoder
