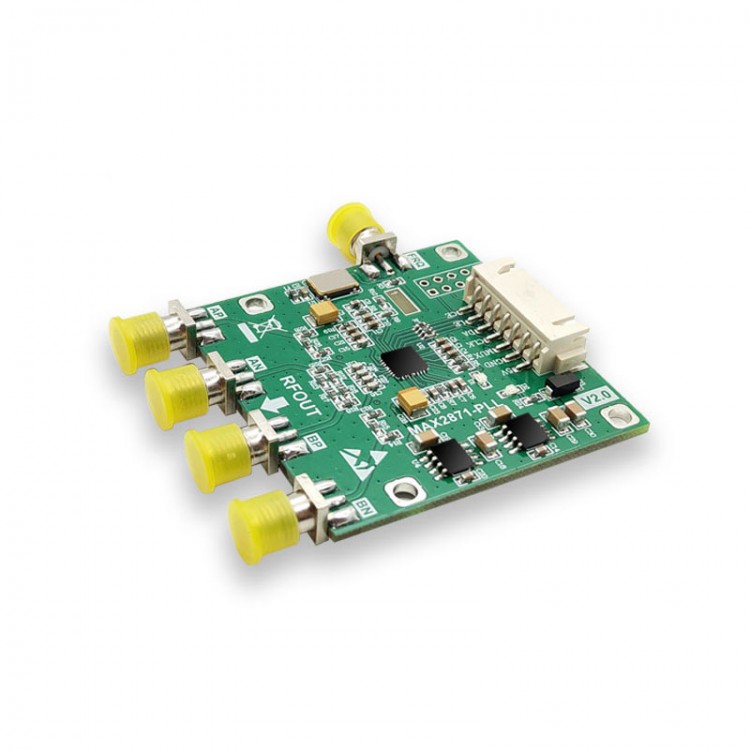

MAX2870 Signal Generator Module 6GHz RF Signal Source Phase-Locked Loop Module High Flatness Power

Attention:
- Certain circuit knowledge is highly recommended.
- Only a PDF schematic diagram is provided. Schematic diagrams and PCB engineering documents are not provided.
- Please read the information of this module before using, understand the power supply and basic functions, and avoid damage to the module due to improper use.
- All modules in our shop guarantee the authenticity of parameters and functions.

Module Parameters:
- Module: MAX2870
- Module type: broadband phase-locked loop frequency source
- Module power supply: +5V (TYP)
- Module current: about 220mA
- Frequency output adjustment method: CNC (SPI protocol)
- The module provides a routine platform: STM32F10X-M3 (with our STM32F10X simple verification development board, you can easily verify the module frequency output and other power)
- Module reference frequency: 100MHz (Users can design according to their own, change the crystal oscillator or external input reference)
- Module output frequency: 23.5MHz-6000MHz
- Module output interface: SMA (anti-oxidation nickel-plated type)
- Module output signal: RF signal
- Module output signal channel: dual differential channel
- Module output impedance: 50 ohm matching
- Module output signal mode: RF coupling (can be directly connected to RF equipment)
- Module features: Low phase noise, broadband RF phase-locked loop signal generator
- Module application: RF signal frequency waveform generation, sensor excitation source line loss attenuation detection, scanning clock generator, testing and medical equipment

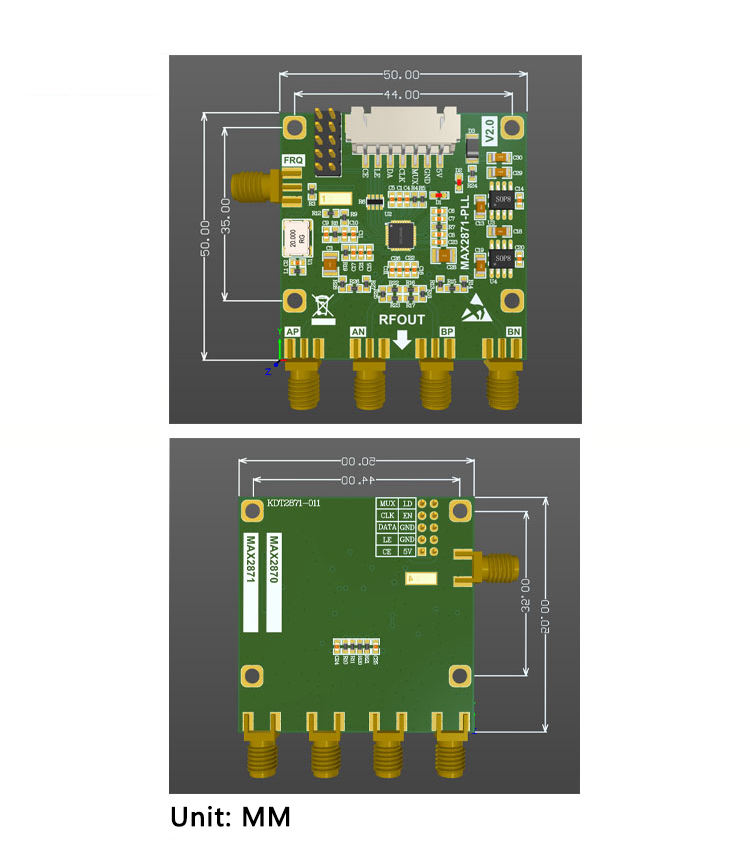

- PCB size: 50 x 50 x 7.7mm/2 x 2 x 0.3"
- Module weight: 19.01g/0.04LB

Module Power:
* For reference only, not as a standard, there are differences between modules, subject to actual testing (Good in-band power flatness)
* 24MHz, -2.7dBm
* 100MHz, -1.2dBm
* 500MHz, -1.2dBm
* 1GHz, -1.6dBm
* 1.5GHz, +0.1dBm
* 2GHz, +1.0dBm
* 2.5GHz, +0.6dBm
* 3GHz, +0.75dBm
* 3.5GHz, +1.4dBm
* 4.0GHz, 0dBm
* 5.0GHz, -2.1dBm
* 5.8GHz, -3.5dBm
* 6.0GHz, -3.7dBm

Package Included:
- 1 x Set of Signal Generator Module
