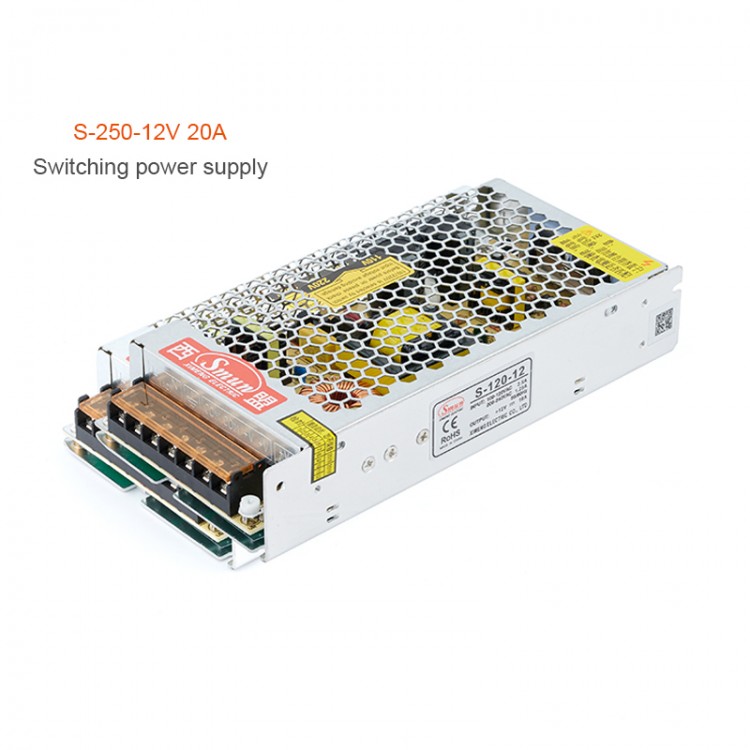

Maxgeek 12V 20A Switch Power Supply Battery Charger Module for Generator LED Light Industrial Equipment
Specification:
Output:
DC voltage: 12V
Rated current: 20A
Current range: 0~20A
Rated power: 240W
Ripple noise (max.): 120mVp-p
Voltage adjustment range: 10.8~13.2V
Voltage tolerance: ±1%
Line regulation: ±0.5%
load regulation: ±0.5%
Setup,rise, hold time: 800ms, 50ms, 19ms at full load
Input:
Voltage range: 90-132VAC/176-264VAC by switch 248-370VDC
Frequency range: 47~63Hz
Efficiency: 79%
AC current: 4.8A/115VAC, 2.8A/230VAC
Inrush current (max.): cold start, 45A/230VAC
Leakage current: ＜2mA/240VAC
Protection:
Overload, over voltage: 105~135% rated output power, protection type: hiccup mode, recover automatically after fault condition is removed, 13.8~16.2V
Environment:
Working temperature, humidity: -10~60℃, 20~90% RH non-condensing
Storage temperature, humidity: -20~85℃, 10~95% RH
Temperature coefficient: ±0.03%/℃ (0~50℃)
Vibration: 10~500Hz, 2G 10min./1 cycle, 60min each along X, Y, Z axes
Safety&EMC:
Withstand voltage: I/P-O/P:3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC
Isolation resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Others:
MTBS: 238.9K hrs min, MIL-HDBK-217F (25℃)

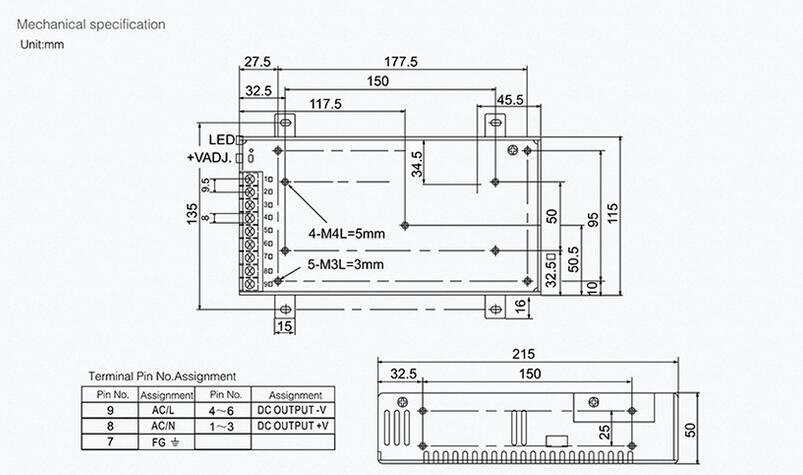

Size:215*115*50mm (L*W*H)
Package List:
1 x Switch Power
Note:
1. All parameters (not specially mentioned) are measured at 230VAC input, rated load and 25℃.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminal with a 0.1μf & 47μf parallel capacitor.
3. Tolerance includes set up tolerance, line regulation and load regulation.
