Maxgeek ADC175A Generator Actuator DC Motor Linear Electric Actuator Control Valve 24V Engine Spare Parts
Description:
The GAC engine actuator ACD175A-24 is designed to mount directly to inline fuel injection pumps, with a right hand rack in place of the mechanical governor. An optional external fuel shut off lever is provided to manually override the actuators control. Also provided, as standard equipment, is an adjustable internal maximum fuel limit.
Specification:
Force: 6.2lbs (27.5 N)
Operating Stroke: 21mm
Response Time (10-90%, 2-19mm): 35msec
Internal Sealing Pressure: 2 bar (29 psi)
Operating Voltage: 24V DC
Coil Resistance: 24V DC version: 7.2+/-0.5 ohms
Nominal Operating Current: 24V DC version: 2A
Maximum Current: 24V DC version: 3.1A
Operating Temperature: -40℃ to +95℃
Relative Humidity: up to 100%
Shock: 20g@11msec
Vibration: 20g, 20-500Hz
Features:
-Right-hand rack
-Capable of controlling pumps on engines up to 8-cycle
-Includes manual shut-off mechanism
-Connects directly to the fuel rack bellows
-Compact size , fast response <35msec

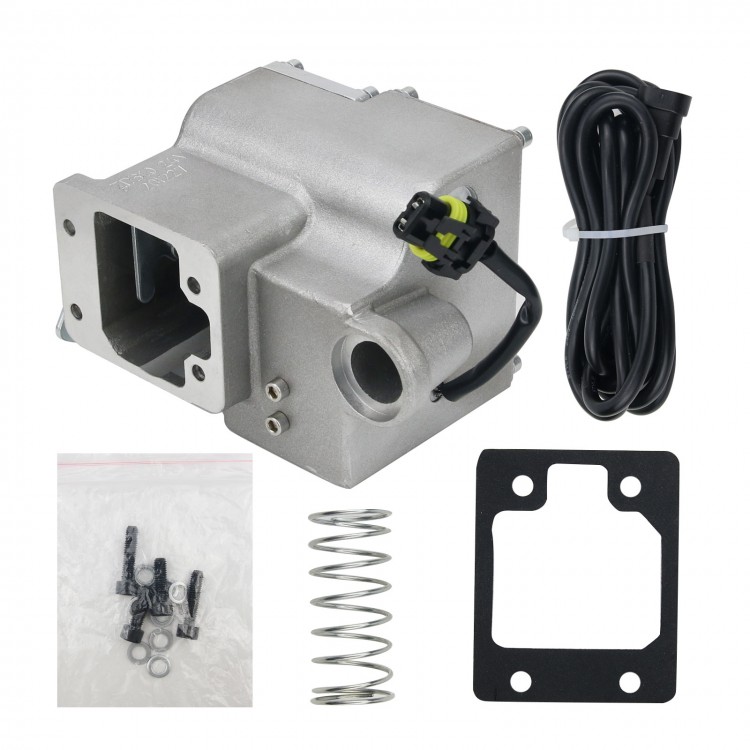

Package List:
1 x Generator Actuator Set
