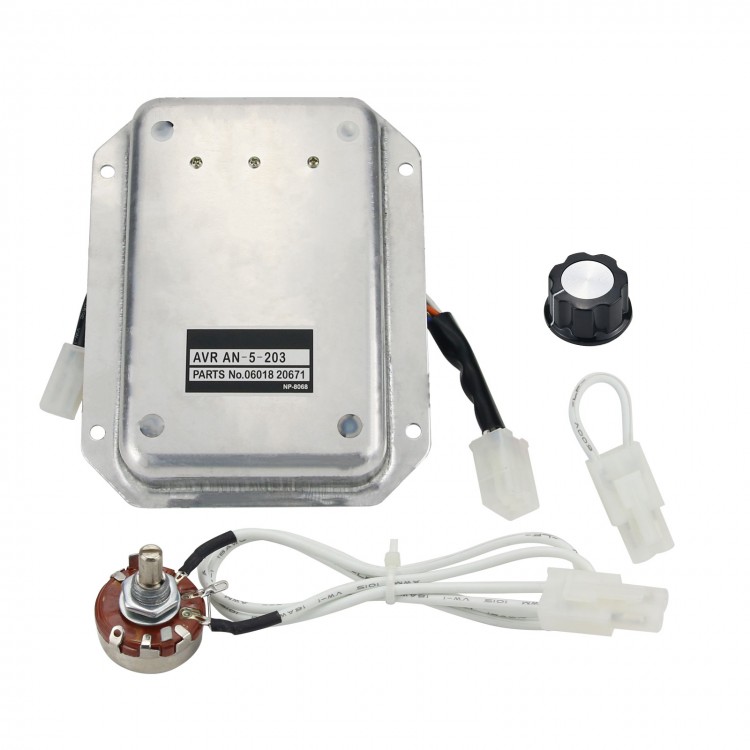

Maxgeek AN-5-203 Generator AVR Automatic Voltage Regulator Voltage Stabilizer Board for Denyo Genset
Description:
The generator AVR AN-5-203 for Denyo generator China replaced is a half-wave phase controlled thyristor type automatic voltage regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. The AN-5-203 is applied for TLG-18SPY, DCA-13ESK, 15ESK25SPK, 25ESK, 25ESI, 25SPI genset.
Specification:
Auxiliary winding input: AC 55V-220V
Highest excitation voltage output: 120V/5ADC/10S
Mine winding input voltage: 400VAC
Frequency: 50/60Hz
Generator field resistance: ≥5Ω
Steady state voltage regulation: ≤5%
Voltage adjust range: ≥15%
Minimum residual magnetic excitation voltage: ≥5V/30Hz
Package List:
1 x Generator Voltage Regulator
