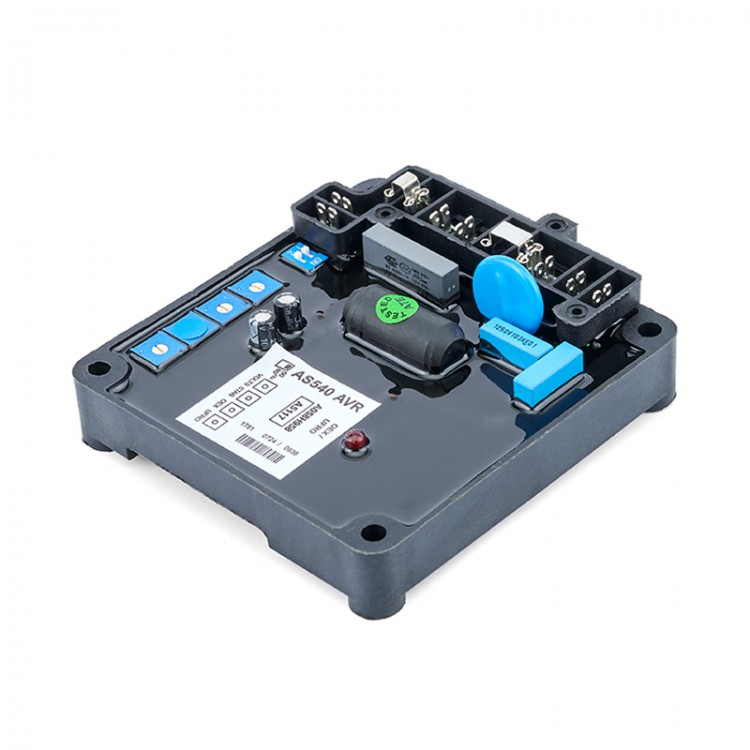

Maxgeek AS540 Diesel Generator AVR Automatic Voltage Regulator Power Stabilizer for Brushless Generator
Description:
-AS540 AVR provides closed loop control by sensing the alternator output voltage at the main stator windings and adjusting the exciter the stator field strength.
-Voltage included in the exciter rotor rectified by the rotating diodes, magnetises the rotating main field which includes voltage in the main stator windings. A self-excited AVR receives power from the alternator output terminals or a special auxiliary winding in the main stator winding.
Specification:
Sensing/power input:
Voltage: 95 VAC to 130 VAC 1 phase or 195 VAC to 265 VAC 1 phase
Frequency: 50/60Hz jumper selectable
Output:
Voltage: Max. 82 VDC @ 220 VAC input
Current: continuous 4A, transient 7.5A for 10 secs
Voltage regulation: ＜±1% (with 4% engine governing)
Features:
1. Adopt high quality electronic components, and accuracy process, ensuring for the durability,
2. High accuracy, the pressure regulation accuracy is less than ±1%.
3. Professional design, it can provide stable performance.
4. Suitable for S0/S1 (7.5KVA-62.5KVA) generator.
5. With generator voltage regulation, over voltage protection, low speed protection, high voltage stability and adjustable voltage range.
Package List:
1 x Generator Voltage Regulator
