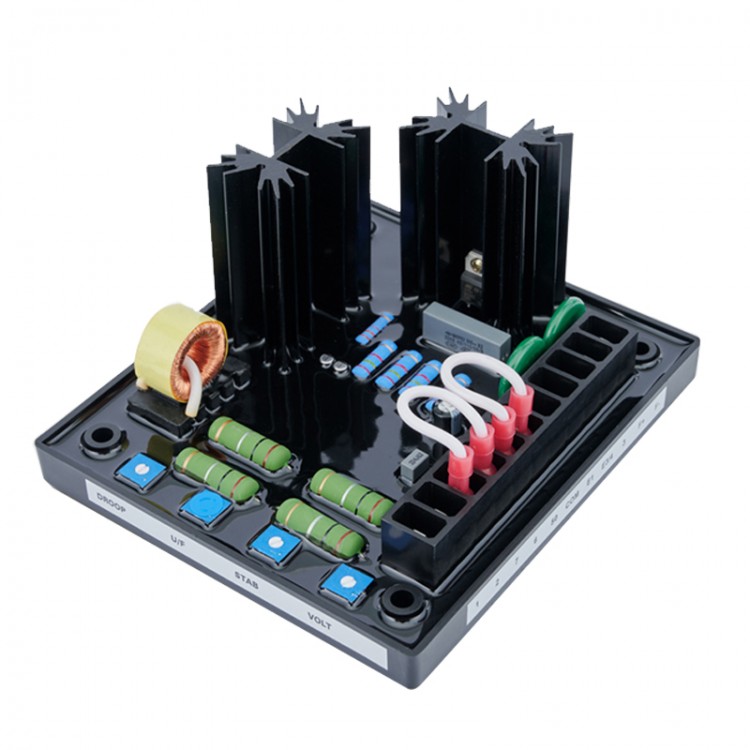

Maxgeek AVC63-7 Diesel Generator AVR Automatic Voltage Regulator Three Phase 500KVA for Basler Generator

Maxgeek AVC63-7 Diesel Generator AVR Automatic Voltage Regulator Three Phase 500KVA for Basler Generator

Description:
AVC63-7F is a half-wave phase controlled thyristor type automatic voltage regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR.

Specification:
Voltage: 190-240V AC
Frequency: 50/60Hz, jumper selectable
Current: continuous 3.5A, intermittent 7A for 10secs (52/105V DC)
Resistance: min 15Ω, max 100Ω
Voltage Build-up: residual voltage at AVR terminal ＞5V AC
Voltage Regulation: ＜±1% with 4% engine governing
Operating Temperature: -40℃ to 60℃
Storage Temperature: -65℃ to 85℃
External Volts Adjustment: ±10% with 2k ohm 1 watt trimmer
EMI Suppression: internal electromagnetic interference filtering
Unit Power Dissipation: max 8 watt
Under Frequency Protection: 60Hz system presets knee point at 54-61Hz; 50Hz system presets knee point at 45-51Hz
Dimensions: 99.5*67*47.5mm (L*W*H)

Features:
Integrated circuitry for compact size, simplicity, high reliability.
Extremely rugged.
Exciter field current 7A continuous, 11.5A forcing.
Regulation accuracy better than 0.25% no load to full load.
Fast response.
Frequency compensation.
Overexcitation shutdown.
Built-in parallel droop compensation.
EMI suppression.

Package List:
1 x Automatic Voltage Regulator
