Description:
BACO6A switching battery charger adopts the latest switch power component switch is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.

Specification:
Battery Voltage: 12V/24V
Max Charge Current: 12V: 6A, 24V: 3A
Charge Voltage Range: 12V: 13~14.5V, 24V: 26~29V
Charge Current Range: 12V: 3~7A, 24V: 1.5~3.5A
AC Voltage: 95~280V AC
AC Frequency: 50Hz/60Hz
Power Consumption: 12V: 120W, 24V: 115W
No-load Power Consumption: less than 3W
Efficiency: 12V: more than 80%, 24V: more than 85%
Working Temperature: -40~60℃
Storage Temperature: -40~85℃

Features:
1. Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency.
2. Two-stage charging method (constant current firstly and then constant voltage) fully considering charging property of the lead-acid batter , can avoid overcharging and extent extend the battery life to the fullest.
3. With short circuit and reverse connection protection.
4. Charging voltage and current can be adjusted via potentiometer on the spot.
5. Suitable for 12V and 24V batteries, corresponding types are BACO6A-12V and BACO6A-24V.
6.  LED display: Power indication and charging indication.

Package List:
1 x Switch Supply Power

Note: 12V or 24V optional.

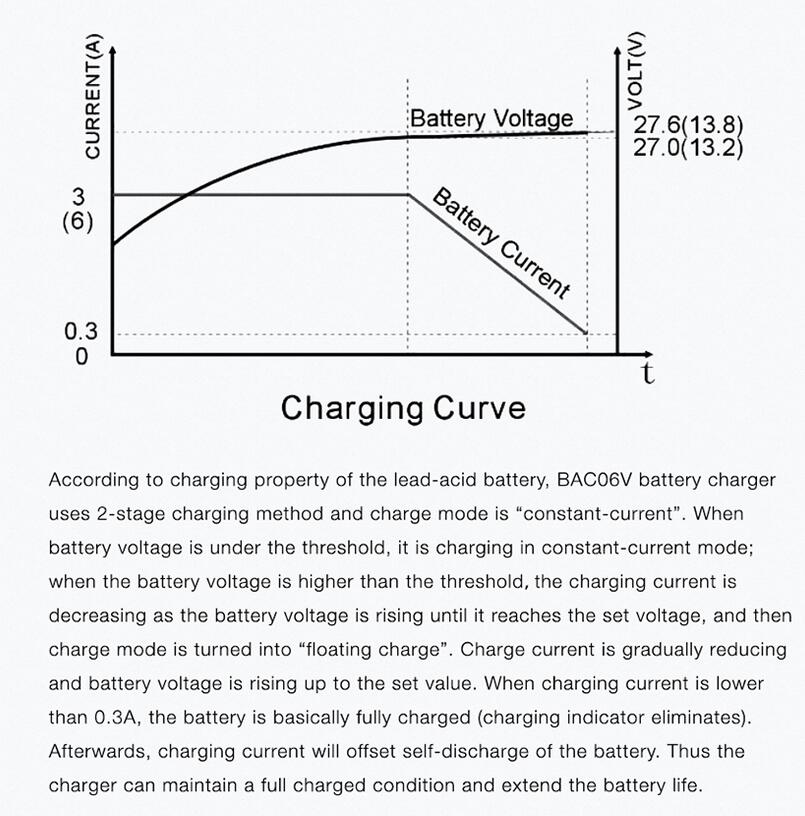

Charging Principle:
