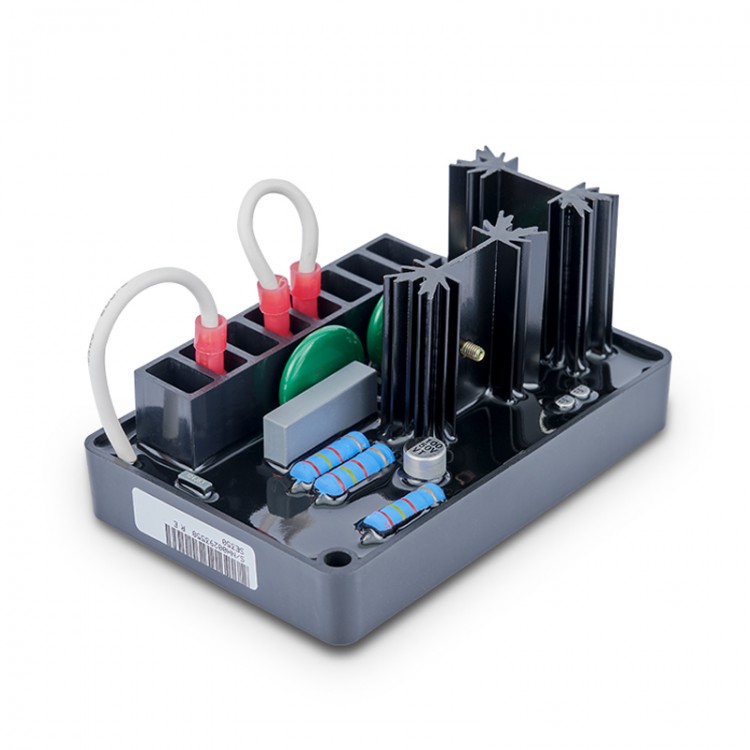

Description:
Automatic voltage regulator AVR 60KVA BE350 is a half-wave phase controlled thyristor type automatic voltage regulator and forms part of the excitation system for a brushless generator.

Specification:
Sensing&Power Input: 190-240 Vac
Burden: 500VA
Output Power Continuous: 73 Vdc at 3.5Adc (255W)
Output Power Forcing (240 Vac Input Power): 105 Vdc at 5Adc (255W)
Regulation: 1%
Remote Voltage Adjustment Range: ±10% with 2000 ohm rheostat; ±5% with 1000 ohm rheostat
Frequency Compensation: adjustable
Roll Off Frequency: 54-61Hz for 60Hz, 45-51Hz for 50Hz
Operating Temperature: -40℃~60℃
Storage Temperature: -65℃~85℃
Power Dissipation: 8W maximum
Voltage Buildup: internal provisions for automatic voltage buildup from generator residual voltage as low as 10 Vac
EMI Suppression: internal electromagnetic interference, filter (EMI filter)

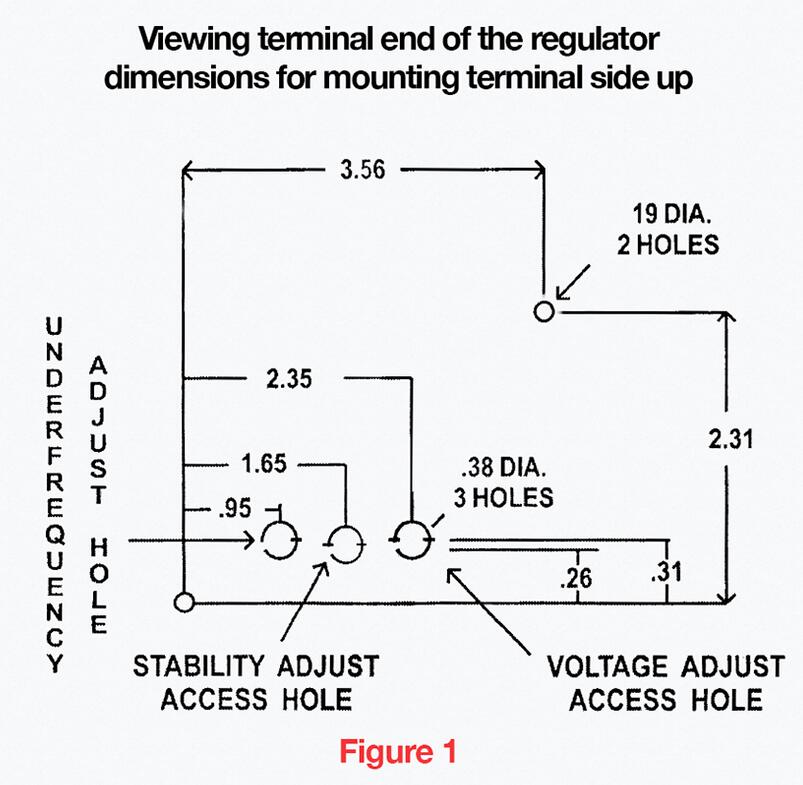

Fuse:
A4 Amp, 250 V, 5 x 20mm fuse is supplied with the regulator (Part A-527066). It can be located on the rear face of the voltage regulator.

Exciter Poner Circuit:
Connect the regulator wire F+ to the generator F+ or F1 field terminal.
Connect the regulator wire F- to the generator F- or F2 field terminal.

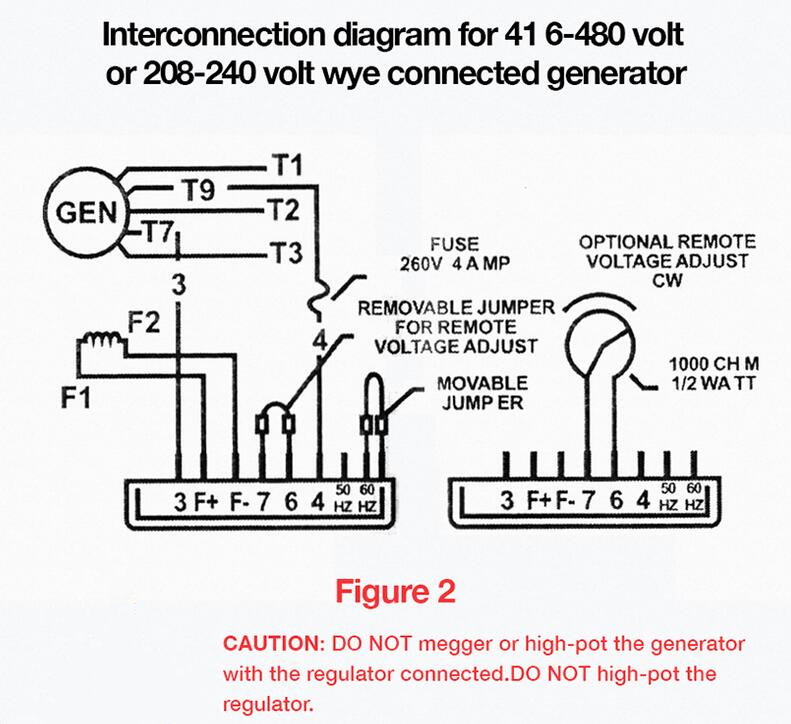

See Figure 2 for typical connection diagram.

Sensing/Power Input Circuit:
Input power and sensing is achieved through terminals 3 and 4.
The voltage input requirement of the BE350 is 190 to 240 Vac. See Figure 2.

Package List:
1 x Generator Voltage Regulator
