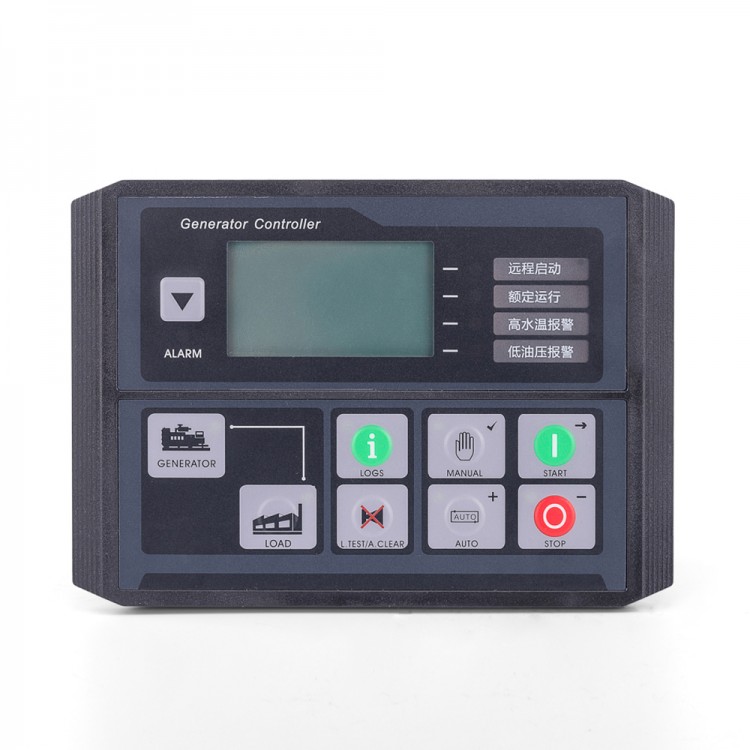

Maxgeek DC50D Generator Controller Diesel Genset Control Module High Power Intelligent Control Panel

Maxgeek DC50D Generator Controller Diesel Genset Control Module High Power Intelligent Control Panel

Description:
-This series of controllers are specially designed for starting, stopping, parameter monitoring and fault monitoring of generating units and have parameter setting function.
-The controller uses a dot matrix LCD screen to display the relevant parameters of the generator set, and through the LCD screen to display the relevant fault status. It can effectively protect the parking when the generator unit is not working properly.
-LCD display is used in the controller. Simplified Chinese and English display interfaces are optional, and any language interface can be customized according to customer's requirements. All parameters of the controller can be adjusted by keys on the controller panel or adjusted and monitored by PC through RS485 interface. It can be widely used in various types of generator automation systems.

Parameters:
Working voltage: DC 8V to 36V continuous power supply
Power consumption: standby: 24V: MAX 1W; work: 24V: MAX 5W
AC voltage input: 20VAC-276VAC(ph-N)
Two-phase and Three-wire 20VAC-276VAC(ph-N)
Three-phase four-wire 20VAC-276VAC (ph-N)
Signal range of engine speed: 150-9000Hz
Maximum cumulative running time: 99999.9 hours (minimum storage time 6 minutes)
Fuel output: 5Amp DC+VE power supply voltage output
Motor output: 5Amp DC+VE power supply voltage output
Configurable relay 1: 5Amp DC+VE power supply voltage output
Configurable relay 2: 5Amp DC+VE power supply voltage output
Configurable relay 3: 5Amp DC+VE power supply voltage output
Configurable relay 4: 5Amp DC+VE power supply voltage output
Configurable relay 5: 5Amp DC+VE power supply voltage output
Configurable relay 6: 5Amp DC+VE power supply voltage output
Excitation Control: 2.5 Amp DC+VE power supply voltage output
Switching Input: battery cathode is effective
Working Conditions: - 20℃~75℃
Storage Conditions: - 40℃~85℃
Protection Level: IP55: When a waterproof ring is installed before the controller and control screen.
Shape Size: 189mm*134mm
Opening Dimension: 160 mm*120 mm

Features:
-Used for single-machine automation, through the remote start signal to control the automatic start and stop of generating units
-It is controlled by imported high-performance single-chip microcomputer.
-3.0 inch white backlight LCD display, with Chinese and English switchable, can be customized according to customer needs in various languages;
-It has RS485 communication interface and can realize the function of "three remote" by using MODBUS protocol.
-Built-in real-time clock, with timing function and automatic maintenance function;
-It has the function of black box, which can save the relevant parameters of the unit in case of failure alarm in real time.
-Parameter Setting Function: Allow users to change their parameters. All parameters can be adjusted from the controller or by PC through RS485 interface, which is convenient for field debugging and batch production.
-Boot screen can be set, user LOGO can be customized display.
-It has 8 relay outputs, of which 6 relay functions can be configured, with up to 53 functions per channel (DC50D has 50 functions) optional.
-It has four configurable function switches input, and up to seven functions can be selected for each channel.
-It has three sensor analog input interfaces, sensor input type can be configured, and three display units can be configured.
-The panel has four configurable LED lights, each of which has eight functions.
-Acquisition and display of various engine and generator parameters;
-Sensor curves can be customized by panel keys and PC software.
-Applicable to three-phase four-wire, single-phase two-wire, two-phase three-wire (120V/240V) power supply 50/60HZ system.
-Various starting conditions (speed, frequency, oil pressure) can be selected.
-Control and protection functions: automatic starting/stopping of generating units, ATS switching and perfect fault display and protection functions.
-Standardized waterproof ring, installed rear panel protection performance up to IP55 level.
-Modular design: All connections are completed through European terminals. It is very easy and convenient to assemble, connect, maintain and replace equipment.

Parametric Display:
-Engine speed
-Engine speed
-Engine water temperature
-Engine oil pressure
-Engine oil temperature
-Engine cylinder temperature
-Engine oil level
-Engine battery voltage
-Unit operation time
-Cumulative unit operating time
-Countdown of unit maintenance
-Three-phase voltage V (DC52D only)
-Generator three-phase voltage L-N
-Generator three-phase line voltage L-L
-Generator three-phase current A
-Generator frequency Hz
-Generator power factor COS phi
-Active power of generator KW
-Generator apparent power KVA
-Reactive power of generator KVar
-The generator generates electricity Kwh this time
-The generator generates cumulative electric energy Kwh
-Alarm protection
-Warning of Battery Voltage Too Low
-Low oil level warning
-Maintenance time to warn
-Current imbalance warning
-Open circuit alarm of oil pressure sensor
-Open circuit alarm of water temperature sensor
-Open circuit alarm of oil temperature sensor
-Open circuit alarm of cylinder temperature sensor
-Open circuit alarm of oil level sensor
-Start Failure Alarm
-Outage failure alarm
-Emergency Parking Alarm
-Low oil pressure stop alarm
-High water temperature stop alarm
-High oil temperature shutdown alarm
-High Cylinder Temperature Shutdown Alarm
-Low water level stop alarm
-Overspeed stop alarm
-Underspeed stop alarm
-Over-frequency stop alarm
-Underfrequency stop alarm
-Overvoltage stop alarm
-Under-voltage stop alarm
-Overcurrent stop alarm
-Speed signal disappearance stop alarm
-Parametric specification
-Projects

Package List:
1 x Generator Controller
