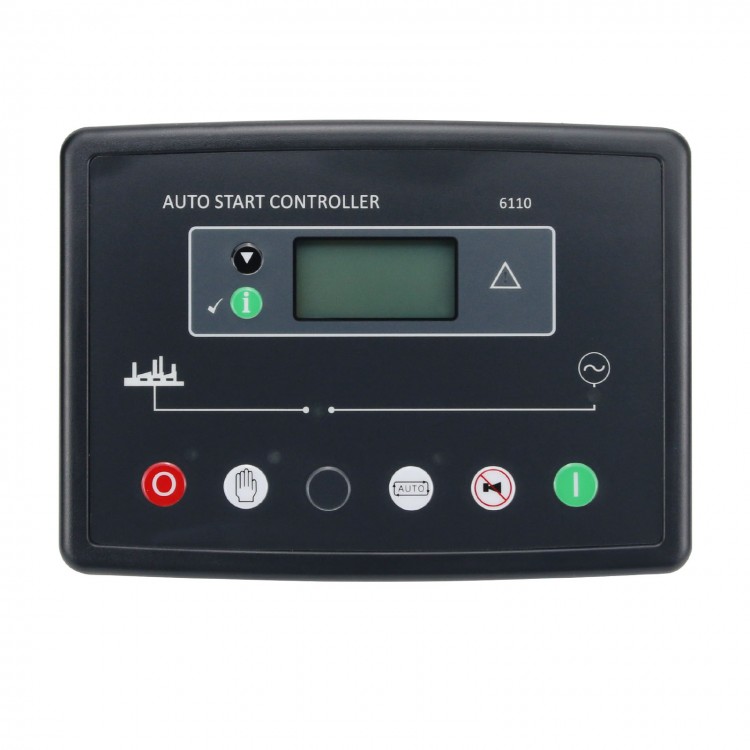

Maxgeek DSE6110 Generator Controller Auto Start Diesel Genset Control Panel Alternator Controller Board
Description:
-The DSE6110 is an auto start control module, suitable for a wide variety of single gen-set applications.
-Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.
Specification:
Operating Voltage: DC 8.0V to DC 35.0V, continuous power supply
Power Consumption: <3W (standby:<2W)
Alternator Input Range:
15V-360V AC (ph-N)
3-phase 4-wire: 26V-620 V AC (ph-ph)
3-phase 3-wire: 15V-360 V AC (ph-N)
Single-phase 2-wire: 15V - 360 V AC (ph-N)
Alternator Frequency: 50/60Hz
Speed Sensor Voltage: VPP 2.2-100Vpp (Peak to peak)
Speed Sensor Frequency: 10000Hz (max)
Start Relay Output: 16A controller power voltage output
Fuel Relay Output: 16A controller power voltage output
Programmable Relay Output 1: 7A 250VAC voltage free output
Programmable Relay Output 2: 7A 50VAC voltage free output
Programmable Relay Output 3: 16A 250VAC voltage free output
Programmable Relay Output 4: 16A 250VAC voltage free output
Case Size: 210mm x 152 mm x 48 mm
Panel Cutout: 186mm x 141mm
C.T.: secondary 5A rated
Working Temperature: -25~+70℃
Humidity: 20~90%
Storage Temperature: -40~+85℃
Protection Level:
IP55: when waterproof rubber seal installed between the controller and panel fascia.
IP42: when waterproof rubber seal is not installed between the controller and panel fascia.
Insulating intensity object: input/output/power
Quote standard: IEC688-1992
Test way: AC 1.5kV/1min leakage current:3mA
Features:
-Back-lit text LCD display
-Front panel editing
-LED and LCD alarm indication
-Power save mode
-CAN and magnetic pick-up/Alt. versions available (specify on ordering)
-PC and front panel configuration
-6 digital inputs
-3 analogue inputs
-6 outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)
-Configurable timers and alarms
-Alternative configuration
-Event Log (10)
-Remote Start input
-3 phase generator monitoring
-Current monitoring and protection
-Battery voltage monitoring
-Engine pre-heat
-Hours counter
-Comprehensive shutdown or warning on fault condition
Package List:
1 x Generator Controller
