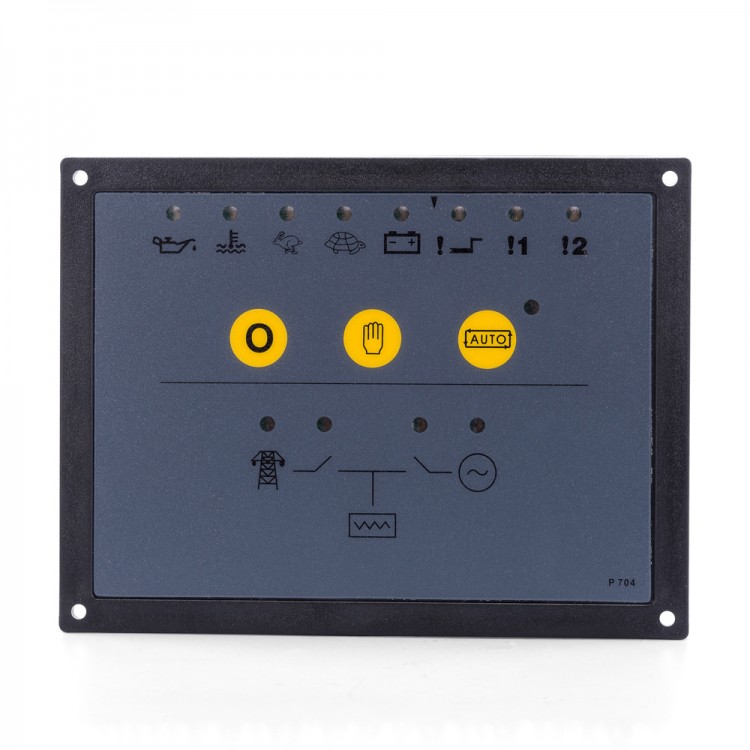

Maxgeek DSE704 Generator Controller Auto Start Control Panel AMF Control Module Genset Parts

Maxgeek DSE704 Generator Controller Auto Start Control Panel AMF Control Module Genset Parts

Description:
-The 704 is an auto mains failure control module that offers an excellent range of engine monitoring and protection features. The module has been designed to monitor engine temperature, low oil pressure, fail to start, charge failure, over speed and under speed.
-When the module detects a fault condition it automatically shuts down the engine. The module also includes two user configurable auxiliary inputs.

Specification:
DC power supply: 8V to 35V continuous
Maximum operating current: 50mA
Typical current: 12mA
Charge fail: 8 volt charge fail at 12 volts; 16 volt charge fail at 24 volts
Alternator input range: 75V(L-N) to 333V AC (L-N) absolute maximum
Alternator input frequency: 50Hz – 60Hz at rated engine speed
Start & fuel outputs: 1.2A DC at supply voltage
Auxiliary outputs: 1.2A DC at supply voltage
Dimensions: 165 mm x 125 mm x 29 mm
Cut-out size: 149 mm x 109 mm

Cranking Dropouts:
Able to survive 0V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries.

Features:
-Automatic mains (utility) supply monitoring
- Automatic shutdown when fault conditions are detected
- Manual start
- Engine pre-heat
- Engine monitoring and protection features
- Protected Solid State (PSS) outputs
- Front panel mounting
- Front panel programming
- Tamper proof engine hours counter
- Remote start
- LED indicators
- Configurable timers
- Configurable outputs
- Single/three phase mains sensing

Advantages:
- Transfers between mains (utility) and generator power
- On-site module configuration to match user requirements
- Hours counter provides accurate information for monitoring maintenance and warranty periods
- Multiple engine parameters are monitored simultaneously

Package List:
1 x Generator Controller
