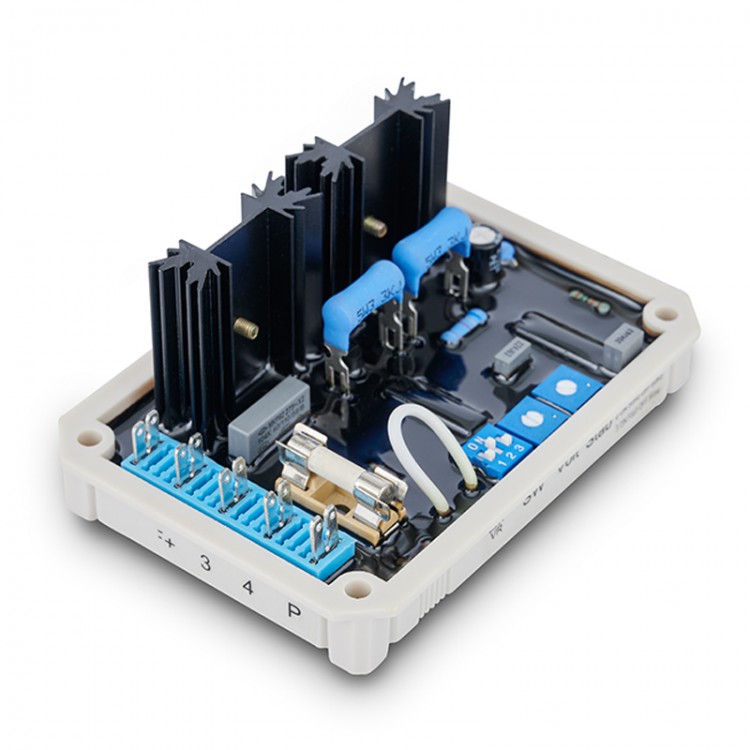

Maxgeek EA04C Genset AVR Generator Automatic Voltage Regulator Single Three Phase Voltage Stabilizer Board

Maxgeek EA04C Genset AVR Generator Automatic Voltage Regulator Single Three Phase Voltage Stabilizer Board

Description:
Compatible single phase automatic voltage regulator AVR EA04C for diesel generator is a half-wave phase controlled thyristor type automatic voltage regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/-1.5%.

Specification:
Sensing Input: voltage 160 to 265V AC/ 300 to 550V AC
Frequency: 50/60Hz selectable
Power Input: voltage 90 to 300V AC 1 phase
Excitation Output Voltage: 63VDC@240VAC input, continuous 4A, Max.7A for 60 seconds
Excitation Resistance: Min. 15 ohms, Max. 100 ohms
Voltage Regulation: less than ±1 % (with 4% engine governing)
Build Up Voltage: residual volts at power input terminal >5Vac 25Hz
Thermal Drift: 0.05% per ℃ change in AVR ambient
EMI Suppression: internal electromagnetic interference filtering
Static Power Dissipation: Max 8W
External Volts Adjustment: ±5% with 1KΩ 1 watt trimmer
Over Excitation Shutdown: field volts shut down after a time delay if exciter field volts exceed 100 ±5V DC
Under Frequency Protection: 50Hz system presets knee point at 45Hz, 60Hz system presets knee point at55Hz
Relative Humidity: Max. 95%
Operating Temperature: -40℃ to + 60℃
Storage Temperature: -40℃ to + 85℃
Vibration: 1.5Gs @ 5 to 30Hz, 5.0Gs @ 30 to 500Hz

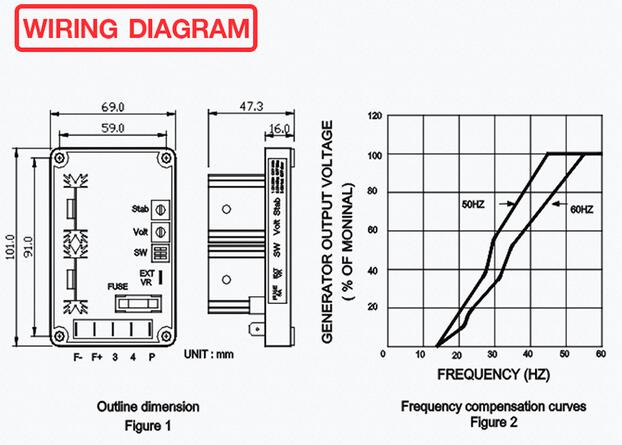

Size: 107*75*47mm (L*W*H)

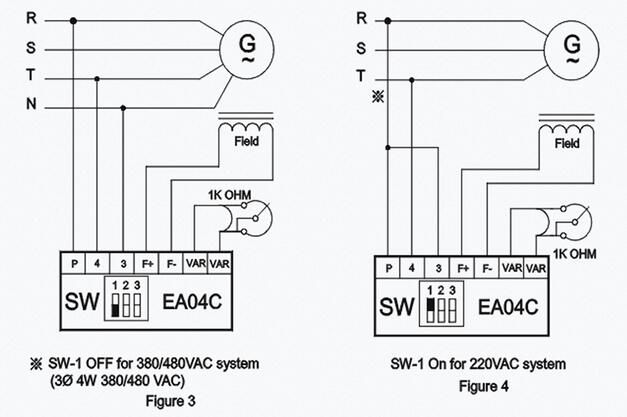

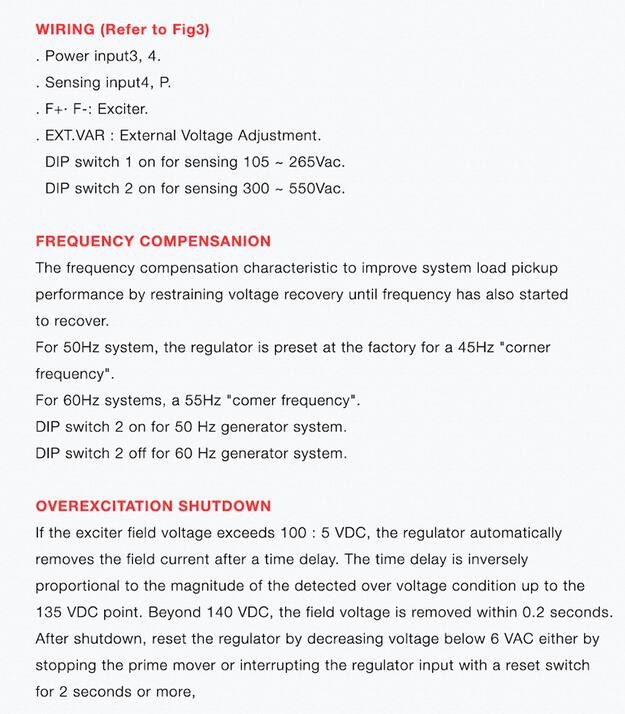

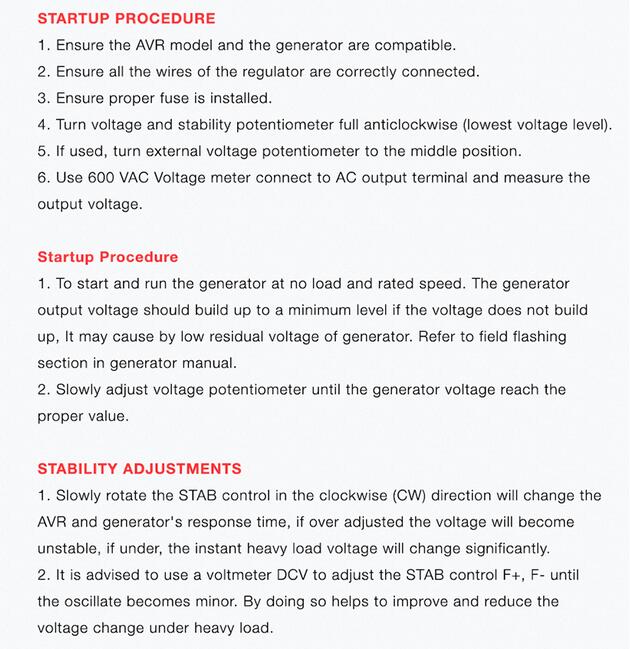

Package List:
1 x Automatic Voltage Regulator
