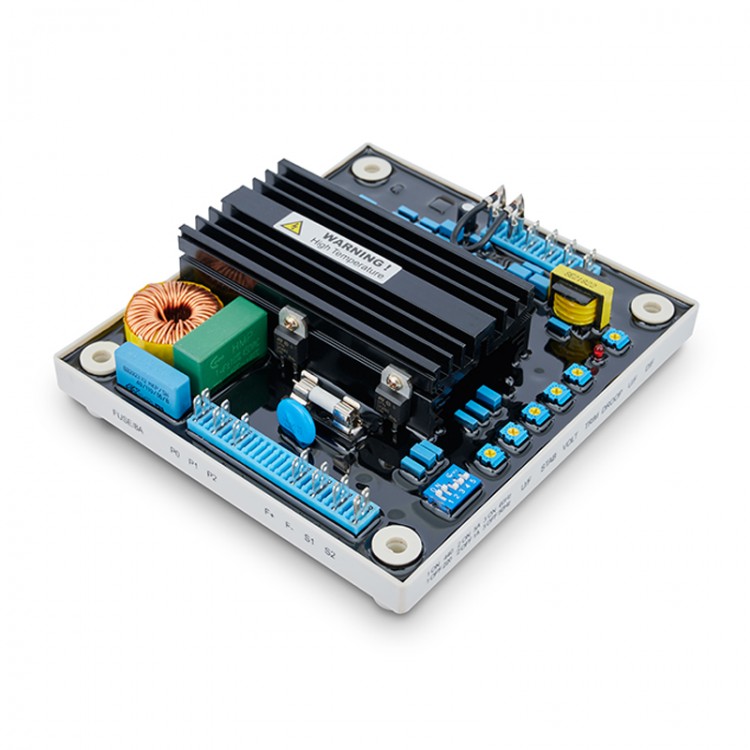

Maxgeek EA125-8FC Generator Automatic Voltage Regulator Brushless Generator AVR Voltage Stabilizer
Specification:
Sensing Input: voltage 220/440 VAC ,50/60 Hz, 190-290 VAC @ 220 VAC, 330-515 VAC @ 440 VAC
Power Input: input 30-260 VAC 40-500Hz, output 85 VDC @ 110 VAC power input, 170 VDC @ 220 VAC power input
Output: current continuous 8A DC, maximum 40A DC for 60 sec
Frequency: 50/60 Hz (SW3 selectable), 40-50Hz @ 50Hz preset 47Hz, 49-60Hz @ 60Hz preset 57HZ
Build Up Voltage: residual volts at AVR terminal >5V AC @ 25Hz
Voltage Adjustment: ＜0.5% (engine speed variation within 4%)
Thermal Drift: ＜0.45% @ -35℃~+65℃
External Volts Adjustment VR: ±10% with 1k ohm 0.5 watt trimmer
Excitation Resistance: ＞9 ohm
Current Compensation: 1 or 5A ＞0.2VA (SW2 selectable), max. ±7% @ P.F. ±0.7
Analogue Voltage Input: Un 0~15% @ 0~10V DC
Respond Time: ＜1 cycle
Unit Power Dissipation: max. 12W
Dimensions: 140 x 125 x 39mm
Features:
1. Adopt high quality electronic components, and accuracy process for the durability.
2. Quick adjustment, the voltage regulation rate is less than ±0.5%.
3. Professional design, it can provide stable performance.
4. Low power consumption and high stability.
5. This voltage regulator can fit for brushless generator.
Package List:
1 x Generator Voltage Regulator
