| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $133.00 | $130.28 | $126.21 | $120.78 | Contact US |

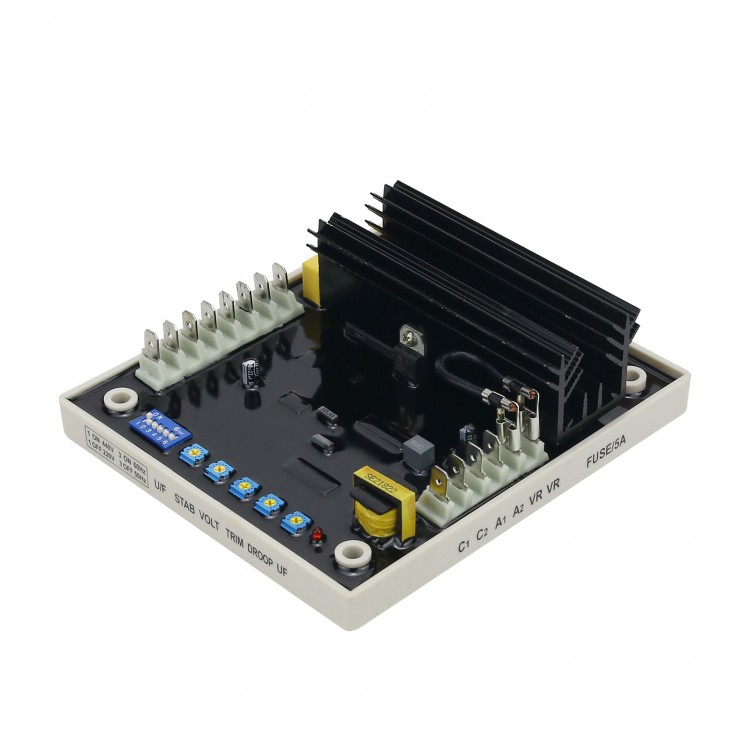

Maxgeek EA63-5 Generator AVR Automatic Voltage Regulator Voltage Stabilizer Board for Basler Diesel Engine
Specification:
Sensing Input (S1, S2):
Voltage: 220/440 Vac, 1 phase; Max 12 watts; 190-290 Vac @ 220 Vac; 330-515 Vac @ 440 Vac
Frequency: 50/60Hz, SW1 selectable
Power Input (P1 , P2):
Voltage: 30-260 Vac, 1 phase
Frequency: 40-500Hz
Excitation Output (F+, F-):
Voltage: Max. 85 Vdc @ power input 110 Vac
Current: continuous 5A, intermittent 10A for 60 secs
Resistance: ＞9 ohms
Fuse spec.: slow blow 5 x 20mm S505-5A/250V
External Voltage Adjustment (VR, VR): Max. +/-5% @ 1K ohm 0.5 watt potentiometer; Max . +/-10% @ 2K ohms 0.5 watt potentiometer; External filter capacitor terminal (C+, C-)
Voltage Regulation: less than +/-0.5% (with 4% engine governing)
Build Up Voltage: 5 Vac 25Hz residual volts at power input terminal
Typical System Response: less than 1 cycle
Static Power Dissipation: Max. 12 watts
Quadrature Droop Input (C1, C2): CT 5A or 1A greater than 5VA, SW2 selectable; Max. +/-7% @ P.F. +/-0.7
Analogue Voltage Input (A1, A2): CT 5A or 1A greater than 5VA, SW2 selectable; Max. +/-7% @ P.F. +/-0.7
Under Frequency Protection (Factory Presets): 50/60Hz, SW3 selectable; 40-50Hz @ 50Hz preset 45Hz; 49-60Hz @ 60Hz preset 55Hz
Voltage Thermal Drift: less than 35% at temperature range -40℃~+60℃
Environment:
Operation temperature: -40℃~+60℃
Storage temperature: -40℃~+85℃
Relative humidity: Max. 95%
Vibration: 3Gs @ 100-2KHz

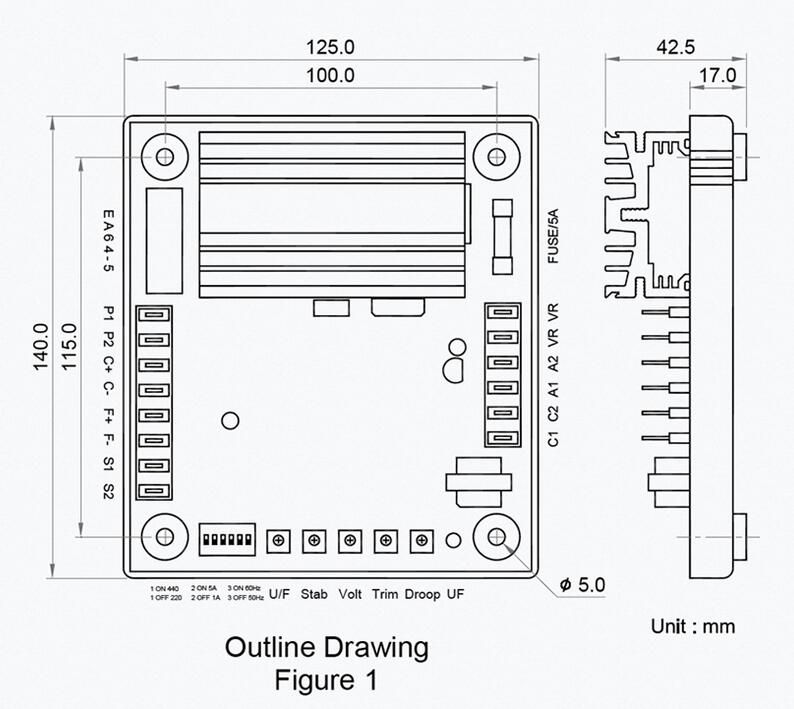

Dimensions: 140*125*42.5mm (L*W*H)
Package List:
1 x Automatic Voltage Regulator

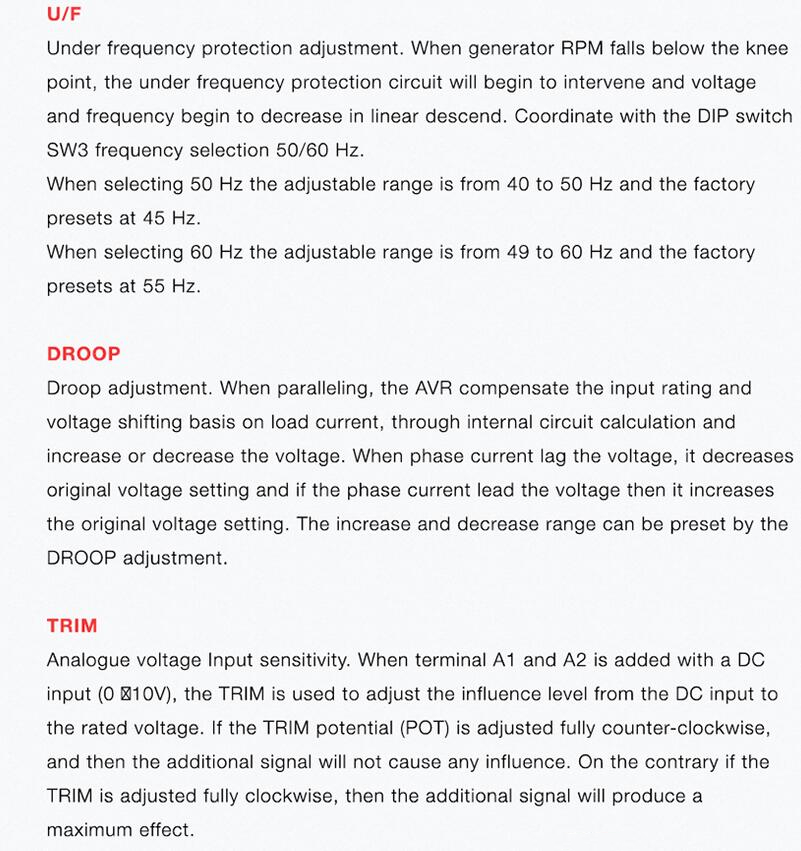

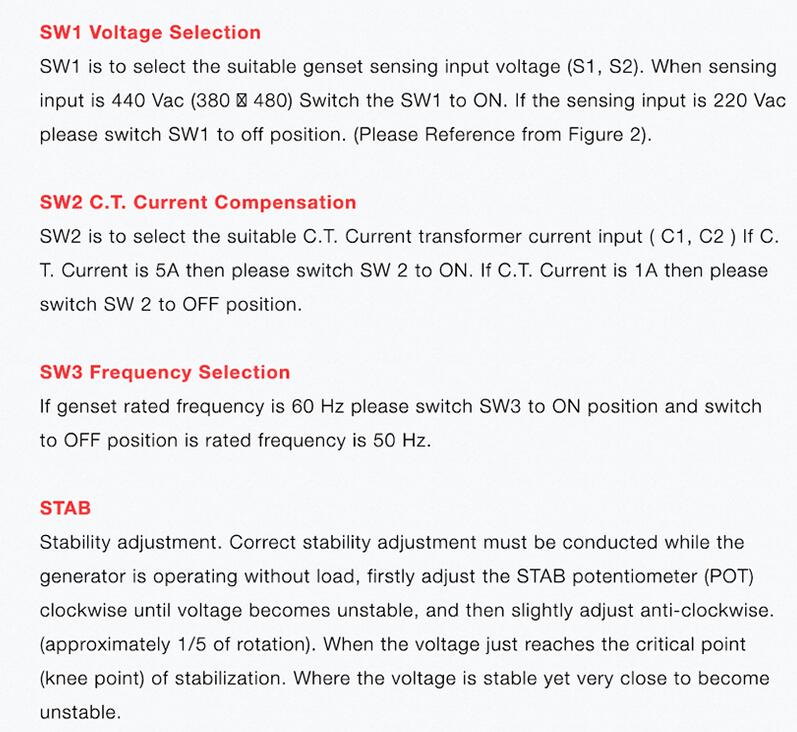

Adjustment:
