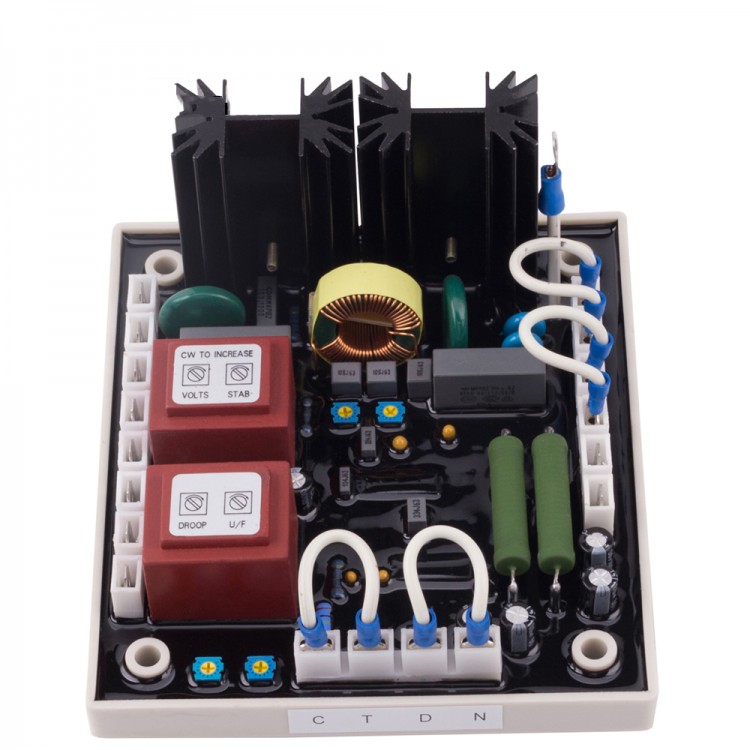

Maxgeek EA63-7D Generator AVR Automatic Voltage Regulator Voltage Stabilizer Board Generator Parts
Features:
-Detect Input voltage 220/440V AC 10% single phase
-Frequency 50/60HZ with jumper settings
-Power input voltage 180-260V AC single-phase two-wire
-Frequency 50/60HZ
-Maximum output voltage 63V DC
-Continuous current 7A, intermittent 15A for 15 seconds
-Minimum 6 ohm resistor 105 ohm maximum
-Voltage Regulation <1% change in engine speed <4%
-AVR voltage based on the output of the voltage 5V AC need more residual magnetism
-Droop CT input 5A
-The maximum sensitivity corresponding to 4% drop PF0.7 2A maximum input 5A
-Stability of each degree temperature difference changes, voltage drift of 0.05%
-When using an external voltage adjustment potentiometer 1K ohms 1 watt of 10%
-Voltage adjustment range of 180-277VAC @ 220V 360-554VAC @ 440V
-Built-in EMI filter EMI suppression
-Maximum power consumption 20W
-Turning point for the low-frequency protection 60HZ 45HZ 55HZ 50HZ turning point
-Overexcitation automatically turn off automatically turns off the excitation voltage exceeds 65 2VDC by the delay after
Package List:
1 x Generator Voltage Regulator
