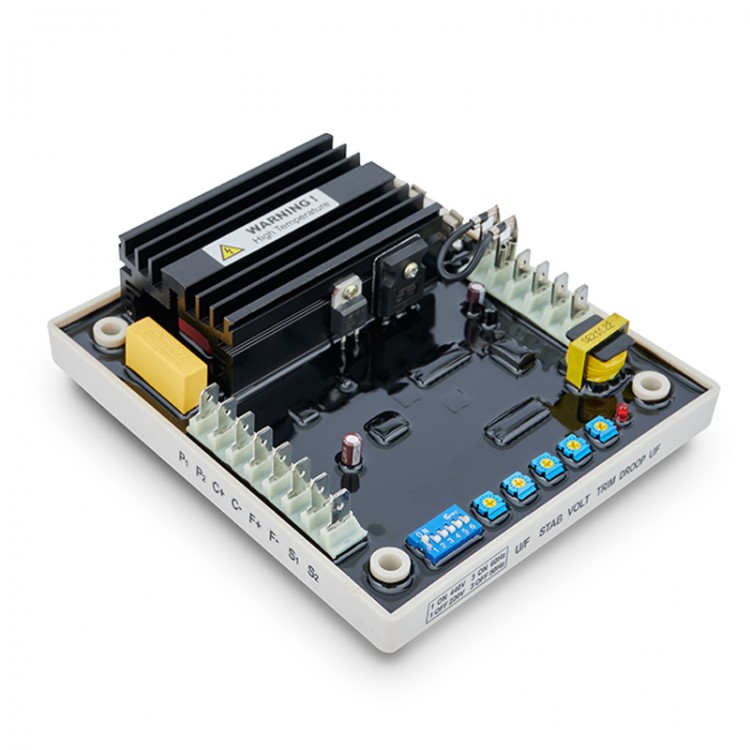

Maxgeek EA64-5 Generator AVR Automatic Voltage Regulator Genset Voltage Stabilizer Board Generator Parts
Specification:

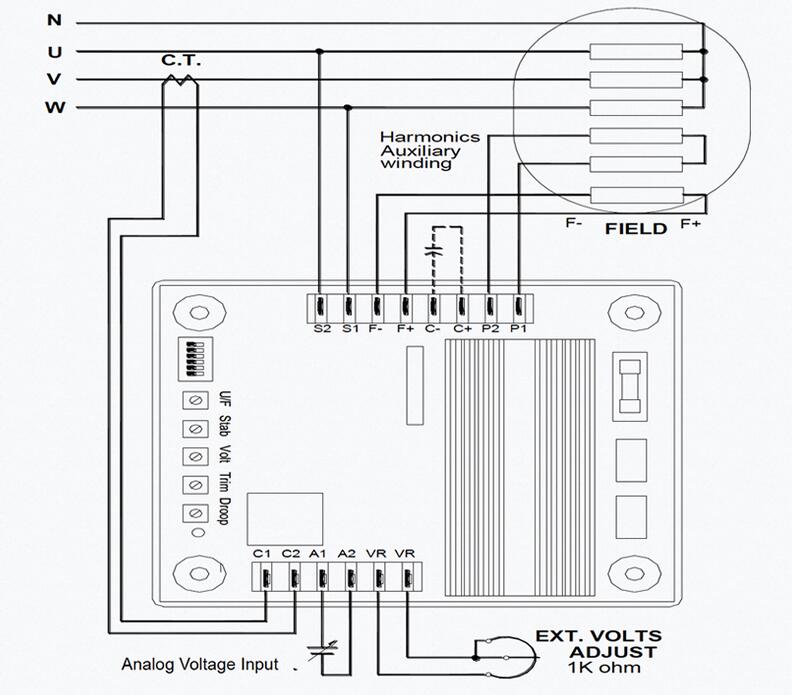

Sensing Input (S1, S2):
Voltage: 220/440 Vac, 1 phase Max 12 watts; 190-290 Vac @ 220 Vac; 330-515 Vac @ 440 Vac

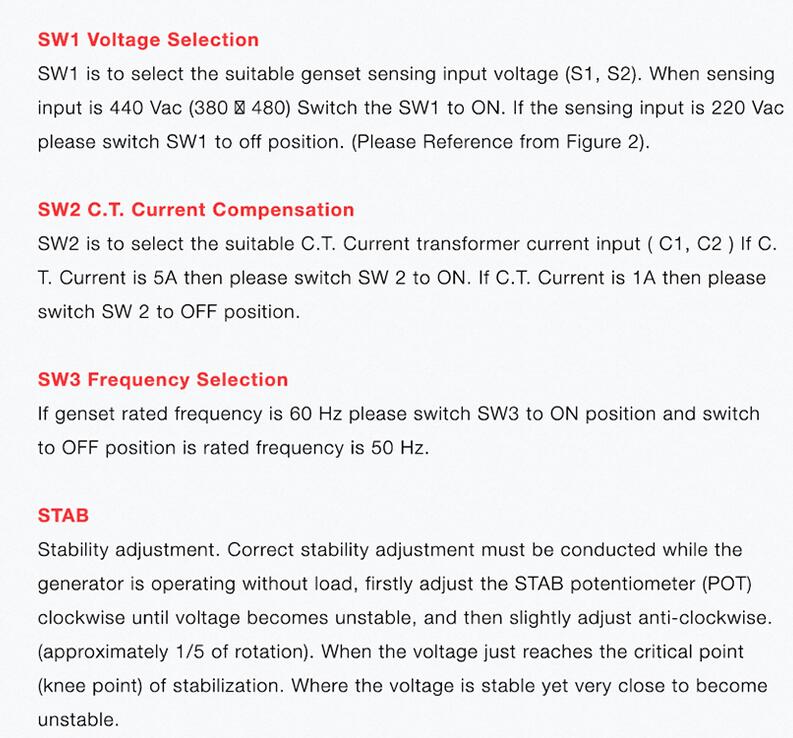

Frequency: 50/60Hz, SW1 selectable
Power Input (P , P2):
Voltage: 30-260 Vac, 1 phase
Frequency: 40-500Hz
Excitation Output (F+, F-):
Voltage: Max 85 Vdc @ power input 110 Vac
Current: continuous 5A, intermittent10A for 60 secs
Resistance: >9 ohms
Fuse: slow blow 5 x 20mm S505-5A/250V
External Voltage Adjustment (VR, VR):
Max. +/-5% @ 1K ohm 0.5 watt potentiometer
Max . +/-10% @ 2K ohms 0.5 watt potentiometer
External filter capacitor terminal (C +, C-)
Voltage Regulation: less than + -0.5 % (with 4% engine governing)
Build Up Voltage: 5 Vac 25Hz residual volts at power input terminal
Typical System Response: less than 1 Cycle
Static Power Dissipation: Max 12 watts
Quadrature Droop Input (C1, C2): CT 5A or 1A greater than 5VA, SW2 selectable, Max +/-7 % @ P.F +/-0.7"
Analogue Voltage Input (A1, A2): CT 5A or 1A greater than 5VA, SW2 selectable, Max +/-7 % @ P.F +/-0.7"

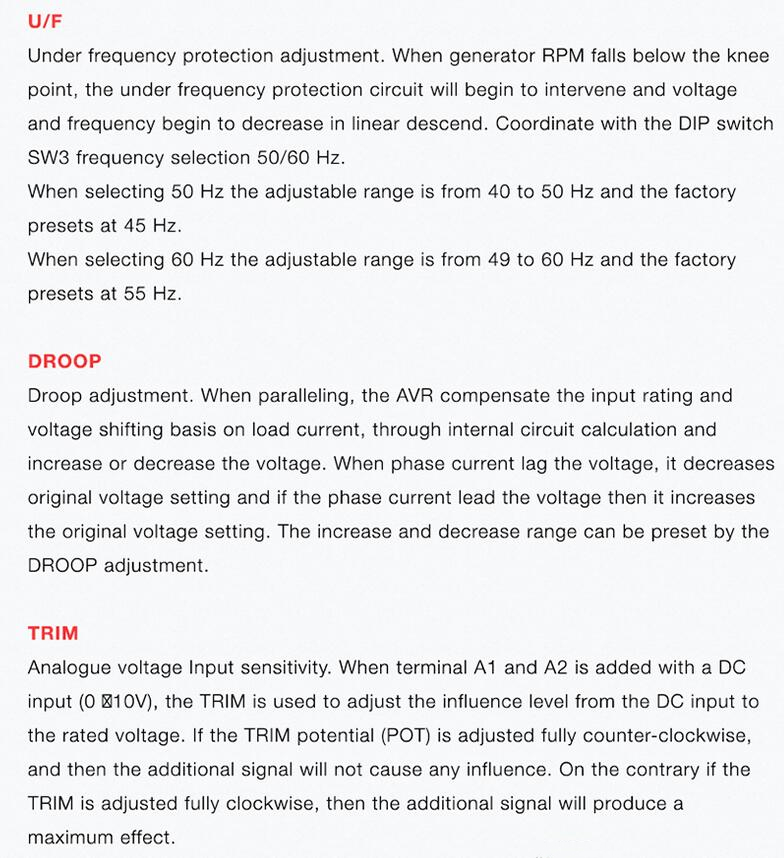

Under Frequency Protection (Factory Presets):
50/60 Hz, SW3 Selectable
40-50Hz @ 50Hz Preset 45Hz
49-60Hz @ 60Hz Preset 55Hz
Voltage Thermal Drift: less than 3% at temperature range -40℃ to +70℃
Operation Temperature: -40℃ to +60℃
Relatively Humidity: Max. 95%
Vibration: 3Gs @ 100-2KHz

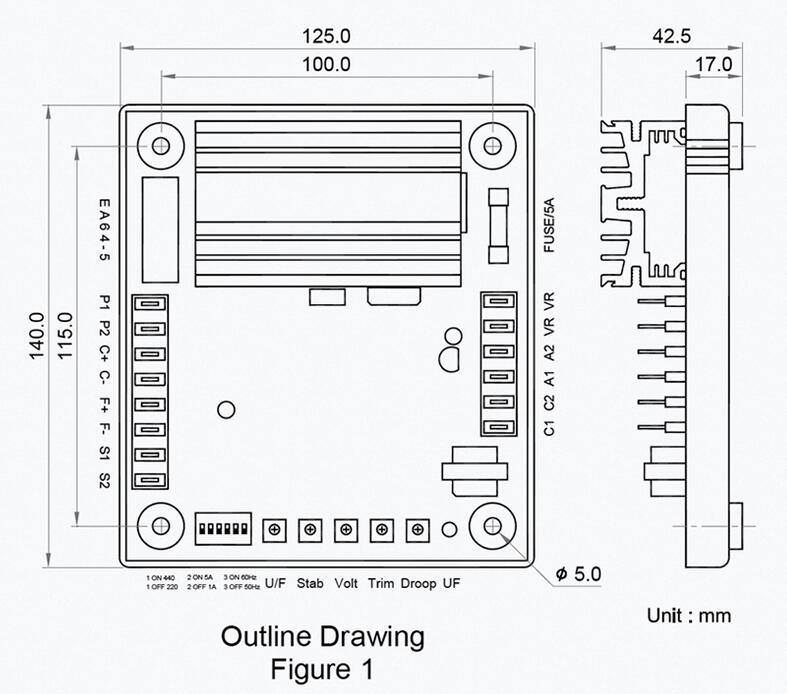

Size: 140*125*42.5mm (L*W*H)
Package List:
1 x Automatic Voltage Regulator
