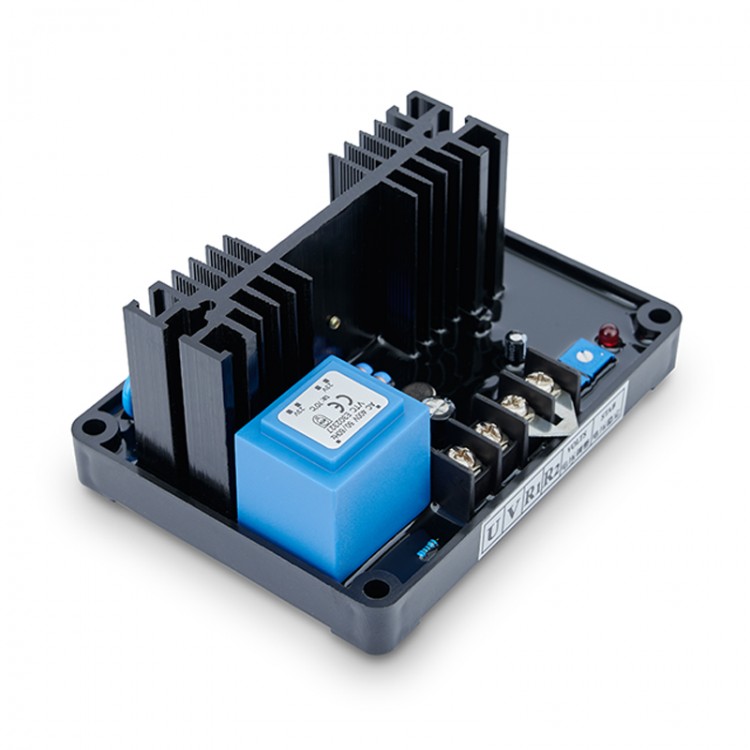

Maxgeek GB110 Diesel Generator AVR Automatic Voltage Regulator Brush Excitation Voltage Stabilizer Board
Description:
-Brush Type Generator Single Phase AVR GB-110 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.

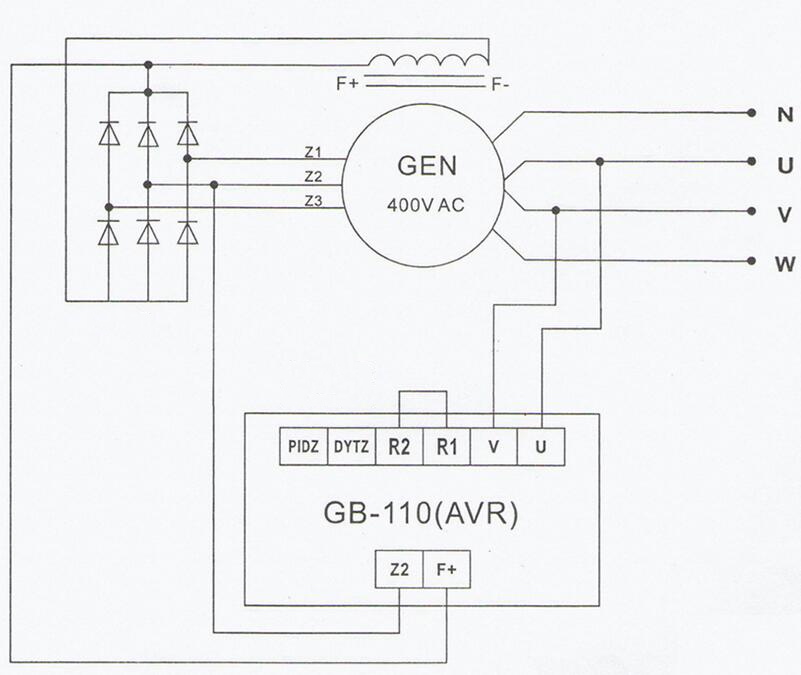

-Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/-1.5%.
Specification:
Voltage: 400VAC
Frequency: 50/60Hz
Excitation Voltage: 20-100VDC
Regulation: +/-1% RMS with 4% engine governing
Voltage Build-up: residual voltage at AVR terminal ≥5VAC
External Voltage Regulation: +/-10% with 1k ohm 1 watt trimmer
Package List:
1 x Generator Voltage Regulator
