Maxgeek GT241 154F Gasoline Generator Carburetor Kit Dual Use LPG/NG Manual Carburetor Generator Parts

Maxgeek GT241 154F Gasoline Generator Carburetor Kit Dual Use LPG/NG Manual Carburetor Generator Parts

P15ALPG dual-fuel carburetor usage mode:
1. Suitable for 87cc dual-fuel carburetor series. (for 154/156f, can also be used for other similar types of generators)
2. Suitable for generator set.

Gas Parameters:
Mouth pressure: 30-1560KPa
Outlet pressure: 2.80±0.5KPa
Flow range: 0.6 cubic meter/h
Closing pressure: <3.5KPa


Gas Start:

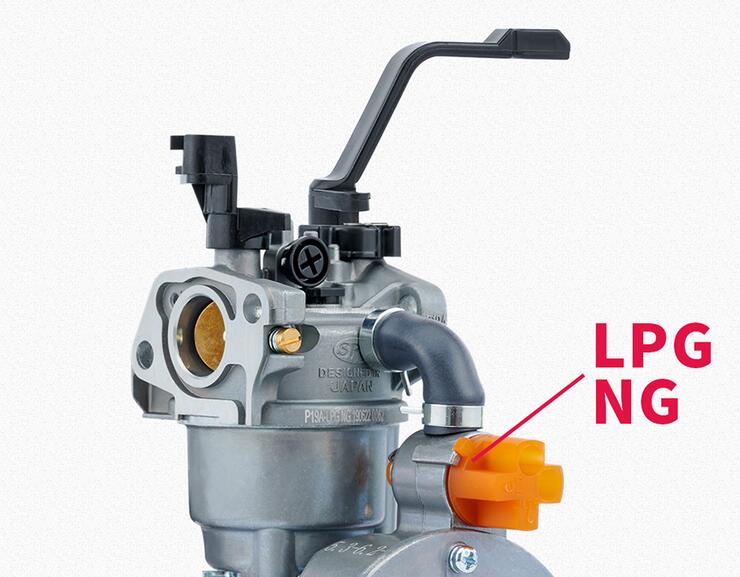

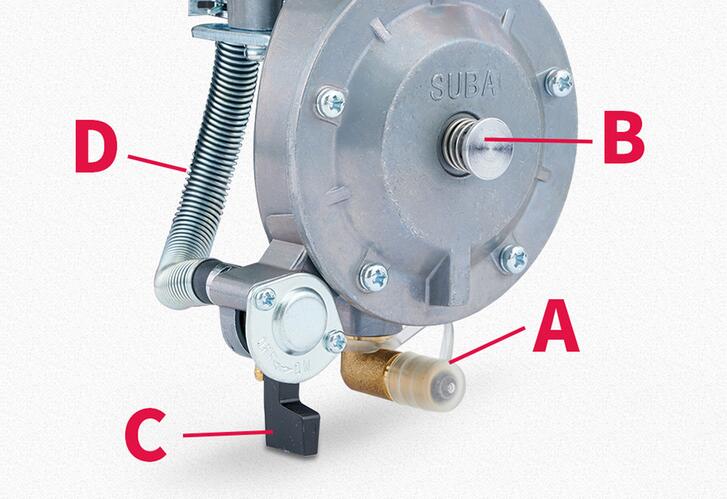

1. Connect the gas tank pressure reducing valve with the carburetor gas valve (A) with a gas hose, select the switch (LPG or NG) airway, and turn on the gas switch。
2. Closing the carburetor choke, namely place the choke handle in the engine OFF position.
3. Press and hold the enrichment button (B) on the side of the carburetor gas valve for 2-3 seconds to release.
4. Turn on the engine stop switch to the engine ON position.
5. Gently pull the rope of the engine starter until you feel a large resistance and pull it out.
6. If the fully closed choke door cannot be started by pulling 2 times, please open the choke door handle to 1/3 gear and start again
7. When the engine starts, slowly open the carburetor choke, and the handle is in the engine ON position

Oil Start:
1. Turn on the fuel switch
2. Close the carburetor choke door, and place the choke door handle at the 0FF position of the engine.
3. Turn on the engine stop switch as to the engine ON position.
4. Gently pull the rope of the engine starter until you feel a large resistance and pull it out.
5. When the engine starts, slowly open the carburetor choke, and the handle is at the engine ON position.

Oil and gas conversion when the engine is running:
1. Convert oil to gas:
A. Unload the engine to no load
B. Turn off the fuel switch
C. Open the oil drain switch (C) on the gas valve of the carburetor, drain the fuel in the carburetor float chamber through the oil drain pipe (D), and then close the oil drain switch (C)
D. When you hear a noise from unstable engine operation, turn on the gas switch and the engine will slowly run normally.

2. Convert gas to oil:
A. Unload the engine to no load
B. Turn on the fuel switch
C. When you hear a noise from unstable engine operation, turn off the gas switch and the engine will slowly run normally.

Note:
-When the carburetor is not used for a long time or only uses oil, please cover the gas valve intake pipe sealing cap (A).
-When the carburetor is not used for a long time, please turn on the oil drain switch (C) of the float chamber to clean the oil in the float chamber to avoid affecting the use of the carburetor.

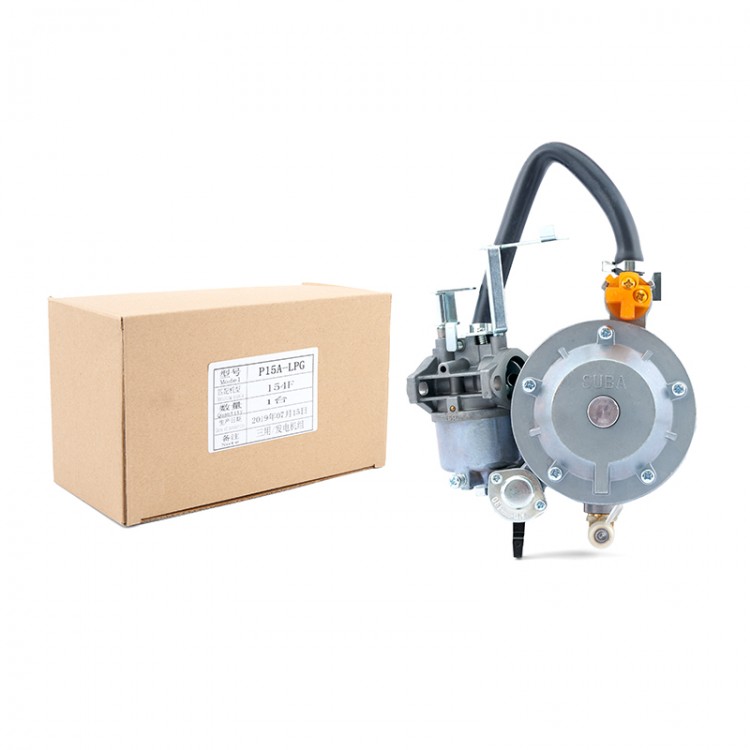

Package List:
1 x Carburetor Kit
