Maxgeek HVR-11 Diesel Generator AVR Genset Automatic Voltage Regulator Stabilizer for LINZ Generator
Description:
The electronic regulator HVR-11 is made with state-of-the-art electronic components which permit to obtain, with reduced dimensions, all needed functions to control any type of alternator.
Specification:
Voltage supply (from auxiliary winding, output voltage or PMG): 40V AC~270V AC
Frequency range: 12Hz~72Hz
Sensing of voltage with true RMS or average measurement: 70~280V AC
Maximum continuous output current: 4A DC
Precision of voltage regulation: ±1% from no-load to normal load in static condition
Factor and for frequency variations ranging: from -5% to +20% of the nominal vaule
Transient power drops and over voltage: within ±15%
Features:
-Voltage static error within the limit of ±1%.
-Wide stability control regulation to guarantee the most suitable dynamic response to any situation (type of drive motor, size of alternator).
-Adjustable protection from low frequency operation.
-Adjustable protection from overexciting caused by anomalous loads.
Package List:
1 x Automatic Voltage Regulator

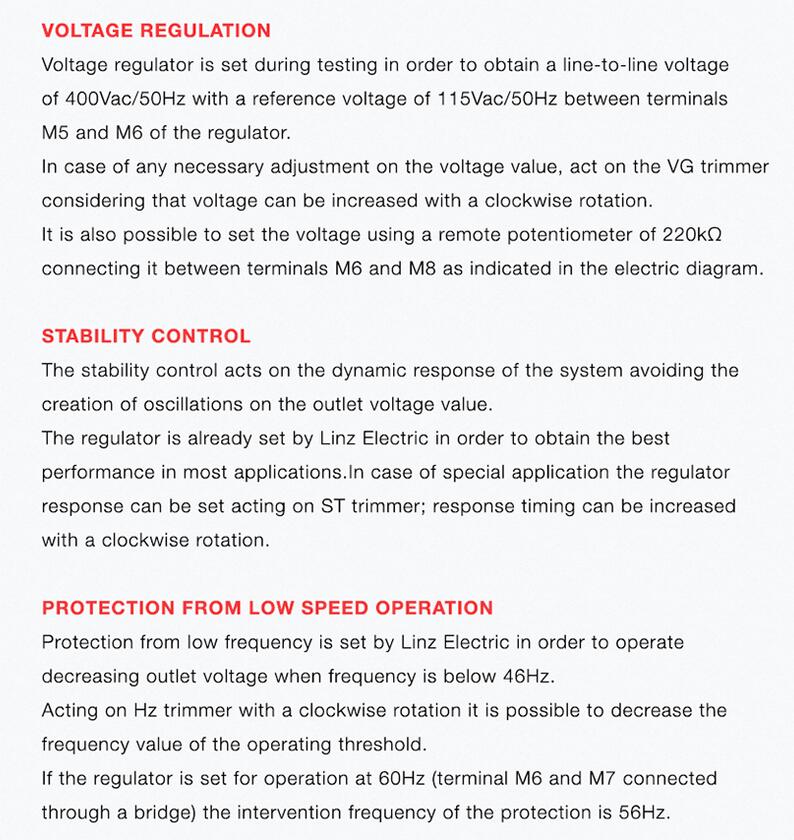

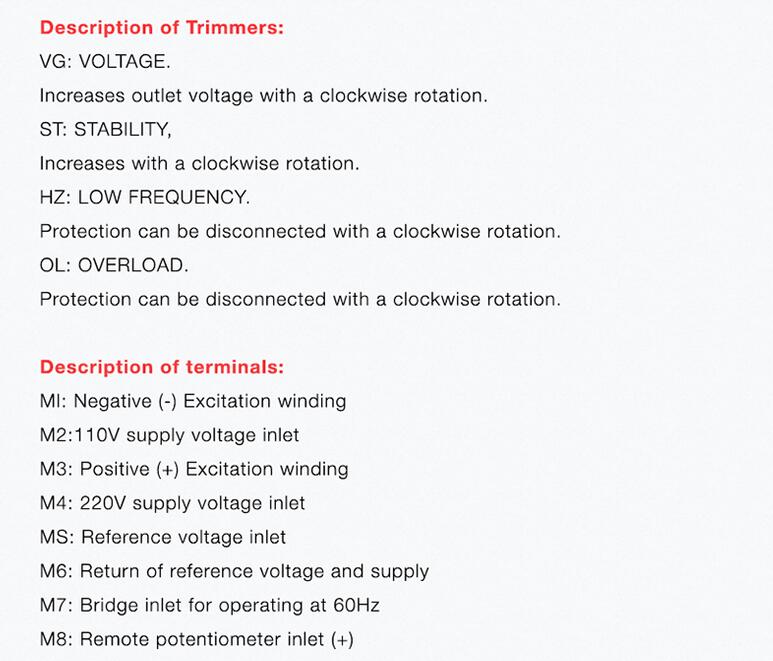

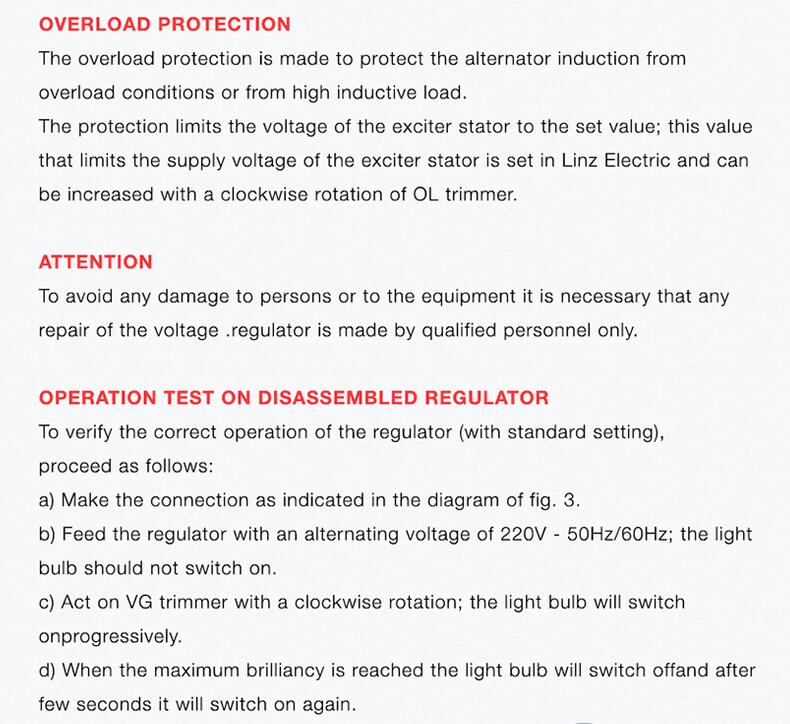

Functions:

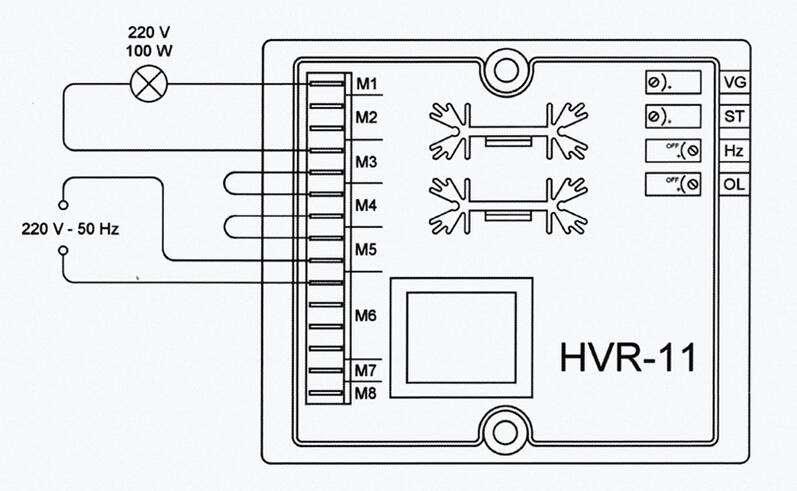

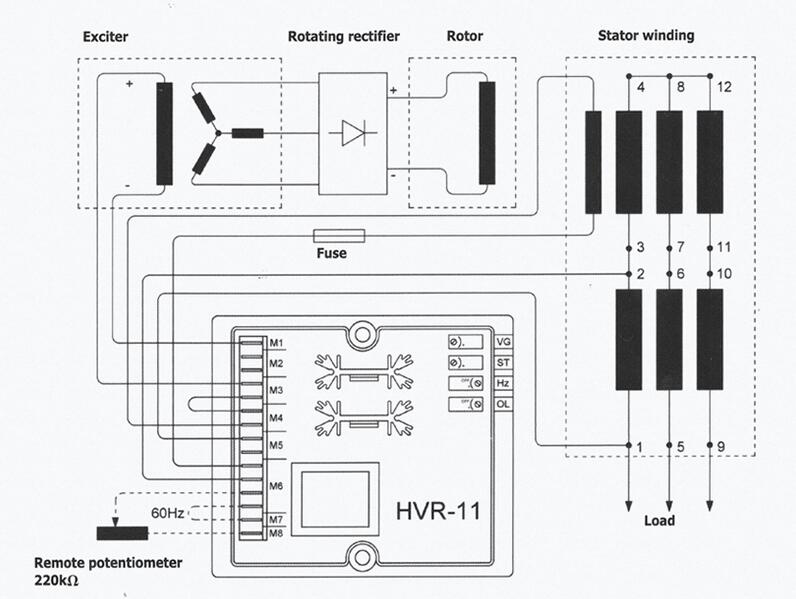

Wiring:
