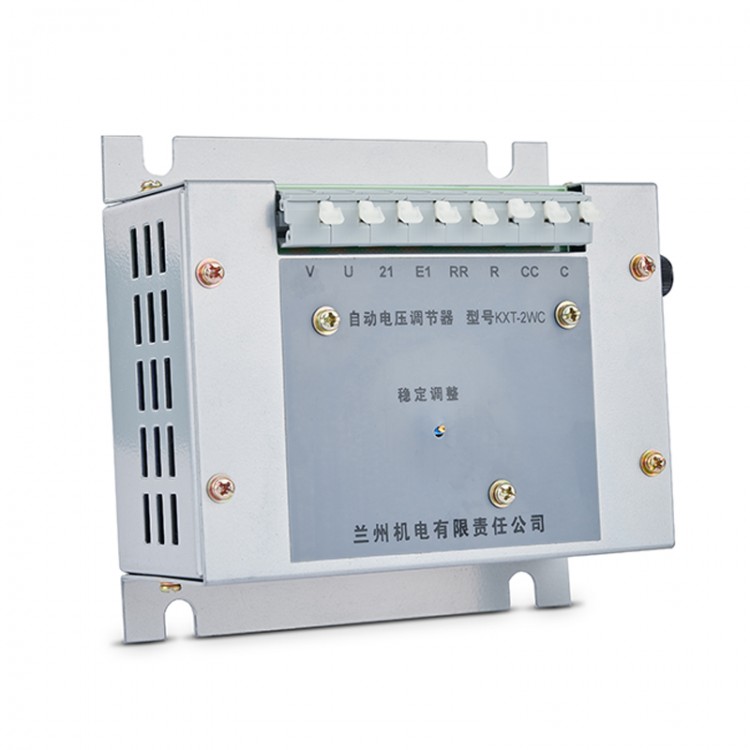

Maxgeek KXT-2WC Diesel Generator AVR Genset Automatic Voltage Regulator Alternator Voltage Stabilizer
Specification:
Sensing input voltage: 400V AC, 1 phase 2 wire
Frequency: 50-60Hz nominal
Exciting voltage: 20-100V DC
Partial current: 8A
Regulation: +/-1% RMS with 4% engine governing
External voltage adjustment: +/-10% with 1k ohm 1 watt trimmer
Features:
KXT-2WC automatic voltage regulator apply to the exchange of three phase brushless synchronous generator.
1. The main technical data rated voltage:
400V-10A maximum allowable diversion E1-21 the maximum allowable peak voltage 300V, the maximum allowed average voltage 133V
2. The main technical indicators steady-state voltage regulation rate ≤1%, no-load voltage setting range: 95%, rated voltage: 105%
3. Transient voltage rated by sudden sudden load changes in generator terminal voltage depends primarily on the structural parameters of the electromagnetic generator.
4. Generally (80 %-120 %) Un inside, voltage stabilization time does not exceed 1S.
5. The use of the environment
-Altitude: not exceeding 2000m
-Ambient temperature: -20℃~55℃
-Install size: 17.5*4*7cm
Package List:
1 x Automatic Voltage Regulator
