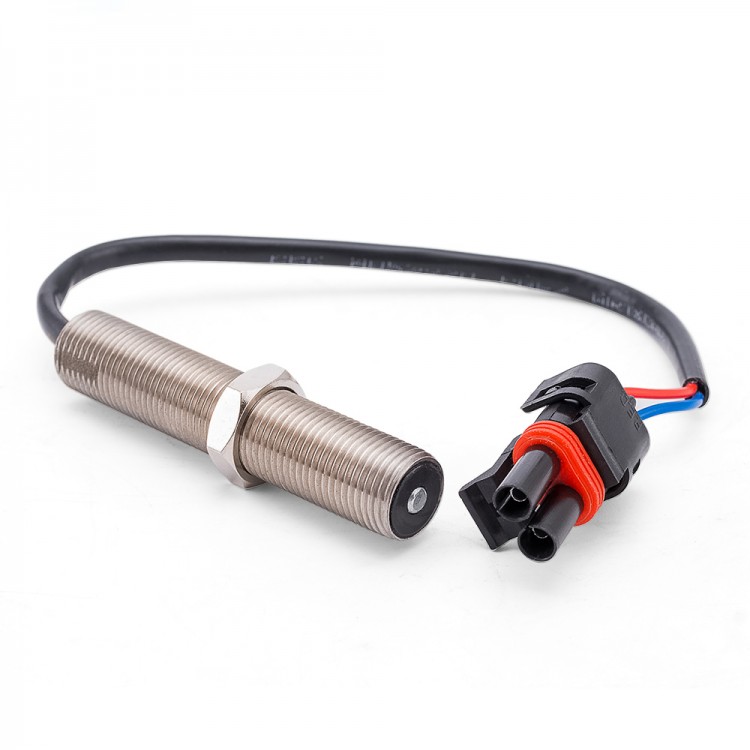

Maxgeek Magnetic Pickup MPU 3655944 Speed Sensor Kit 3/4-16UNF-100MM Diesel Generator Parts

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.37
  • Price in reward points: 324 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.72 $31.08 $30.10 $28.81 Contact US
Quantity:

Maxgeek Magnetic Pickup MPU 3655944 Speed Sensor Kit 3/4-16UNF-100MM Diesel Generator Parts

Specification:

Measure Range: 50-5000Hz
Inductance: 142MHz ±25%
Thread Size: 3/4-16 UNF-100mm
Proximity to Gear Teeth: 0.028 inch Min. ~0.042 inch Max. (approximately 1/2 to 3/4
turn)
Temperature Range: -55℃ to 105 ℃
Output at Cranking Speed: 1.5V AC minimum
Maximum Output: 30V AC
Coil Resistance: 300 ohms maximum

Package List:
1 x Speed Sensor Kit
