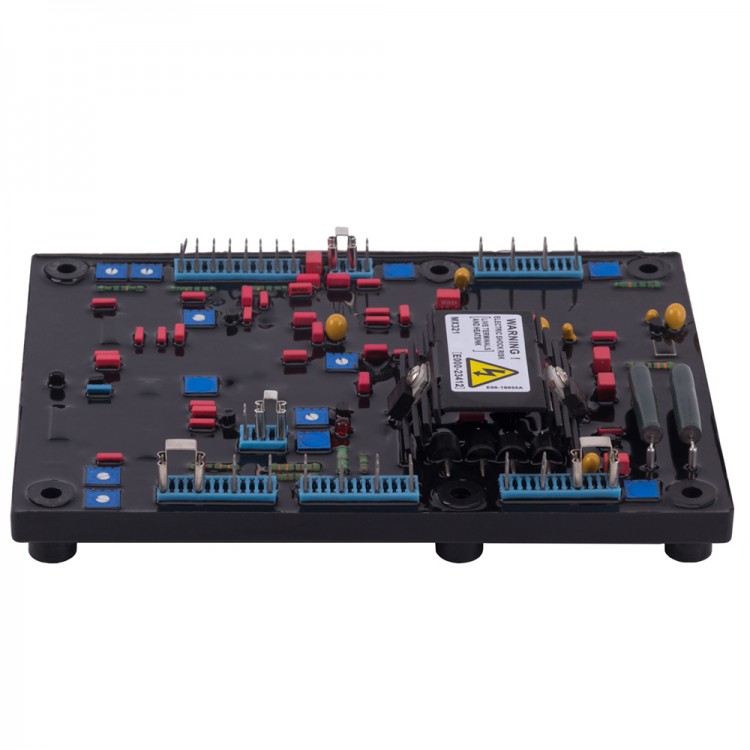

Maxgeek MX321 Diesel Generator AVR Permanent Magnet Automatic Voltage Regulator for Brushless Genset
Description:
-MX321 is a three phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.Excitation power is derived from a three phased permanent magnet generator(PMG),to isolate the AVR control circuits from the effects of nonlinear loads and to reduce radio frequency interference on the generator terminals. Sustained generator short circuit current is another feature of the PMG system.
-The AVR sense the voltage in the main generator winding and controls the excitation to maintain the generator output voltage with the specified limits,compensating for load,speed,temperature and power factor of the generator.Three phase RMS sensing is employed for superior voltage regulation.
-3 phase sensing permanent magnet generator type voltage regulator is a compatible replacement for MX321 and 305-0823.
-Adjustable soft start circuitry is included to provide a smooth controlled build up of generator output voltage.
Features:
-Voltage regulation < ±0.5% RMS
-For use in parallel operation
-RAMP, DIP, DWELL, DROOP, RMS, U/F, over voltage & over excitation adjustment functions
-Over exc. / over volt. & UFRO LED indicators
-Current limiting function
Package List:
1 x Voltage Regulator
