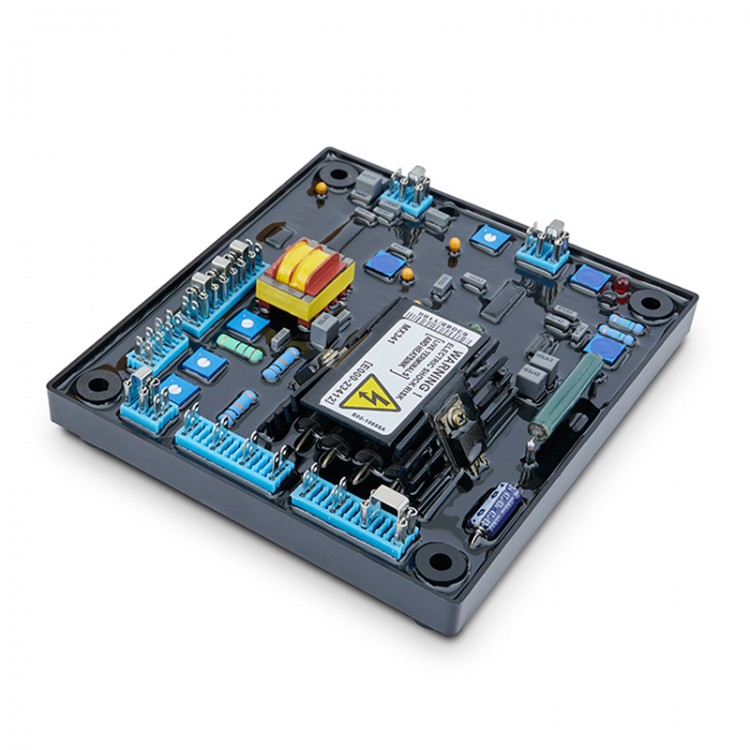

Maxgeek MX341 Generator AVR Automatic Voltage Regulator Brushless Alternator Excitation Voltage Stabilizer
Description:

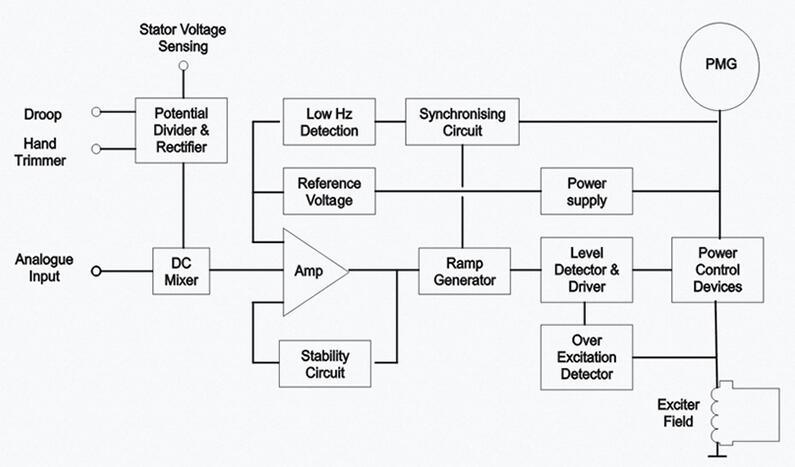

-MX341 is a two phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator. Excitation power is derived from a three-phase permanent magnet generator (PMG), to isolate the AVR control circuits from the effects of non-linear loads and to reduce radio frequency interference on the generator terminals. Sustained generator short circuit current is another feature of the PMG system.
-The AVR senses the voltage in the main generator winding and controls the power fed to the exciter stator and hence the main rotor to maintain the generator output voltage within the specified limits, compensating for load, speed, temperature and power factor of the generator. Three phase RMS sensing is employed for superior voltage regulation.
Specification:
Sensing Input:
Voltage: 196-264V AC max, 1 phase 2 wire
Frequency: 50-60Hz nominal
Power Input (PMG):
Voltage: 140-220V AC max, 3 phase 3 wire
Current: 3A/phase
Frequency: 100-120Hz nominal
Output:
Voltage: Max 120V DC
Current: continuous 2.7A, intermittent 6A for 10 secs
Resistance: 15 ohms minimum
Package List:
1 x Generator Voltage Regulator

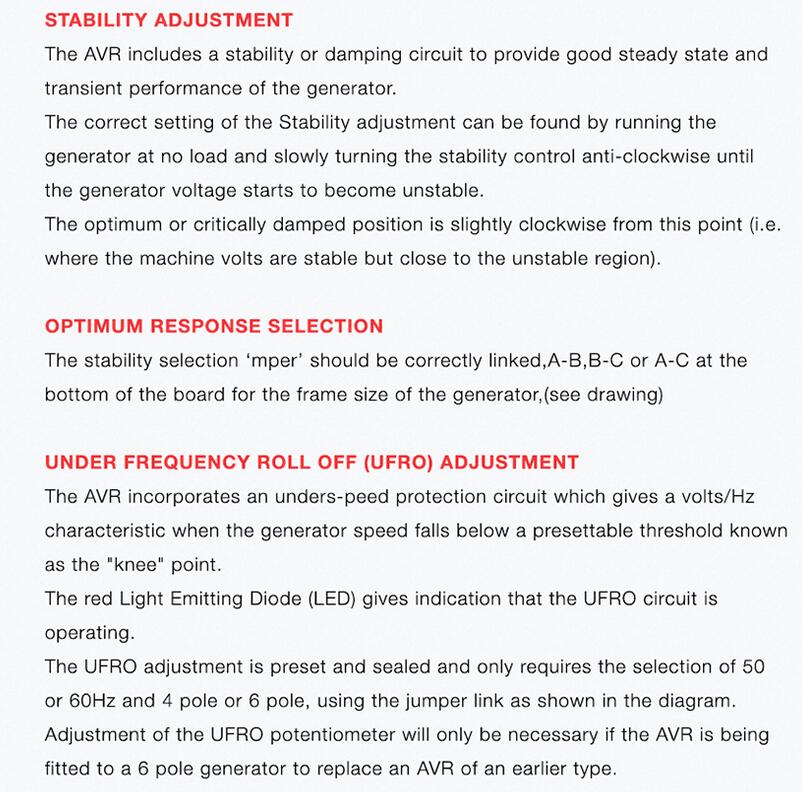

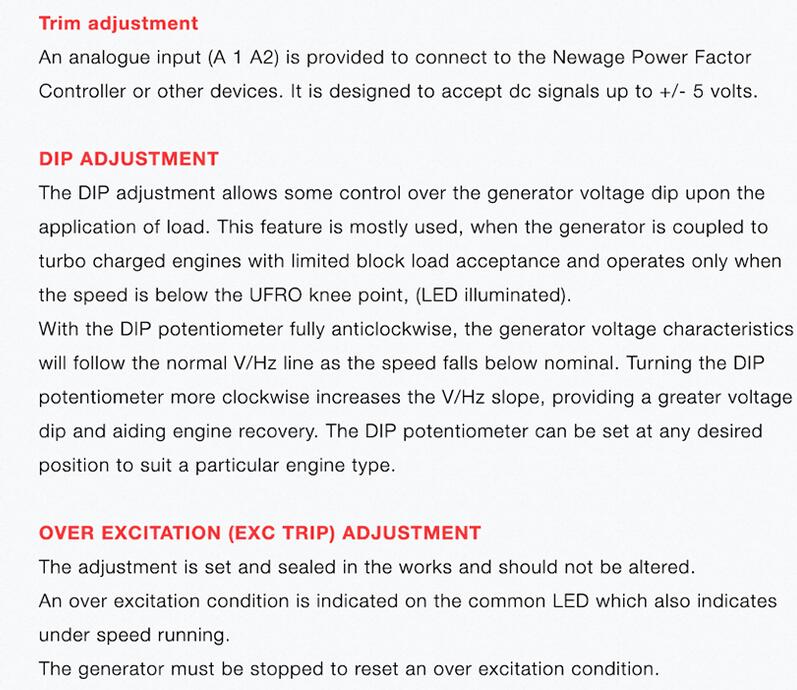

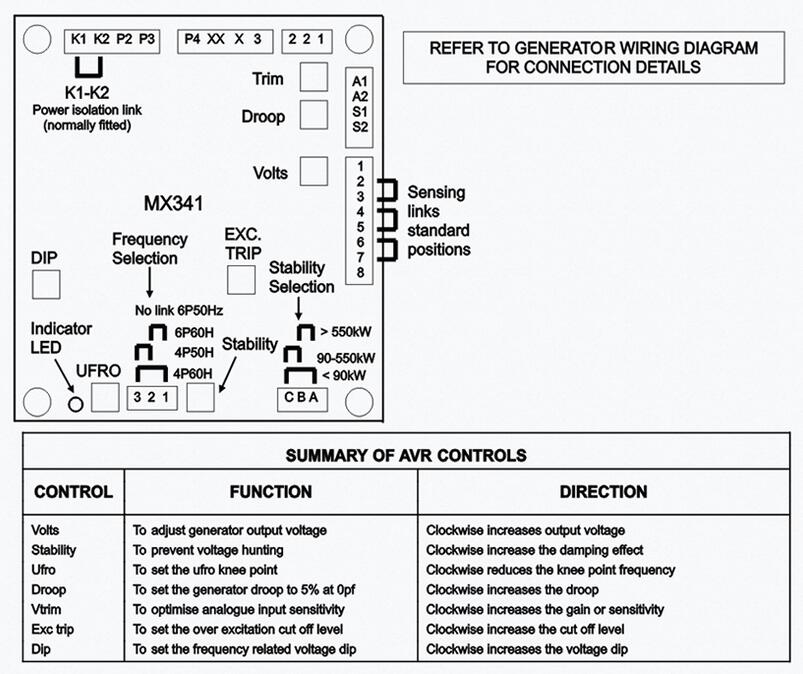

Adjustment:
