Description:
-The automatic voltage regulator is a compact, high performance encapsulated unit. The AVR incorporates latest technology and efficient semiconductor to achieve a high degree of miniaturization when applied to 30 and 10 AC brushless generator within its input and output limits, the unit offers excellent reliability. The AVR supplies DC excitation to the exciter field of a brushless generator to keep the terminal voltage within close limits from NO-LOAD to FULL LOAD.
-The recovery time on sudden loading is likely to be around 0.5 sec. to recover 98% of the rated voltage. Please note that the transient performance like voltage dip and recovery time are mainly decided by the generator and exciter design parameters. Best performance from the regulator can be obtained by keeping full load excitation around 60V DC.

Specification:
Sensing input:
Voltage: 240VAC±10% for 1 phase, 380V up to 480VAC±10 % for 3phase, 2 line sensing AVR true average of the line to line waveform. Use resistor (SMD) network for trouble free sensing control of sensed voltage I regulation

Input power:
Voltage: 415V, 3 phase and 240V, 1phase
Frequency: 50/60Hz

Output power:
Voltage: 240VAC, input 105VDC
Current: 6A DC, continuous 8A for 30sec. (when the resistance allows)

Operating temperature: -20℃ to +70℃
Storage temperature: -40℃ to + 80℃

Voltage adjustment: 10% of rated voltage
Stability adjustment: adjustable to get steady state Stability good transient response
Remote voltage adjustment: to get 10 % of set terminal voltage (with 212.5, 1 watt pot)
Droop for parallel operation: 4% droop for 5A from U phase
Auxiliary input A1&A2: ≤4.5V DC will give change in terminal voltage by 10%
Under frequency roll-off adjustment: 50Hz when below 46Hz; 60Hz when below 56Hz
Voltage Build up: 2V (L-N)
Voltage regulation: ≤0.8% at AVR terminals
Thermal drift: ≤1% for 300℃ change in temperature
Response time: less than 50 milliseconds
Closed loop response: typically 0.5sec to recover to 98% of the set voltage for a welding pressure ratio of 1:2
Sense loss protection: voltage should collapse, when the sensing circuit is malfunctioning
Over excitation protection: 10V DC to 85V DC, set point: 60 V DC
Fuse for protection: 6A, 240V AC
All potentiometer: multi-turn except droop pot (droop-single turn)
Sealing of potentiometer: except V-trim pot all pots are sealed
Frequency roll off indicator: LED provided (UF)
Sense loss indicator: LED provided (SL24)
Over excitation indicator: LED provided (OE)
Protection on the devices: protect this device from surge
Potting/encapsulation details: the components on the AVR should be completely encapsulated with suitable PU resin compound to absorb transients vibrations while in operation
Excitation details of alternator: (typical)
Excitation voltage: 40 to 50 Volts
Excitation current: 2.5 to 5.0 Amps

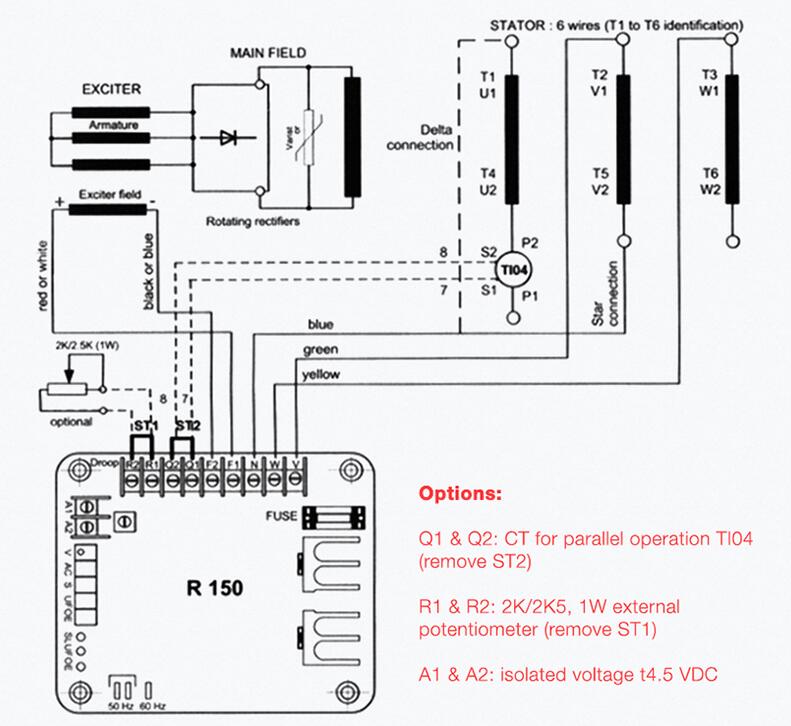

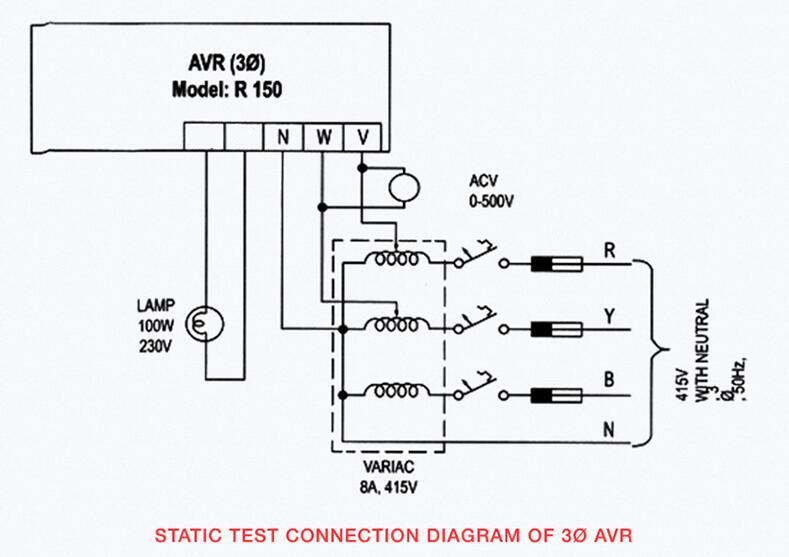

AVR testing: burn test, thermal cycling test, static test, voltage variation check, build up test, FRO check, stability check, QDC check, remote voltage check, DC input voltage check

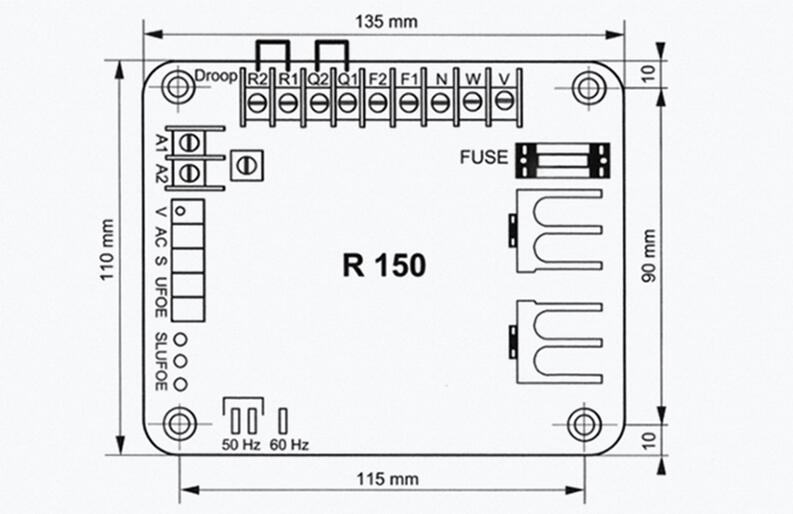

Dimension:
Overall: 135 x 110 x 47.5mm
Mounting: 115 x 90mm
Mounting hole diameter: 9mm

Package List:
1 x Generator Voltage Regulator
