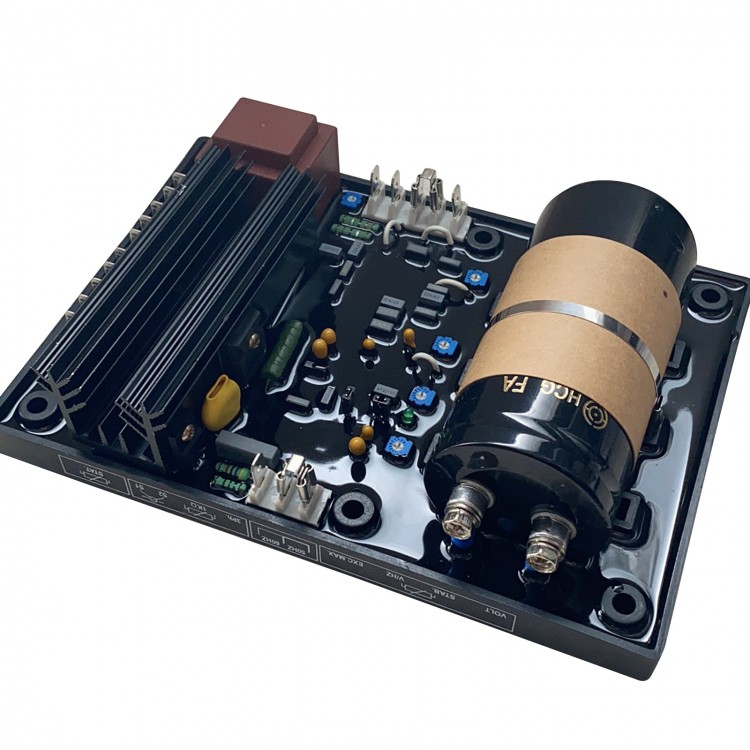

Maxgeek R449 Generator Automatic Voltage Regulator Alternator AVR Excitation Voltage Stabilizer
Description:

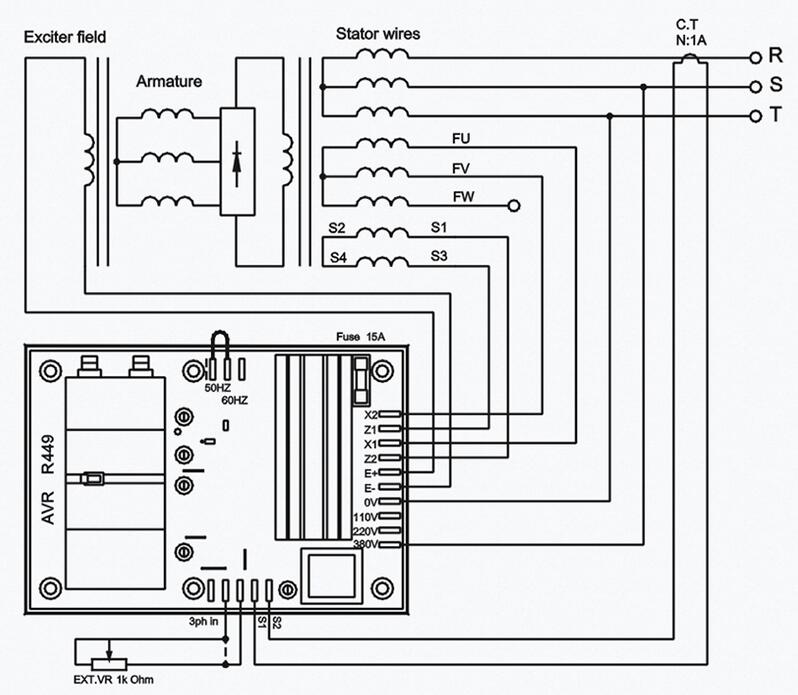

Diesel generator parts AVR voltage regulator R449 is a half-wave phase controlled thyristor type automatic voltage regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/-1.5%.

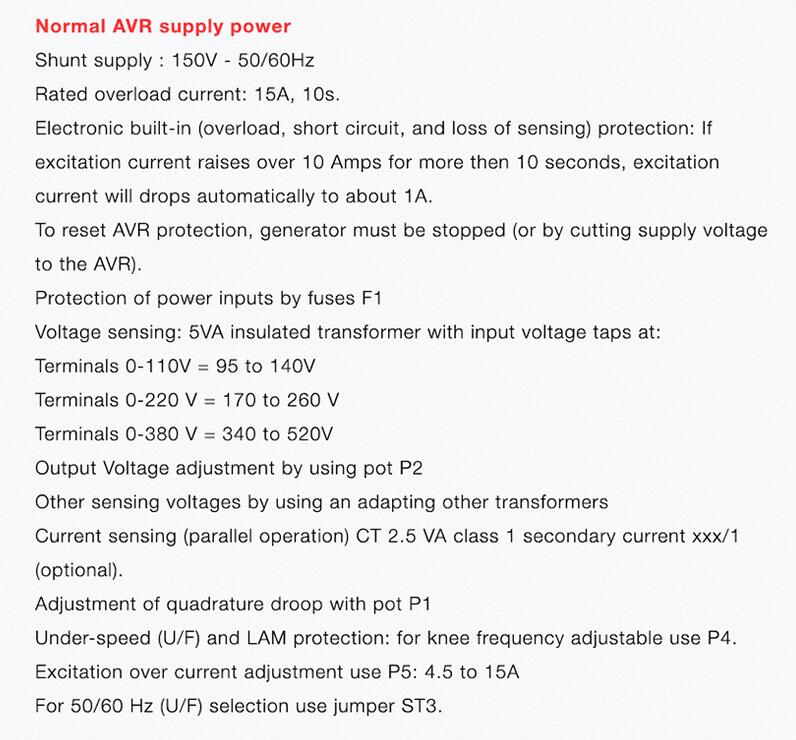

Specification:
Sensing voltage: terminal 0-110V=95-140V; terminal 0-220V=170-260V; terminal 0-380V=340-520V
Frequency: 50-60Hz
Voltage input: 40-50VAC, 3phase
Output voltage: max 160VDC at 12VAC input
Current: continuous 8A DC, intermittent 10A for 10 secs
Resistance: 15Ω minimum
Regulation: +/-1%
Voltage build-up: residual voltage at AVR terminal ≥5VDC

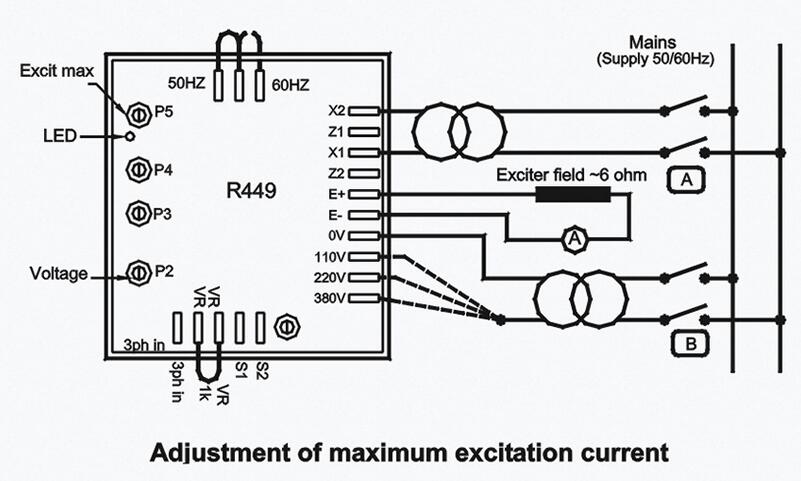

External voltage adjustment: +/-10% with 1k ohm 1 watt trimmer
Package List:
1 x Generator Voltage Regulator
