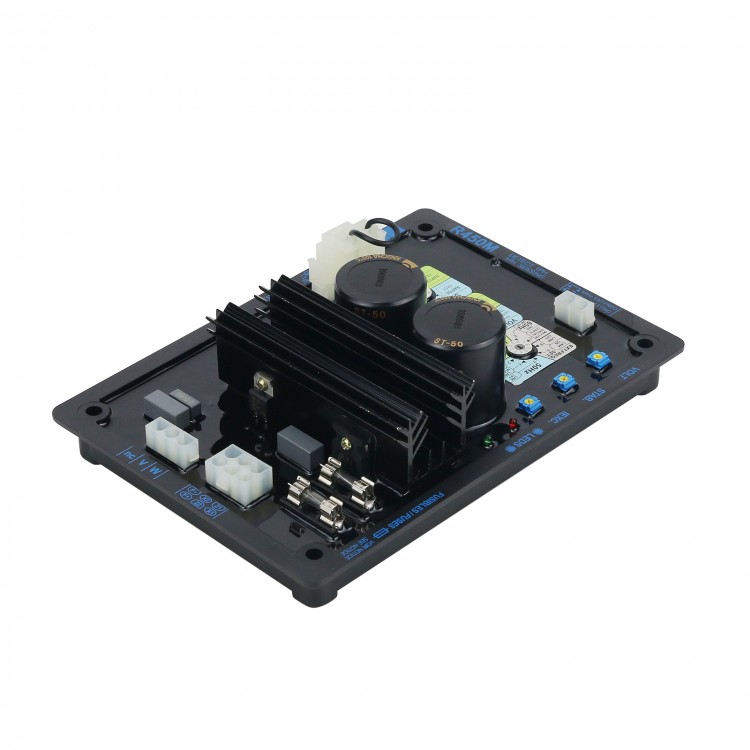

Maxgeek R450M Generator AVR Automatic Voltage Regulator Genset Voltage Stabilizer Board for Leroy Somer
Description:
The R450 series AVR is supplied in a casing designed to be mounted on a panel with dampers. It is powered by two auxiliary windings which are independent of the voltage equal circuit. The power supply voltage is rectified and filtered before being used by the AVR monitoring transistor With PMG excitation, a permanent magnet generator (PMG) added to the alternator supplies the AVR with voltage. This R450M is single-phase sensing.
Specification:
Voltage: 230±2V
Voltage steady range: ±1V
starting excitation voltage: ≥1.5V
Loading capacity: with 110% loading, the regulator can work normally
Output voltage steady on hot and cool condition: ≤2V
Temperature float on output voltage: ≤2V
Features:
-Voltage regulation +/-0.5% at steady state and constant speed.
-Control by transistor means that the regulation quality is independent of applied load.
-Phase to phase voltage sensing.
-Suitable for high levels of vibration and harsh environments.

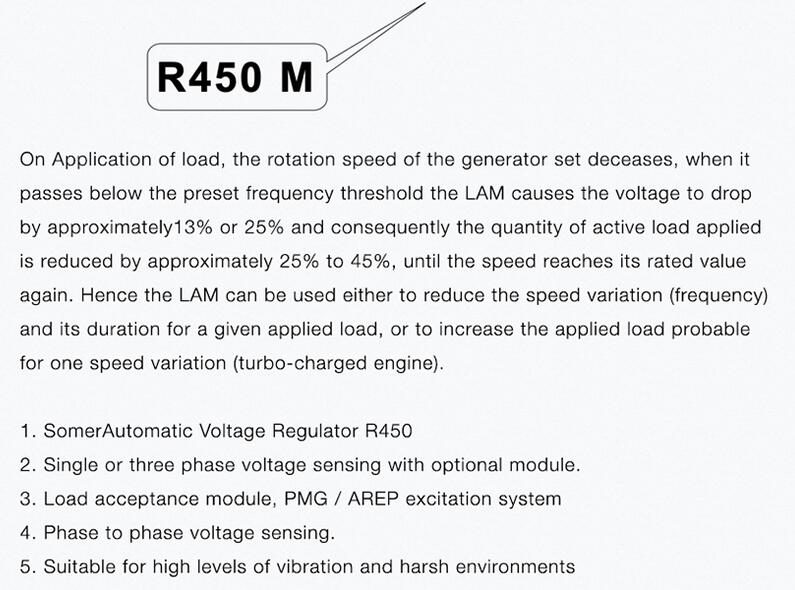

-Integrated "LAM" and "auto adaptative LAM" system to cope with load impacts applied to the engine.
-AREP or PMG excitation with normal or fast response.
-Single or three phase voltage sensing with optional module.
-Rotating switch facilitating selection.
Package List:
1 x Generator Voltage Regulator
