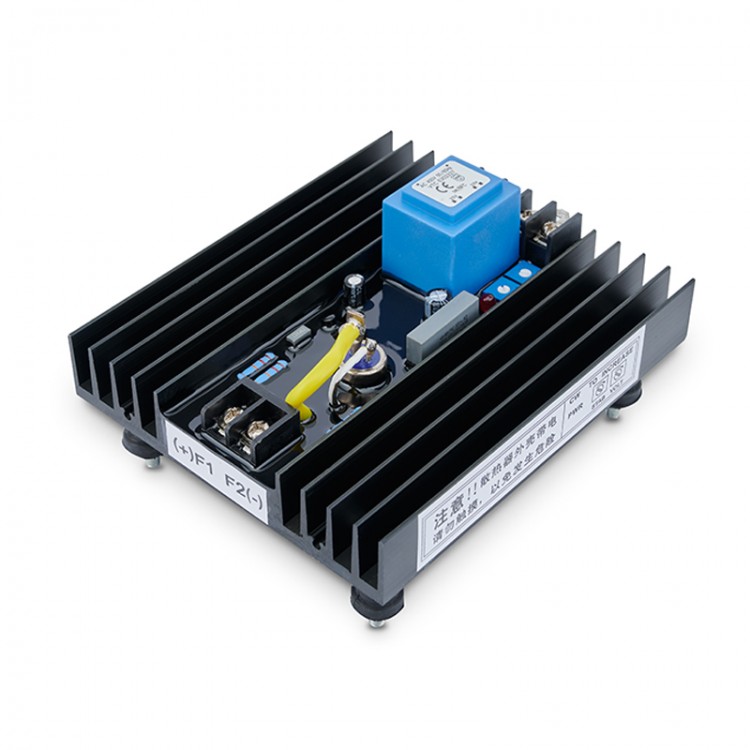

Maxgeek STL-F-3 Generator AVR Automatic Voltage Regulator Brush Alternator Voltage Stabilizer 60KVA

Availability: In stock, usually dispatched in 1 business day

  • Price:$35.54
  • Price in reward points: 355 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $34.83 $34.12 $33.05 $31.63 Contact US
Quantity:

Maxgeek STL-F-3 Generator AVR Automatic Voltage Regulator Brush Alternator Voltage Stabilizer 60KVA

Description:

STL-F-3 is a half-wave phase controlled thyristor type automatic voltage regulator and forms part of the excitation system for a brushless generator. In addition regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR.

Specification:
Voltage: 400V
Frequency: 50~60Hz
Excitation voltage: 20-100V
Excitation current: 25~50A
Sensing input: voltage: 220/400 VAC, 1 phase 2 wire; frequency: 50~60Hz
Regulation: +/-1.5% RMS with 4% engine governing
External voltage adjustment: +/-10% with 2k ohm 1 watt trimmer

Package List:
1 x Automatic Voltage Regulator
